Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | LXN_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 4–225； UniProt 1–222 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1wnh |
| Deposition date deposition_date | 2004-08-04 |
| Structure title title | Crystal structure of mouse Latexin (tissue carboxypeptidase inhibitor) |
| Keywords keywords | bi-cystatin fold, cis-proline, HYDROLASE INHIBITOR; HYDROLASE INHIBITOR |
| Experimental Method method | X-RAY DIFFRACTION |

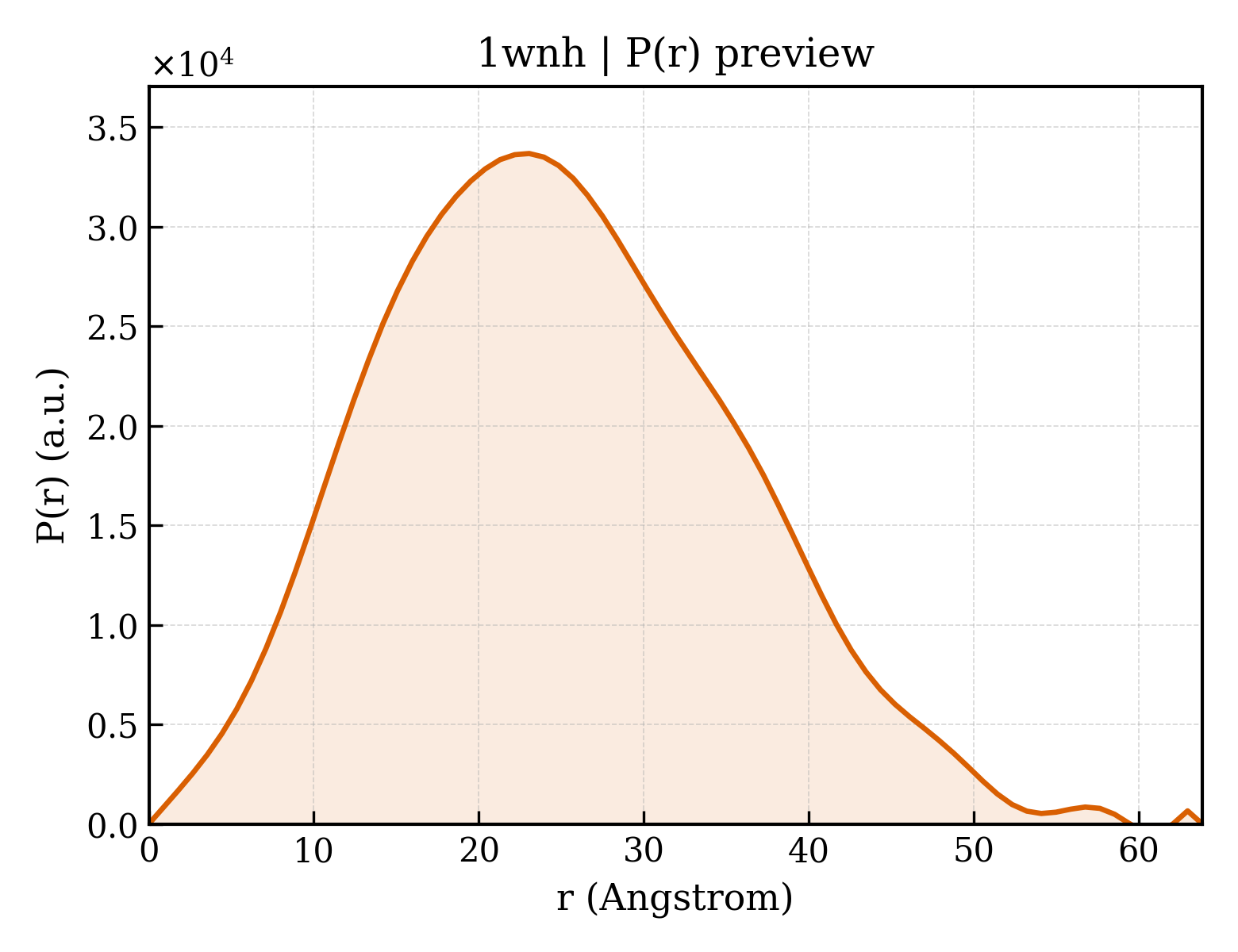

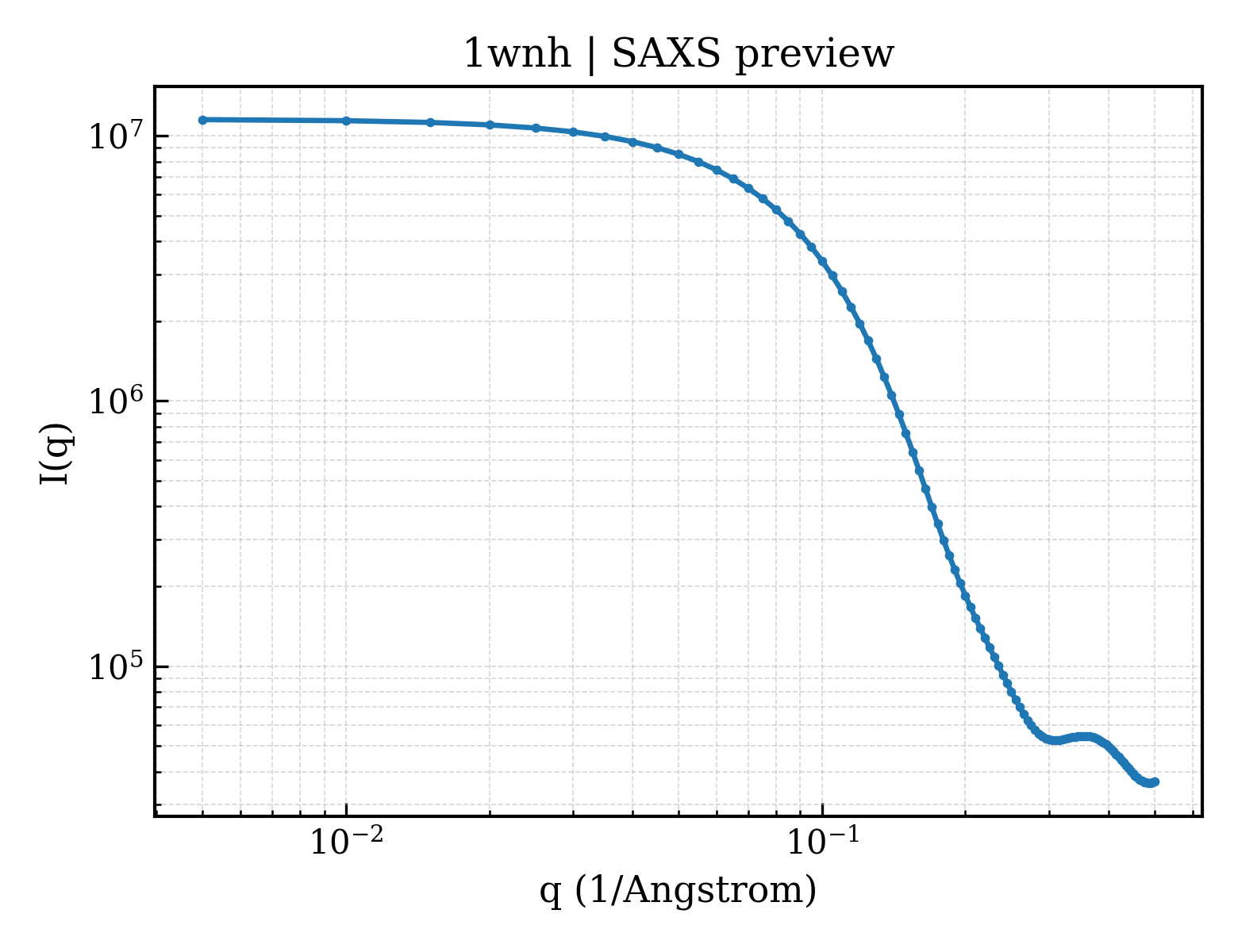

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 19.09 Å |
| Rg (electron density) | 18.03 Å |
| Total Rg | 19.02 Å |
| Atom count | 1781 |
| Residues | 220 |
| Excluded volume | 31578 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1wnha1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.17 — Cystatin-like |
| Superfamily Superfamily superfamily | d.17.1 — Cystatin/monellin |
| Family Family family | d.17.1.0 — automated matches |
| Domain ID domain_id | d1wnha2 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.17 — Cystatin-like |
| Superfamily Superfamily superfamily | d.17.1 — Cystatin/monellin |
| Family Family family | d.17.1.5 — Latexin-like |
| Domain ID domain_id | d1wnha3 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1wnhA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 450 — Nuclear Transport Factor 2; Chain: A, |
| Homologous superfamily homologous superfamily | 10 — |
| Domain ID domain_id | 1wnhA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 450 — Nuclear Transport Factor 2; Chain: A, |
| Homologous superfamily homologous superfamily | 10 — |
