1woi

Crystal Structure of Agmatinase Reveals Structural Conservation and Inhibition Mechanism of the Ureohydrolase Superfamily

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

agmatinase

Deinococcus radiodurans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MANGANESE (II) ION × 12 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9RZ04_DEIRA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–304； UniProt 1–304 Author chain B； PDBConstruct 1–304； UniProt 1–304 Author chain C； PDBConstruct 1–304； UniProt 1–304 Author chain D； PDBConstruct 1–304； UniProt 1–304 Author chain E； PDBConstruct 1–304； UniProt 1–304 Author chain F； PDBConstruct 1–304； UniProt 1–304

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1woi
Deposition date deposition_date	2004-08-18
Structure title title	Crystal Structure of Agmatinase Reveals Structural Conservation and Inhibition Mechanism of the Ureohydrolase Superfamily
Keywords keywords	alpha/beta fold, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1woi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

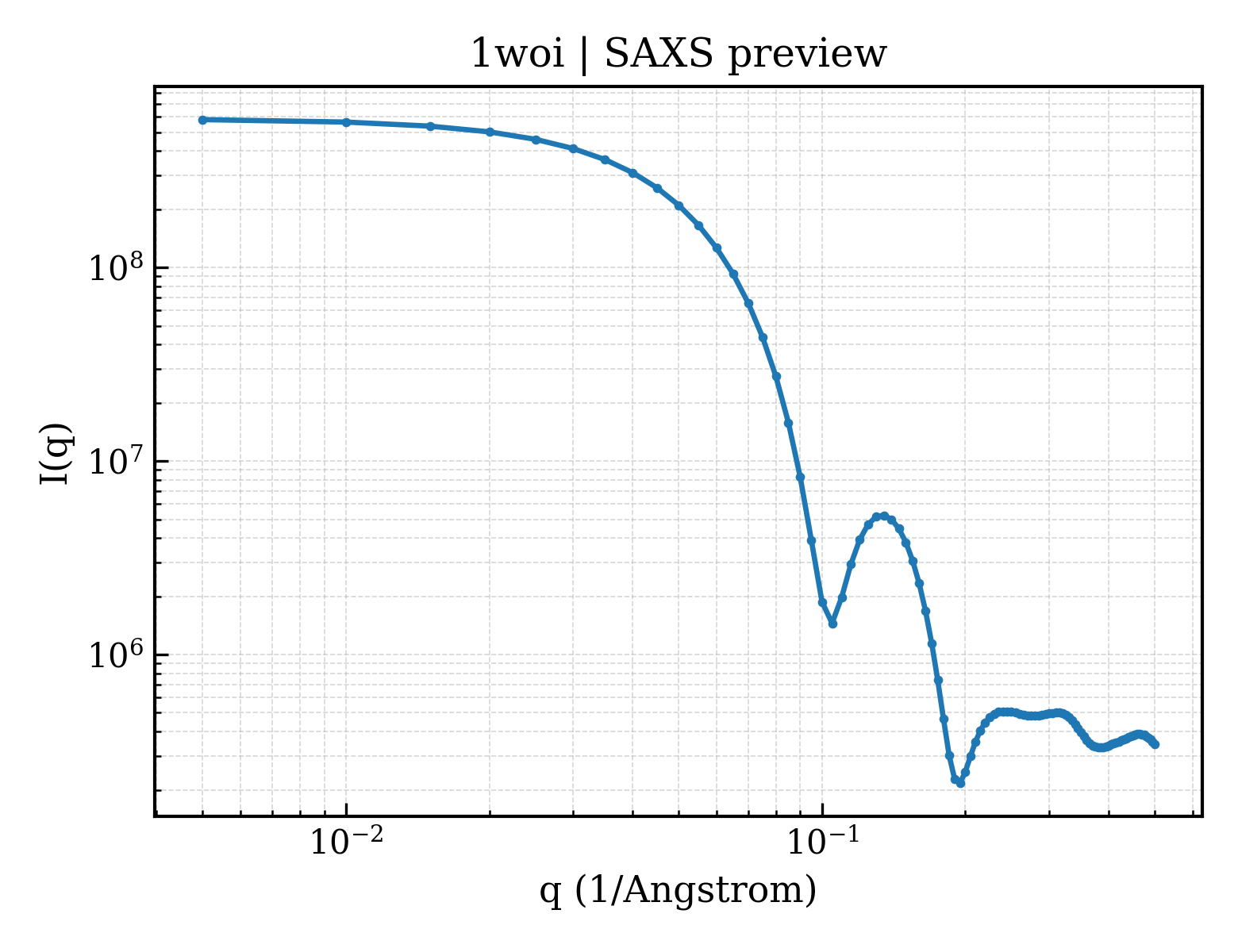

1woi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1woi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.19 Å
Rg (electron density)	33.00 Å
Total Rg	33.63 Å
Atom count	13733
Residues	1818
Excluded volume	243650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1woi__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	agmatinase
Molecular weight formula_weight	32670.1 kDa
EC 编号 ec_number	3.5.3.11
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	14401

MSGPAHLPYGGIPTFARAPLVQPDGDWQADVAALGVPFDIALGFRPGARFAPRALREASLRSVPPFTGLDGKTRLQGVTFADAGDVILPSLEPQLAHDRITEAARQVRGRCRVPVFLGGDHSVSYPLLRAFADVPDLHVVQLDAHLDFTDTRNDTKWSNSSPFRRACEALPNLVHITTVGLRGLRFDPEAVAAARARGHTIIPMDDVTADLAGVLAQLPRGQNVYFSVDVDGFDPAVIPGTSSPEPDGLTYAQGMKILAAAAANNTVVGLDLVELAPNLDPTGRSELLMARLVMETLCEVFDHVL

Source Source

Source organism organism	Deinococcus radiodurans
NCBI taxonomy ID ncbi_taxonomy_id	1299
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	668

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1woia1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woia2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1woib1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woib2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1woic1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woic2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1woid1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woid2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1woie1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woie2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1woif1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.1 — Arginase-like amidino hydrolases

Domain ID domain_id	d1woif2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1woiA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1woiB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1woiC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1woiD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1woiE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	1woiF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

▶

Unit-cell length a length_a	81.764 Å
Unit-cell length b length_b	130.759 Å
Unit-cell length c length_c	168.746 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	29.990 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2410
