1wp9

Crystal structure of Pyrococcus furiosus Hef helicase domain

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent RNA helicase, putative

Pyrococcus furiosus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
5	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
6	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8TZH8_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–494； UniProt 2–495 Author chain B； PDBConstruct 1–494； UniProt 2–495 Author chain C； PDBConstruct 1–494； UniProt 2–495 Author chain D； PDBConstruct 1–494； UniProt 2–495 Author chain E； PDBConstruct 1–494； UniProt 2–495 Author chain F； PDBConstruct 1–494； UniProt 2–495

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wp9
Deposition date deposition_date	2004-08-31
Structure title title	Crystal structure of Pyrococcus furiosus Hef helicase domain
Keywords keywords	Helicase, ATPase, DNA replication, DNA repair, DNA recombination, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wp9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wp9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

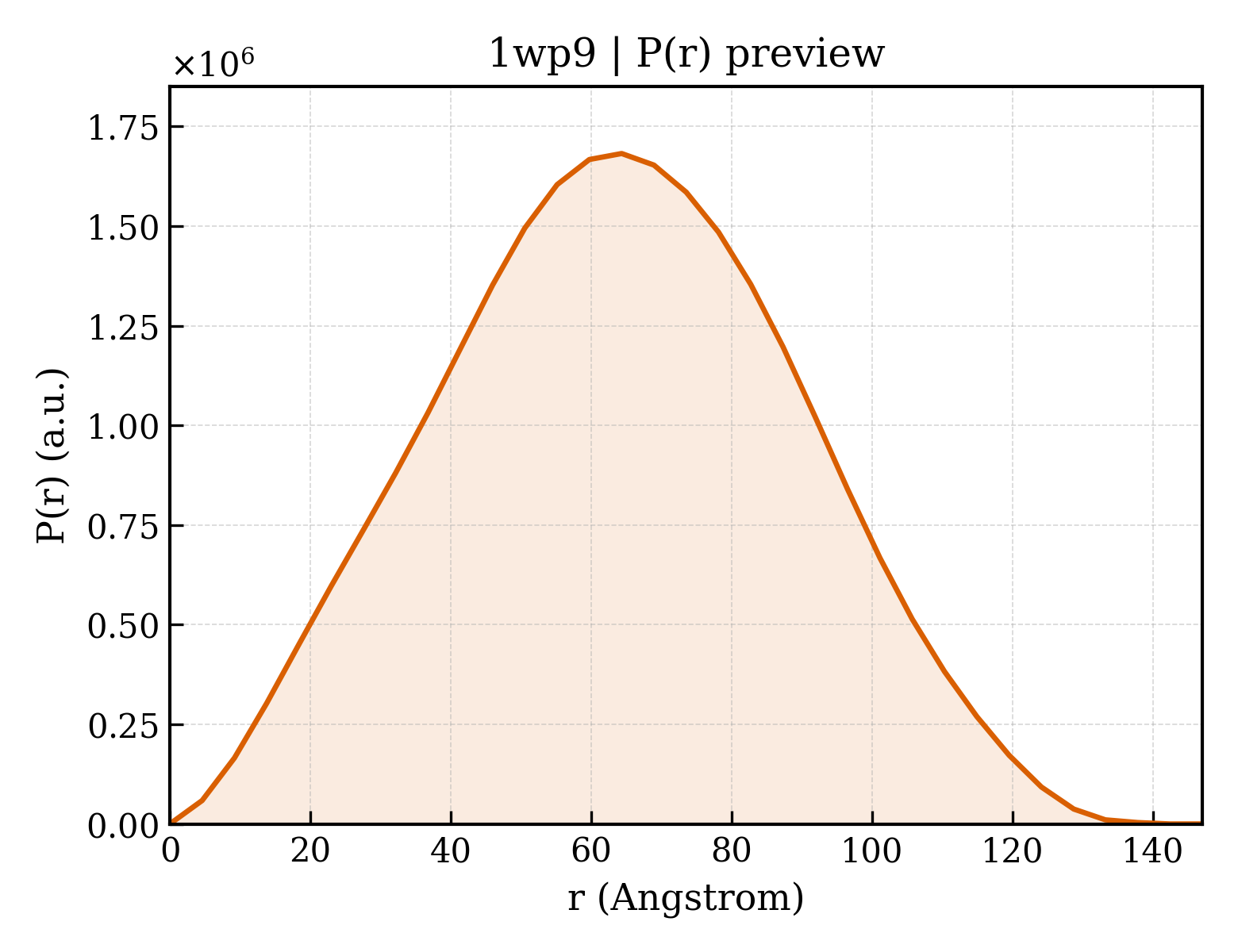

1wp9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.97 Å
Rg (electron density)	28.18 Å
Total Rg	29.00 Å
Atom count	3836
Residues	479
Excluded volume	69256 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wp9__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1wp9__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1wp9__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1wp9__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1wp9__assembly_5__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1wp9__assembly_6__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ATP-dependent RNA helicase, putative
Molecular weight formula_weight	56337.7 kDa
EC 编号 ec_number	3.6.1.3
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	22913

MVLRRDLIQPRIYQEVIYAKCKETNCLIVLPTGLGKTLIAMMIAEYRLTKYGGKVLMLAPTKPLVLQHAESFRRLFNLPPEKIVALTGEKSPEERSKAWARAKVIVATPQTIENDLLAGRISLEDVSLIVFDEAHRAVGNYAYVFIAREYKRQAKNPLVIGLTASPGSTPEKIMEVINNLGIEHIEYRSENSPDVRPYVKGIRFEWVRVDLPEIYKEVRKLLREMLRDALKPLAETGLLESSSPDIPKKEVLRAGQIINEEMAKGNHDLRGLLLYHAMALKLHHAIELLETQGLSALRAYIKKLYEEAKAGSTKASKEIFSDKRMKKAISLLVQAKEIGLDHPKMDKLKEIIREQLQRKQNSKIIVFTNYRETAKKIVNELVKDGIKAKRFVGQASKENDRGLSQREQKLILDEFARGEFNVLVATSVGEEGLDVPEVDLVVFYEPVPSAIRSIQRRGRTGRHMPGRVIILMAKGTRDEAYYWSSRQKEKIMQE

Source Source

Source organism organism	Pyrococcus furiosus
NCBI taxonomy ID ncbi_taxonomy_id	186497
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	49

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1wp9a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9c1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9d1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9e1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9e2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9f1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1wp9f2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

CATH v4.4 (18 domains)

Domain ID domain_id	1wp9A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9A03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

Domain ID domain_id	1wp9B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9B03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

Domain ID domain_id	1wp9C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9C03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

Domain ID domain_id	1wp9D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9D03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

Domain ID domain_id	1wp9E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9E02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9E03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

Domain ID domain_id	1wp9F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9F02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1wp9F03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1320 — phosphoenolpyruvate carboxylase, domain 3
Homologous superfamily homologous superfamily	20 — hef helicase domain

▶

Unit-cell length a length_a	118.498 Å
Unit-cell length b length_b	165.940 Å
Unit-cell length c length_c	119.157 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2570
R_work r_work	0.2570
R_free r_free	0.2860

Crystal structure of Pyrococcus furiosus Hef helicase domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent RNA helicase, putative

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1wp9__assembly_1__model_1

1wp9__assembly_1__model_1 | I(q)

1wp9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)

Crystal structure of Pyrococcus furiosus Hef helicase domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent RNA helicase, putative

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1wp9__assembly_1__model_1

1wp9__assembly_1__model_1 | I(q)

1wp9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)
