1wqa

Crystal Structure of Pyrococcus horikoshii phosphomannomutase/phosphoglucomutase complexed with Mg2+

Method: X-RAY DIFFRACTION D_max: 163.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

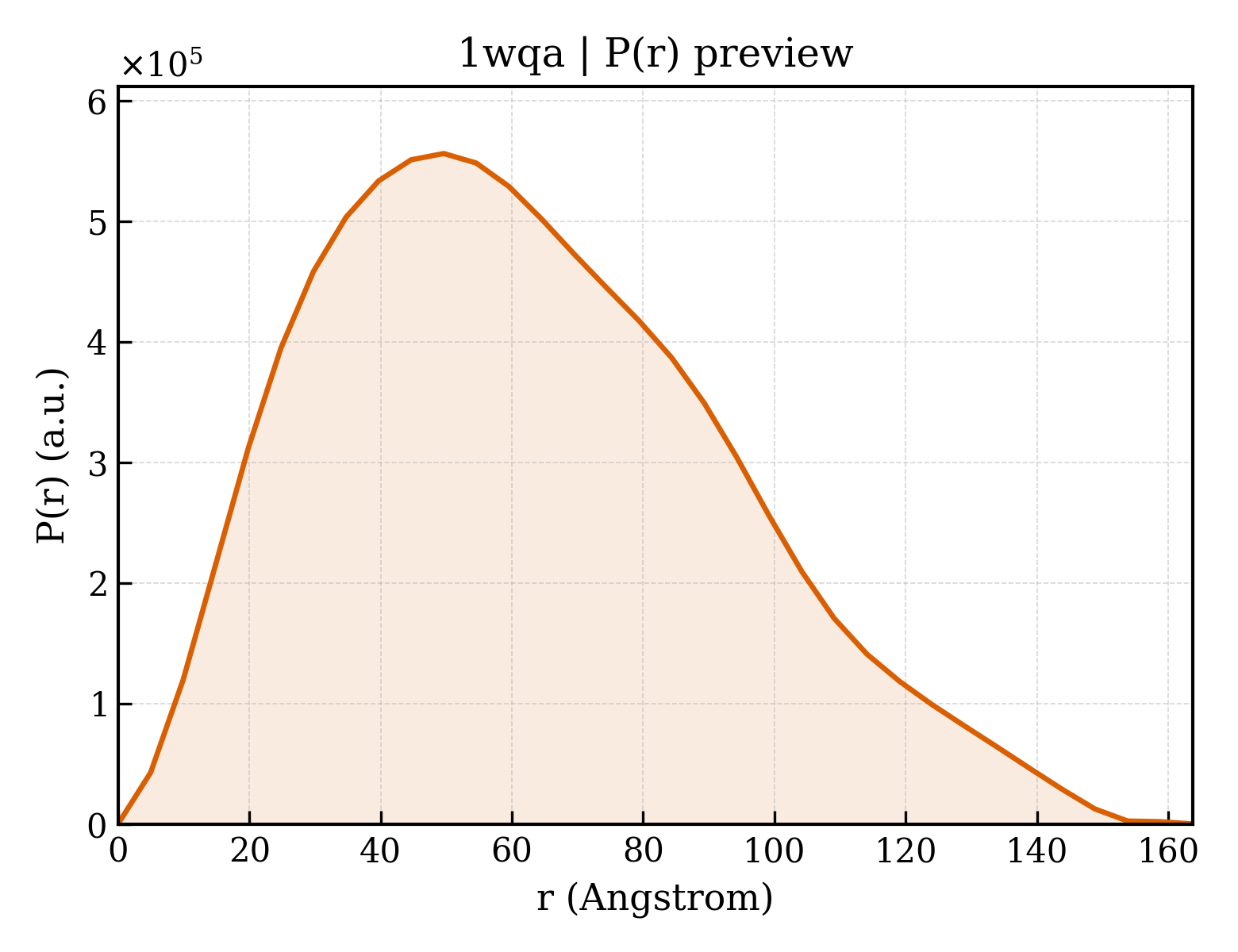

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wqa
沉积日期 deposition_date	2004-09-24
结构标题 title	Crystal Structure of Pyrococcus horikoshii phosphomannomutase/phosphoglucomutase complexed with Mg2+
关键词 keywords	alpha-beta protein, unphosphorylated form, enzyme-metal complex, ISOMERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.38 Å
回转半径 Rg (电子) rg_electron	48.67 Å
零角强度 I(0) i0	552928000.00
分子量 molecular_weight	199560.0 kDa
排除体积 excluded_volume	252290 Å³
包络体积 envelope_volume	349540 Å³
水化壳体积 shell_volume	62449 Å³
包络直径 envelope_diameter	170.2 Å
壳层 Rg shell_rg	49.24 Å
包络 Rg envelope_rg	48.02 Å
形状 Rg shape_rg	48.65 Å
总 Rg total_rg	48.73 Å
总原子数 total_atoms	14052
残基数 n_residues	1820
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	163.7 Å
Rg (实空间) rg_real	48.75 Å
Rg 误差 (实空间) rg_real_error	1.69 Å
I(0) (实空间) i0_real	5.5290e+08
I(0) 误差 (实空间) i0_real_error	1.0830e+07
Rg (倒空间) rg_reciprocal	48.39 Å
I(0) (倒空间) i0_reciprocal	552700000.0000
解质量估计 total_estimate	0.8346
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.6 Å
偏度 Skewness skewness	0.440
峰度 Kurtosis kurtosis	-0.384
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	34220000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.876; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.278

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	phospho-sugar mutase
分子量 formula_weight	49938.3 kDa
EC 编号 ec_number	5.4.2.8
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	14766

MGKLFGTFGVRGIANEKITPEFAMKIGMAFGTLLKREGRKKPLVVVGRDTRVSGEMLKEALISGLLSVGCDVIDVGIAPTPAVQWATKHFNADGGAVITASHNPPEYNGIKLLEPNGMGLKKEREAIVEELFFKEDFDRAKWYEIGEVRREDIIKPYIEAIKSKVDVEAIKKRKPFVVVDTSNGAGSLTLPYLLRELGCKVITVNAQPDGYFPARNPEPNEENLKEFMEIVKALGADFGVAQDGDADRAVFIDENGRFIQGDKTFALVADAVLKEKGGGLLVTTVATSNLLDDIAKKHGAKVMRTKVGDLIVARALYENNGTIGGEENGGVIFPEHVLGRDGAMTVAKVVEIFAKSGKKFSELIDELPKYYQIKTKRHVEGDRHAIVNKVAEMARERGYTVDTTDGAKIIFEDGWVLVRASGTEPIIRIFSEAKSKEKAQEYLNLGIELLEKALS

来源 Source

来源生物 organism	Pyrococcus horikoshii
NCBI 分类编号 ncbi_taxonomy_id	53953
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	714

▼

6. 折叠分类 (SCOP + CATH) 16 domains

CATH v4.4 (16 domains)

结构域编号 domain_id	1wqaA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	50 — Alpha-D-phosphohexomutase, C-terminal domain

结构域编号 domain_id	1wqaB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	50 — Alpha-D-phosphohexomutase, C-terminal domain

结构域编号 domain_id	1wqaC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaC04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	50 — Alpha-D-phosphohexomutase, C-terminal domain

结构域编号 domain_id	1wqaD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3

结构域编号 domain_id	1wqaD04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	50 — Alpha-D-phosphohexomutase, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	77.653 Å
晶胞边长 b length_b	137.916 Å
晶胞边长 c length_c	98.409 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	93.27 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.2162
R_free r_free	0.2359
