SAXSdb — 1wqw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wqw
沉积日期 deposition_date	2004-10-04
结构标题 title	Crystal Structure Of Biotin Protein Ligase From Pyrococcus Horikoshii Ot3 in complex with Biotinyl-5-AMP
关键词 keywords	Biotin Protein Ligase, Dimer, Structural Genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, LIGASE; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.73 Å
回转半径 Rg (电子) rg_electron	27.38 Å
零角强度 I(0) i0	42347100.00
分子量 molecular_weight	53296.0 kDa
排除体积 excluded_volume	68011 Å³
包络体积 envelope_volume	80154 Å³
水化壳体积 shell_volume	26138 Å³
包络直径 envelope_diameter	111.9 Å
壳层 Rg shell_rg	32.19 Å
包络 Rg envelope_rg	27.93 Å
形状 Rg shape_rg	27.38 Å
总 Rg total_rg	27.91 Å
总原子数 total_atoms	3750
残基数 n_residues	470
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	106.0 Å
Rg (实空间) rg_real	28.12 Å
Rg 误差 (实空间) rg_real_error	0.91 Å
I(0) (实空间) i0_real	4.2350e+07
I(0) 误差 (实空间) i0_real_error	6.7680e+05
Rg (倒空间) rg_reciprocal	28.00 Å
I(0) (倒空间) i0_reciprocal	42340000.0000
解质量估计 total_estimate	0.7543
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	26.0 Å
偏度 Skewness skewness	0.690
峰度 Kurtosis kurtosis	0.091
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	10520000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.435; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.503; Smooth: 0.995

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	biotin--[acetyl-CoA-carboxylase] ligase
分子量 formula_weight	26103.5 kDa
EC 编号 ec_number	6.3.4.15
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4822

MLGLKTSIIGRRVIYFQEITSTNEFAKTSYLEEGTVIVADKQTMGHGRLNRKWESPEGGLWLSIVLSPKVPQKDLPKIVFLGAVGVVETLKEFSIDGRIKWPNDVLVNYKKIAGVLVEGKGDKIVLGIGLNVNNKVPNGATSMKLELGSEVPLLSVFRSLITNLDRLYLNFLKNPMDILNLVRDNMILGVRVKILGDGSFEGIAEDIDDFGRLIIRLDSGEVKKVIYGDVSLRFL

来源 Source

来源生物 organism	Pyrococcus horikoshii
NCBI 分类编号 ncbi_taxonomy_id	70601
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	BIOTINYL-5-AMP
分子量 formula_weight	573.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1031

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1wqwa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.1 — C-terminal domain of transcriptional repressors
家族 Family family	b.34.1.1 — Biotin repressor (BirA)

结构域编号 domain_id	d1wqwa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.2 — Biotin holoenzyme synthetase

结构域编号 domain_id	d1wqwb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.1 — C-terminal domain of transcriptional repressors
家族 Family family	b.34.1.1 — Biotin repressor (BirA)

结构域编号 domain_id	d1wqwb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.104 — Class II aaRS and biotin synthetases
超家族 Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
家族 Family family	d.104.1.2 — Biotin holoenzyme synthetase

CATH v4.4 (4 domains)

结构域编号 domain_id	1wqwA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1wqwA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1wqwB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	930 — BirA Bifunctional Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

结构域编号 domain_id	1wqwB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	38.348 Å
晶胞边长 b length_b	82.832 Å
晶胞边长 c length_c	72.785 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	102.15 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.450 Å
最低分辨率 resolution_low	37.490 Å
R 因子 r_factor	—
R_work r_work	0.2120
R_free r_free	0.2400

fit	/app/data/saxs_computation/wq/1wqw/1wqw.fit
pddf	/app/data/pr_computation/wq/1wqw/1wqw.pr.out
profile	/app/data/saxs_computation/wq/1wqw/1wqw.dat

Crystal Structure Of Biotin Protein Ligase From Pyrococcus Horikoshii Ot3 in complex with Biotinyl-5-AMP

SAXS 散射曲线 SAXS Profile

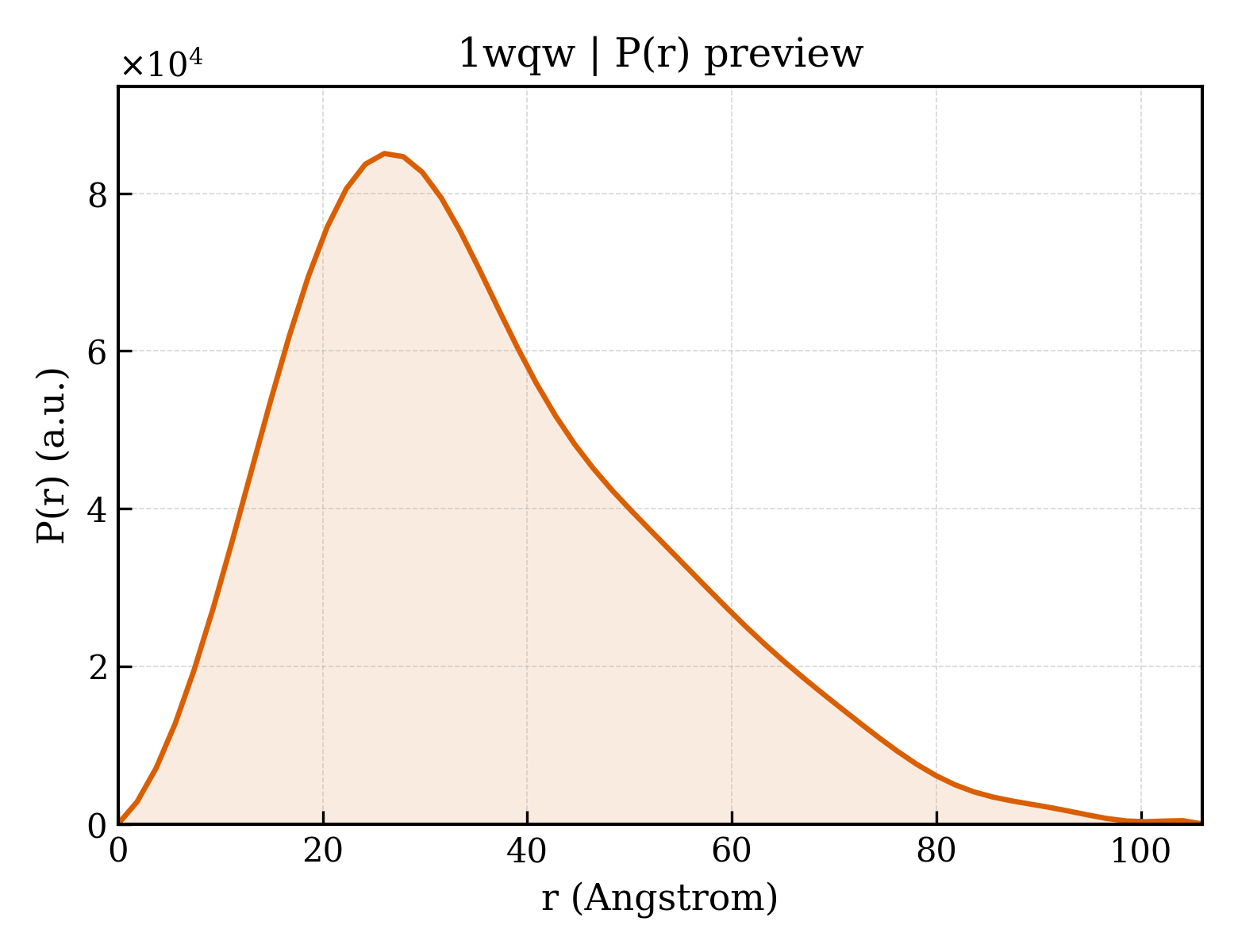

P(r) 距离分布 P(r) Distribution
