1wrb
Crystal structure of the N-terminal RecA-like domain of DjVLGB, a pranarian Vasa-like RNA helicase
SAXS 散射曲线 SAXS Profile

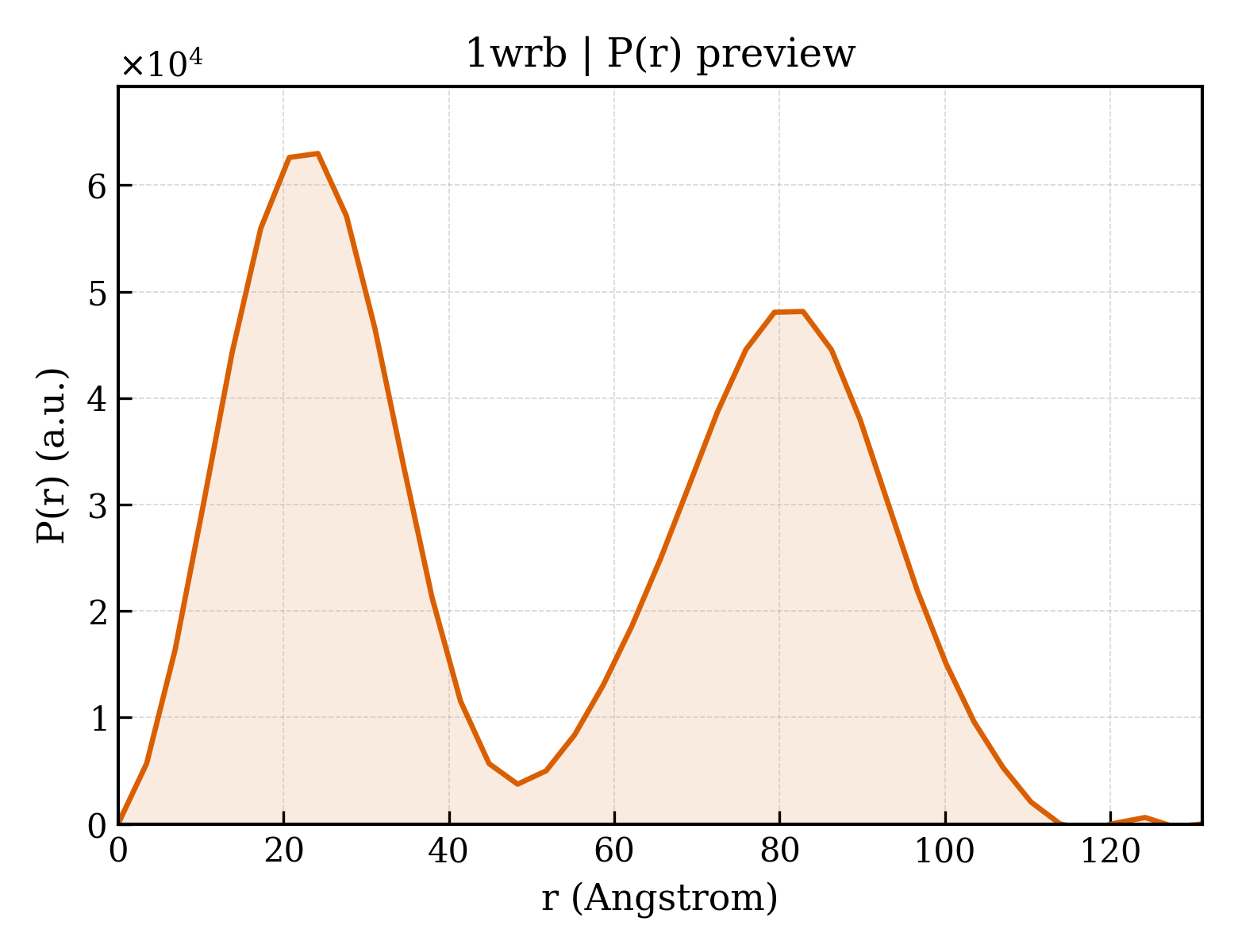

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1wrb |
| 沉积日期 deposition_date | 2004-10-14 |
| 结构标题 title | Crystal structure of the N-terminal RecA-like domain of DjVLGB, a pranarian Vasa-like RNA helicase |
| 关键词 keywords | ;RNA HELICASE, DEAD BOX, VASA, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, HYDROLASE ;; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 41.96 Å |
| 回转半径 Rg (电子) rg_electron | 41.87 Å |
| 零角强度 I(0) i0 | 39246600.00 |
| 分子量 molecular_weight | 52186.0 kDa |
| 排除体积 excluded_volume | 65851 ų |
| 包络体积 envelope_volume | 100830 ų |
| 水化壳体积 shell_volume | 20208 ų |
| 包络直径 envelope_diameter | 122.7 Å |
| 壳层 Rg shell_rg | 48.37 Å |
| 包络 Rg envelope_rg | 38.94 Å |
| 形状 Rg shape_rg | 41.86 Å |
| 总 Rg total_rg | 42.28 Å |
| 总原子数 total_atoms | 3656 |
| 残基数 n_residues | 464 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 131.1 Å |
| Rg (实空间) rg_real | 42.30 Å |
| Rg 误差 (实空间) rg_real_error | 1.69 Å |
| I(0) (实空间) i0_real | 3.9250e+07 |
| I(0) 误差 (实空间) i0_real_error | 6.9100e+05 |
| Rg (倒空间) rg_reciprocal | 41.96 Å |
| I(0) (倒空间) i0_reciprocal | 39230000.0000 |
| 解质量估计 total_estimate | 0.5442 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 24.2 Å |
| 偏度 Skewness skewness | 0.116 |
| 峰度 Kurtosis kurtosis | -1.536 |
| 角度范围 angular_range | — – 0.1900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 3858000.0000 |
| 实空间数据点数 n_real_points | 39 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.001; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.069; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1wrba1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
| 结构域编号 domain_id | d1wrbb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1wrbA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1wrbB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
