1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wrv
沉积日期 deposition_date	2004-10-27
结构标题 title	Crystal Structure of T.th.HB8 Branched-Chain Amino Acid Aminotransferase
关键词 keywords	hexamer, PLP-dependent enzyme, Structural Genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.26 Å
回转半径 Rg (电子) rg_electron	30.64 Å
零角强度 I(0) i0	153559000.00
分子量 molecular_weight	100440.0 kDa
排除体积 excluded_volume	126410 Å³
包络体积 envelope_volume	153670 Å³
水化壳体积 shell_volume	41401 Å³
包络直径 envelope_diameter	97.7 Å
壳层 Rg shell_rg	38.05 Å
包络 Rg envelope_rg	30.66 Å
形状 Rg shape_rg	30.63 Å
总 Rg total_rg	31.26 Å
总原子数 total_atoms	7075
残基数 n_residues	897
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.9 Å
Rg (实空间) rg_real	31.16 Å
Rg 误差 (实空间) rg_real_error	0.78 Å
I(0) (实空间) i0_real	1.5360e+08
I(0) 误差 (实空间) i0_real_error	2.5910e+06
Rg (倒空间) rg_reciprocal	31.21 Å
I(0) (倒空间) i0_reciprocal	153600000.0000
解质量估计 total_estimate	0.9114
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.208
峰度 Kurtosis kurtosis	-0.607
角度范围 angular_range	— – 0.2550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24720000.0000
实空间数据点数 n_real_points	52
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.974

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Branched-Chain Amino Acid Aminotransferase
分子量 formula_weight	34073.0 kDa
EC 编号 ec_number	2.6.1.42
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	7387

MQIKAGLIWMNGAFVPQEEAKTSVLSHALHYGTSVFEGIRAYETAKGPAIFRLKEHVKRFYNSAKVLRMEIPFAPEELEEAIKEVVRRNGYRSCYIRPLAWMGAKALGVNPLPNNPAEVMVAAWEWGAYLGEEAVRKGARLITSSWARFPANVMPGKAKVGGNYVNSALAKMEAVAAGADEALLLDEEGYVAEGSGENLFFVRDGVIYALEHSVNLEGITRDSVIRIAKDLGYEVQVVRATRDQLYMADEVFMTGTAAEVTPVSMIDWRPIGKGTAGPVALRLREVYLEAVTGRRPEYEGWLTYVNGQ

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	247.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	(4S)-2-METHYL-2,4-PENTANEDIOL
分子量 formula_weight	118.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	312

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1wrva_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.0 — automated matches

结构域编号 domain_id	d1wrvb_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.0 — automated matches

结构域编号 domain_id	d1wrvc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.17 — D-aminoacid aminotransferase-like PLP-dependent enzymes
超家族 Superfamily superfamily	e.17.1 — D-aminoacid aminotransferase-like PLP-dependent enzymes
家族 Family family	e.17.1.0 — automated matches

CATH v4.4 (6 domains)

结构域编号 domain_id	1wrvA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1wrvA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

结构域编号 domain_id	1wrvB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1wrvB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

结构域编号 domain_id	1wrvC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminotransferase class 4, branched-chain amino acid transferase, N-terminal domain

结构域编号 domain_id	1wrvC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	10 — D-amino Acid Aminotransferase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-amino Acid Aminotransferase, subunit A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	143.410 Å
晶胞边长 b length_b	143.410 Å
晶胞边长 c length_c	116.220 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	1.500 Å
最低分辨率 resolution_low	9.990 Å
R 因子 r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2180

fit	/app/data/saxs_computation/wr/1wrv/1wrv.fit
pddf	/app/data/pr_computation/wr/1wrv/1wrv.pr.out
profile	/app/data/saxs_computation/wr/1wrv/1wrv.dat

Crystal Structure of T.th.HB8 Branched-Chain Amino Acid Aminotransferase

SAXS 散射曲线 SAXS Profile

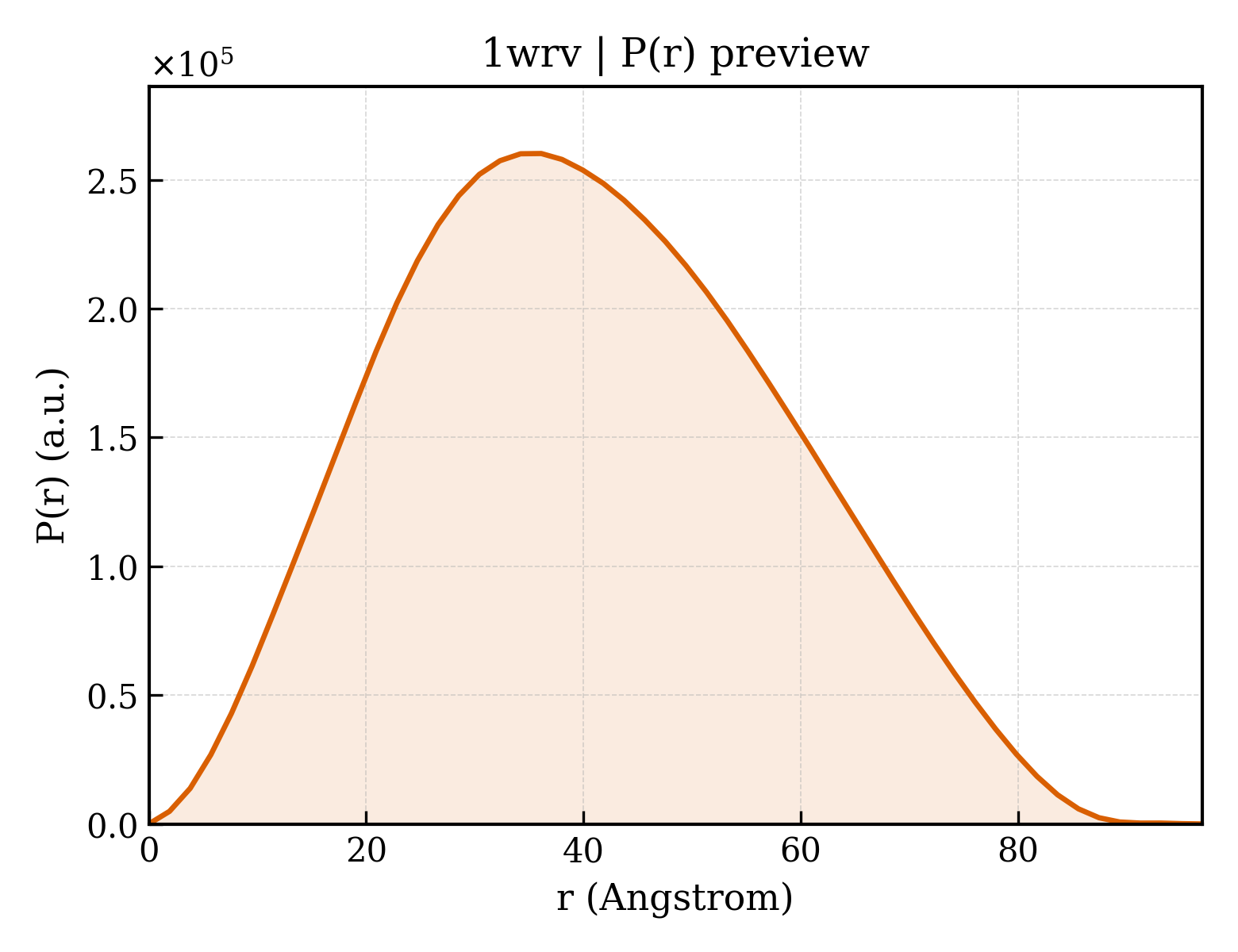

P(r) 距离分布 P(r) Distribution
