1wsg

Co-crystal structure of E.coli RNase HI active site mutant (E48A/D134N*) with Mn2+

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonuclease HI

Escherichia coli

UniProt P0A7Y4

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 MANGANESE (II) ION × 1 water × 1 Consistent with protein count
2 Protein monomer Monomer Protein 1 water × 1 Consistent with protein count
3 Protein monomer Monomer Protein 1 water × 1 Consistent with protein count
4 Protein monomer Monomer Protein 1 MANGANESE (II) ION × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1f21 1g15 1goa 1gob 1goc 1jl1 1jxb 1kva 1kvb 1kvc 1lav 1law

67 assemblies; showing the first 12

Homodimer
7vse

1 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1jl2 3hyf 3qin 3qio

4 assemblies

View Construct and Data Evidence
UniProt name RNH_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–155； UniProt 1–155 Author chain B； PDBConstruct 1–155； UniProt 1–155 Author chain C； PDBConstruct 1–155； UniProt 1–155 Author chain D； PDBConstruct 1–155； UniProt 1–155

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1wsg
Deposition date deposition_date2004-11-05
Structure title titleCo-crystal structure of E.coli RNase HI active site mutant (E48A/D134N*) with Mn2+
Keywords keywordsRNase H, active-site mutant, co-crystal structure with Mn2+, metal fluctuation model, hydrolase; HYDROLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

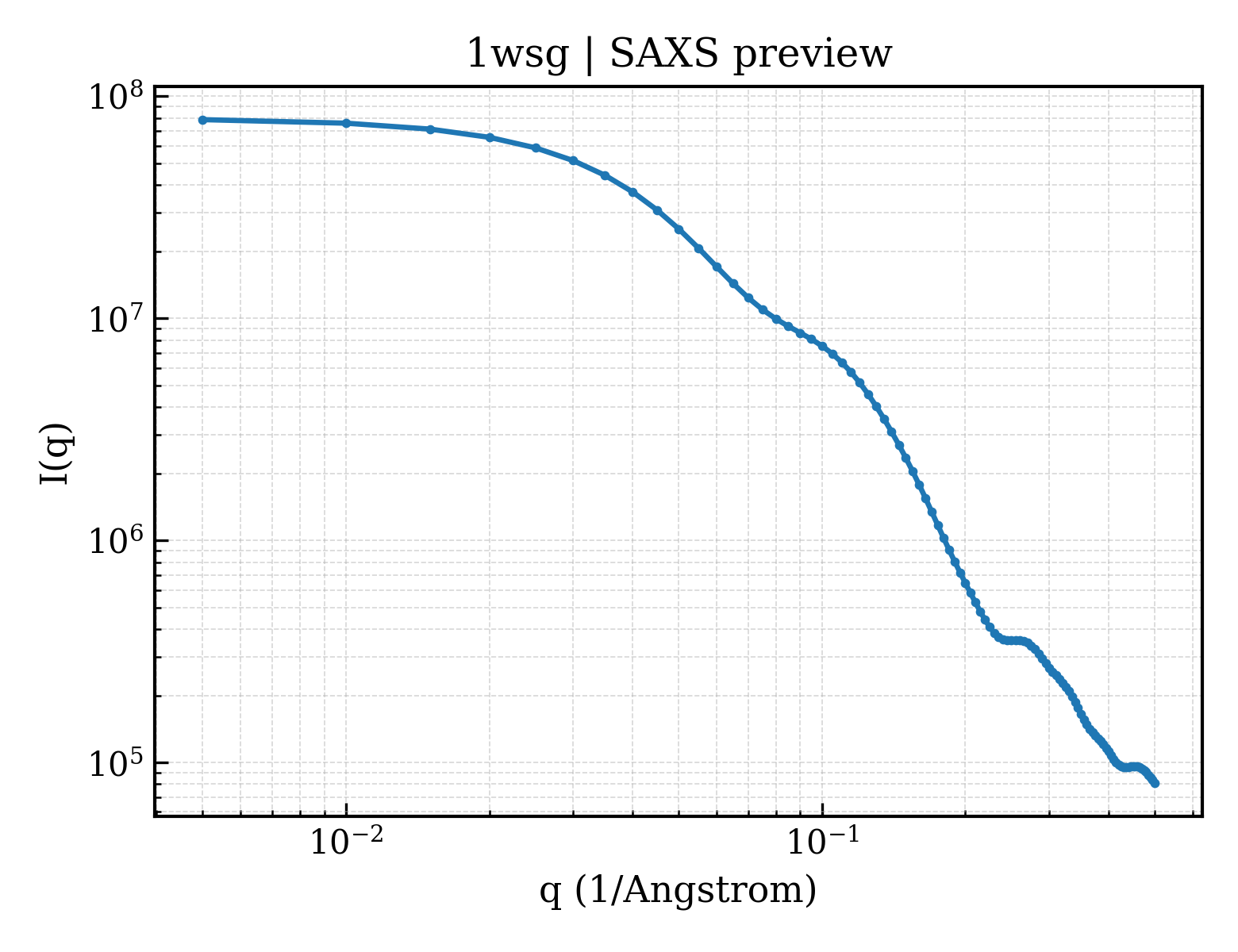

1wsg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wsg__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1wsg__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）16.59 Å
Rg (electron density)15.47 Å
Total Rg16.64 Å
Atom count1230
Residues155
Excluded volume21702 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1wsg__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 1wsg__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
3 1 1wsg__assembly_3__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
4 1 1wsg__assembly_4__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd1wsga1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.3 — Ribonuclease H-like
Family Family familyc.55.3.1 — Ribonuclease H
Domain ID domain_idd1wsgb_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.3 — Ribonuclease H-like
Family Family familyc.55.3.1 — Ribonuclease H
Domain ID domain_idd1wsgc_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.3 — Ribonuclease H-like
Family Family familyc.55.3.1 — Ribonuclease H
Domain ID domain_idd1wsgd_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.3 — Ribonuclease H-like
Family Family familyc.55.3.1 — Ribonuclease H

CATH v4.4 (4 domains)

Domain ID domain_id1wsgA00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily10 — Ribonuclease H-like superfamily/Ribonuclease H
Domain ID domain_id1wsgB00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily10 — Ribonuclease H-like superfamily/Ribonuclease H
Domain ID domain_id1wsgC00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily10 — Ribonuclease H-like superfamily/Ribonuclease H
Domain ID domain_id1wsgD00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily10 — Ribonuclease H-like superfamily/Ribonuclease H
▶

7. Citations (1)
