SAXSdb — 1wtf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferredoxin

Bacillus thermoproteolyticus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 COENZYME A × 1 FE3-S4 CLUSTER × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 FE3-S4 CLUSTER × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	FE3-S4 CLUSTER × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	FE3-S4 CLUSTER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FER_BACTH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–81； UniProt 1–81 Author chain B； PDBConstruct 1–81； UniProt 1–81 Author chain C； PDBConstruct 1–81； UniProt 1–81 Author chain D； PDBConstruct 1–81； UniProt 1–81

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wtf
Deposition date deposition_date	2004-11-22
Structure title title	Crystal structure of Bacillus thermoproteolyticus Ferredoxin Variants Containing Unexpected [3Fe-4S] Cluster that is linked to Coenzyme A at 1.6 A Resolution
Keywords keywords	3Fe-4S cluster, Coenzyme A, Ferredoxin, Complex, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wtf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wtf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

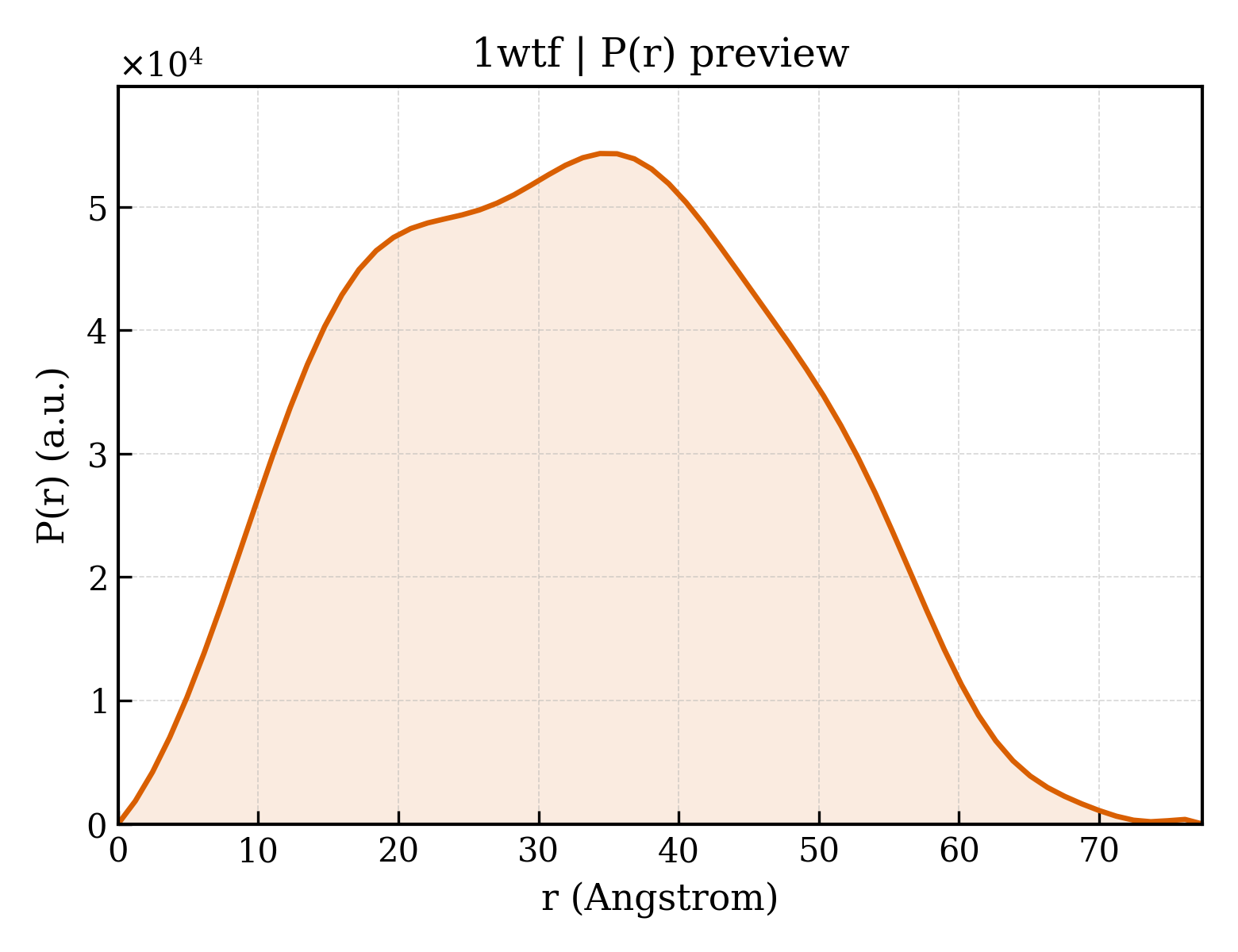

1wtf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.24 Å
Rg (electron density)	11.86 Å
Total Rg	13.07 Å
Atom count	677
Residues	81
Excluded volume	11780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wtf__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1wtf__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1wtf__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1wtf__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ferredoxin
Molecular weight formula_weight	8773.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3299

PKYTIVDKETCIACGACGAAAPDIYDYDEDGIAYVTLDDNQGIVEVPDILIDDMMDAFEGCPTDSIKVADEPFDGDPNKFE

Source Source

Source organism organism	Bacillus thermoproteolyticus
NCBI taxonomy ID ncbi_taxonomy_id	1427
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	FE3-S4 CLUSTER
Molecular weight formula_weight	295.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	760

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1wtfa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

Domain ID domain_id	d1wtfb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

Domain ID domain_id	d1wtfc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

Domain ID domain_id	d1wtfd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

CATH v4.4 (4 domains)

Domain ID domain_id	1wtfA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1wtfB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1wtfC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1wtfD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	52.461 Å
Unit-cell length b length_b	63.387 Å
Unit-cell length c length_c	56.857 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.06 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	31.840 Å
R factor r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2140

Crystal structure of Bacillus thermoproteolyticus Ferredoxin Variants Containing Unexpected [3Fe-4S] Cluster that is linked to Coenzyme A at 1.6 A Resolution
