1wur

Structure of GTP cyclohydrolase I Complexed with 8-oxo-dGTP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP cyclohydrolase I

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	ZINC ION × 10 8-OXO-2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SH52_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–220； UniProt 1–220 Author chain B； PDBConstruct 1–220； UniProt 1–220 Author chain C； PDBConstruct 1–220； UniProt 1–220 Author chain D； PDBConstruct 1–220； UniProt 1–220 Author chain E； PDBConstruct 1–220； UniProt 1–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wur
Deposition date deposition_date	2004-12-08
Structure title title	Structure of GTP cyclohydrolase I Complexed with 8-oxo-dGTP
Keywords keywords	;BETA BARREL, PROTEIN-INHIBITOR COMPLEX, HYDROLASE, PTERIDINE, TETRAHYDROBIOPTERIN, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wur__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wur__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

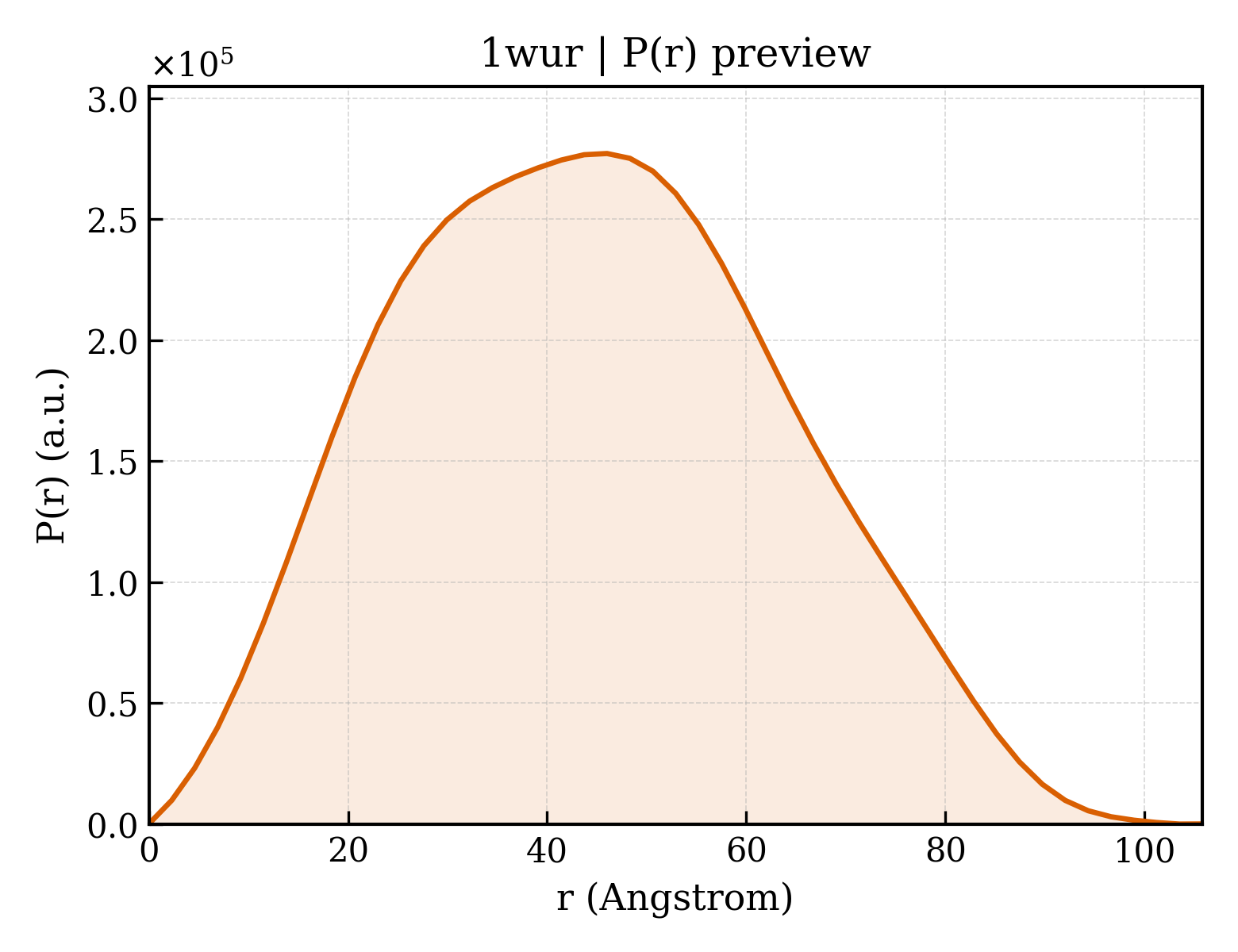

1wur__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.19 Å
Rg (electron density)	35.12 Å
Total Rg	35.66 Å
Atom count	14982
Residues	1848
Excluded volume	266930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wur__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GTP cyclohydrolase I
Molecular weight formula_weight	24571.3 kDa
EC 编号 ec_number	3.5.4.16
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	7908

MSPGPQSGGQERGSMERKMVELEDTGLTFATEVDLERLQALAAEWLQVIGEDPGREGLLKTPERVAKAWAFLTRGYRQRLEEVVGGAVFPAEGSEMVVVKGVEFYSMCEHHLLPFFGKVHIGYIPDGKILGLSKFARIVDMFARRLQVQERLAVQIAEAIQEVLEPQGVGVVVEGVHLCMMMRGVEKQHSRTVTSAMLGVFRENQKTREEFLSHLRDGTA

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	8-OXO-2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	417

▼

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1wura_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.1 — GTP cyclohydrolase I

Domain ID domain_id	d1wurb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.1 — GTP cyclohydrolase I

Domain ID domain_id	d1wurc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.1 — GTP cyclohydrolase I

Domain ID domain_id	d1wurd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.1 — GTP cyclohydrolase I

Domain ID domain_id	d1wure_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.1 — GTP cyclohydrolase I

CATH v4.4 (10 domains)

Domain ID domain_id	1wurA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	286 — GTP Cyclohydrolase I; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, N-terminal domain

Domain ID domain_id	1wurA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1130 — GTP Cyclohydrolase I, domain 2
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, C-terminal domain/NADPH-dependent 7-cyano-7-deazaguanine reductase, N-terminal domain

Domain ID domain_id	1wurB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	286 — GTP Cyclohydrolase I; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, N-terminal domain

Domain ID domain_id	1wurB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1130 — GTP Cyclohydrolase I, domain 2
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, C-terminal domain/NADPH-dependent 7-cyano-7-deazaguanine reductase, N-terminal domain

Domain ID domain_id	1wurC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	286 — GTP Cyclohydrolase I; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, N-terminal domain

Domain ID domain_id	1wurC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1130 — GTP Cyclohydrolase I, domain 2
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, C-terminal domain/NADPH-dependent 7-cyano-7-deazaguanine reductase, N-terminal domain

Domain ID domain_id	1wurD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	286 — GTP Cyclohydrolase I; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, N-terminal domain

Domain ID domain_id	1wurD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1130 — GTP Cyclohydrolase I, domain 2
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, C-terminal domain/NADPH-dependent 7-cyano-7-deazaguanine reductase, N-terminal domain

Domain ID domain_id	1wurE01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	286 — GTP Cyclohydrolase I; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, N-terminal domain

Domain ID domain_id	1wurE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1130 — GTP Cyclohydrolase I, domain 2
Homologous superfamily homologous superfamily	10 — GTP cyclohydrolase I, C-terminal domain/NADPH-dependent 7-cyano-7-deazaguanine reductase, N-terminal domain

▶

Unit-cell length a length_a	160.570 Å
Unit-cell length b length_b	110.560 Å
Unit-cell length c length_c	70.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	46.690 Å
R factor r_factor	—
R_work r_work	0.2060
R_free r_free	0.2370
