1wxo
Structure of Archaeal Trans-Editing Protein AlaX in complex with zinc
SAXS 散射曲线 SAXS Profile

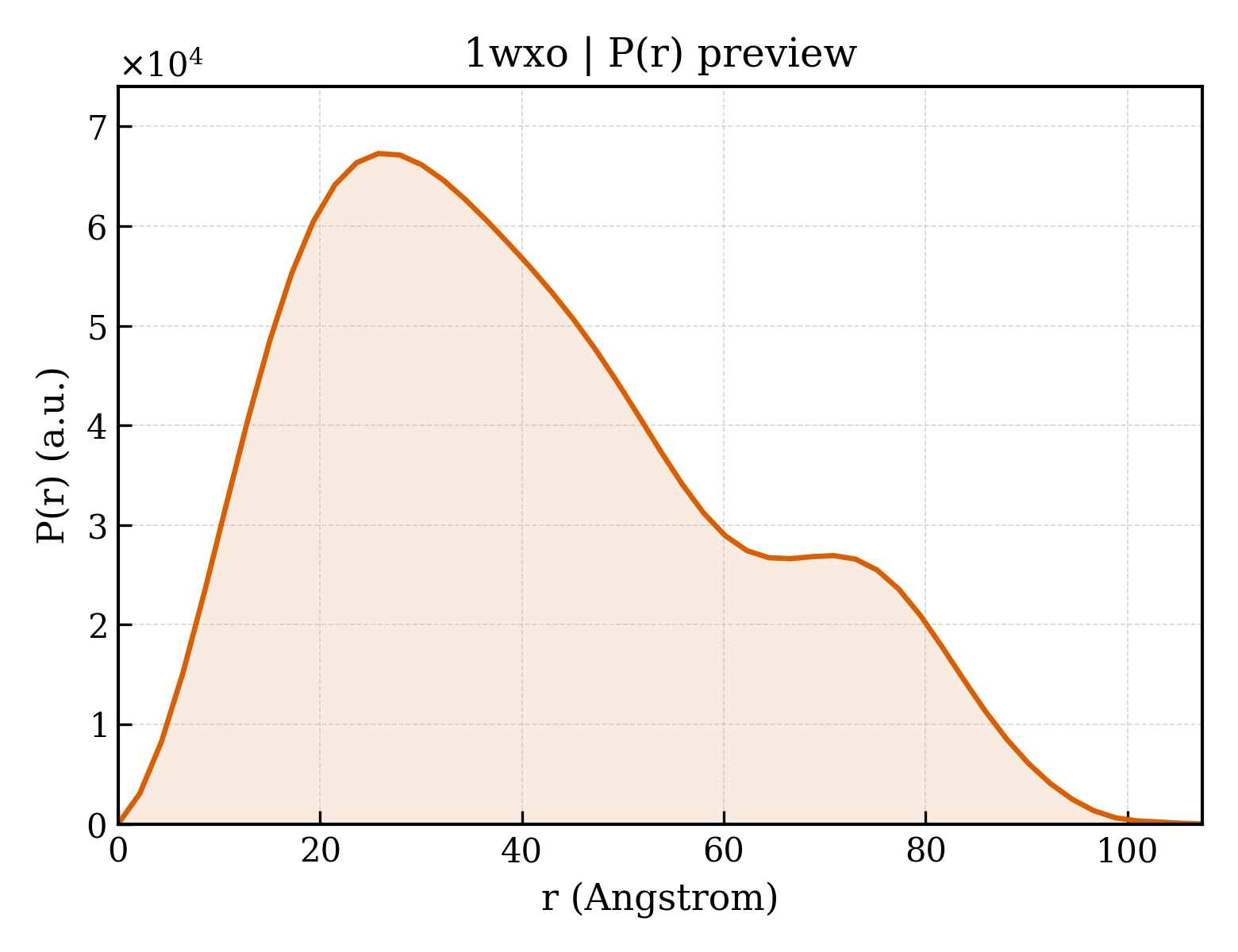

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1wxo |
| 沉积日期 deposition_date | 2005-01-27 |
| 结构标题 title | Structure of Archaeal Trans-Editing Protein AlaX in complex with zinc |
| 关键词 keywords | HYDROLASE, Trans-editing; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.81 Å |
| 回转半径 Rg (电子) rg_electron | 31.92 Å |
| 零角强度 I(0) i0 | 42838300.00 |
| 分子量 molecular_weight | 53224.0 kDa |
| 排除体积 excluded_volume | 67540 ų |
| 包络体积 envelope_volume | 89420 ų |
| 水化壳体积 shell_volume | 26036 ų |
| 包络直径 envelope_diameter | 108.5 Å |
| 壳层 Rg shell_rg | 35.28 Å |
| 包络 Rg envelope_rg | 31.59 Å |
| 形状 Rg shape_rg | 31.91 Å |
| 总 Rg total_rg | 32.30 Å |
| 总原子数 total_atoms | 3740 |
| 残基数 n_residues | 458 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 107.4 Å |
| Rg (实空间) rg_real | 32.21 Å |
| Rg 误差 (实空间) rg_real_error | 1.24 Å |
| I(0) (实空间) i0_real | 4.2840e+07 |
| I(0) 误差 (实空间) i0_real_error | 7.4540e+05 |
| Rg (倒空间) rg_reciprocal | 32.05 Å |
| I(0) (倒空间) i0_reciprocal | 42830000.0000 |
| 解质量估计 total_estimate | 0.8181 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 25.8 Å |
| 偏度 Skewness skewness | 0.500 |
| 峰度 Kurtosis kurtosis | -0.578 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 6830000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.631; Smooth: 0.876 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 9 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1wxoa_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.67 — RRF/tRNA synthetase additional domain-like |
| 超家族 Superfamily superfamily | d.67.1 — ThrRS/AlaRS common domain |
| 家族 Family family | d.67.1.2 — AlaX-like |
| 结构域编号 domain_id | d1wxob_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.67 — RRF/tRNA synthetase additional domain-like |
| 超家族 Superfamily superfamily | d.67.1 — ThrRS/AlaRS common domain |
| 家族 Family family | d.67.1.2 — AlaX-like |
| 结构域编号 domain_id | d1wxoc_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.67 — RRF/tRNA synthetase additional domain-like |
| 超家族 Superfamily superfamily | d.67.1 — ThrRS/AlaRS common domain |
| 家族 Family family | d.67.1.2 — AlaX-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1wxoA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 980 — Threonyl-tRNA Synthetase; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Threonyl-trna Synthetase; Chain A, domain 2 |
| 结构域编号 domain_id | 1wxoA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 54 — Replication Terminator Protein; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 1wxoB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 980 — Threonyl-tRNA Synthetase; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Threonyl-trna Synthetase; Chain A, domain 2 |
| 结构域编号 domain_id | 1wxoB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 54 — Replication Terminator Protein; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 1wxoC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 980 — Threonyl-tRNA Synthetase; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Threonyl-trna Synthetase; Chain A, domain 2 |
| 结构域编号 domain_id | 1wxoC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 54 — Replication Terminator Protein; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
