1x0p

Structure of a cyanobacterial BLUF protein, Tll0078

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Tll0078

Thermosynechococcus elongatus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	FLAVIN-ADENINE DINUCLEOTIDE × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8DMN3_SYNEL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–143； UniProt 1–143 Author chain B； PDBConstruct 1–143； UniProt 1–143 Author chain C； PDBConstruct 1–143； UniProt 1–143 Author chain D； PDBConstruct 1–143； UniProt 1–143 Author chain E； PDBConstruct 1–143； UniProt 1–143 Author chain F； PDBConstruct 1–143； UniProt 1–143 Author chain G； PDBConstruct 1–143； UniProt 1–143 Author chain H； PDBConstruct 1–143； UniProt 1–143 Author chain I； PDBConstruct 1–143； UniProt 1–143 Author chain J； PDBConstruct 1–143； UniProt 1–143

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x0p
Deposition date deposition_date	2005-03-27
Structure title title	Structure of a cyanobacterial BLUF protein, Tll0078
Keywords keywords	BLUF, Tll0078, FAD, STRUCTURAL GENOMICS, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x0p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

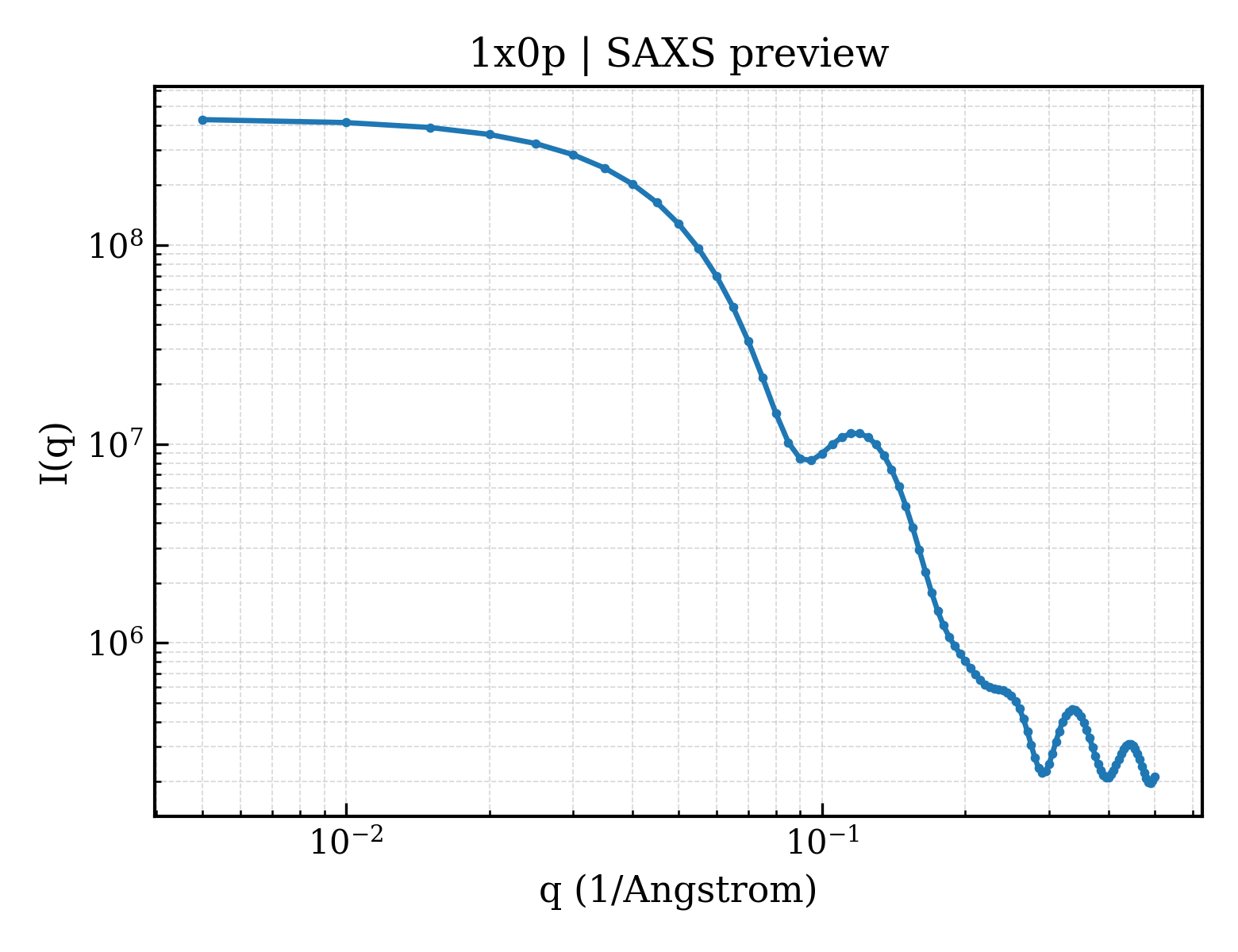

1x0p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

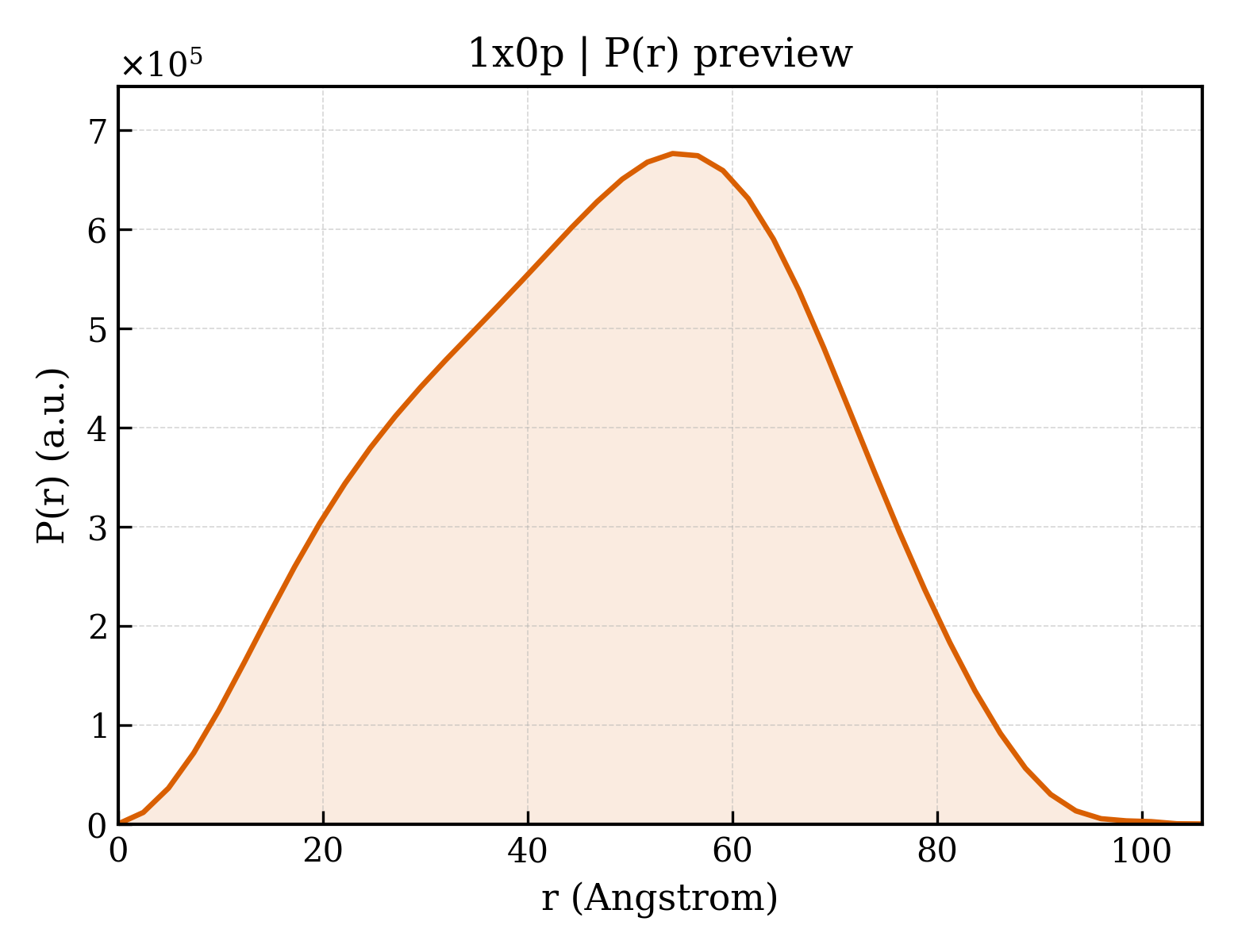

1x0p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.13 Å
Rg (electron density)	35.96 Å
Total Rg	36.53 Å
Atom count	11540
Residues	1399
Excluded volume	204630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x0p__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	hypothetical protein Tll0078
Molecular weight formula_weight	16560.0 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J
Atom count atom_count	11816

MGLHRLIYLSCATDGLSYPDLRDIMAKSEVNNLRDGITGMLCYGNGMFLQTLEGDRQKVSETYARILKDPRHHSAEIVEFKAIEERTFINWSMRLVQLGEMDSDTIRRLRLKYSPAATFQPRSMTAEQCFRFLKELYDMSQGS

Source Source

Source organism organism	Thermosynechococcus elongatus
NCBI taxonomy ID ncbi_taxonomy_id	197221
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	276

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1x0pa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0ph_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pi_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

Domain ID domain_id	d1x0pj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.10 — Acylphosphatase/BLUF domain-like
Family Family family	d.58.10.2 — BLUF domain

CATH v4.4 (20 domains)

Domain ID domain_id	1x0pA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pH02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pI01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pI02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

Domain ID domain_id	1x0pJ01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1x0pJ02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	1540 —

▶

Unit-cell length a length_a	89.511 Å
Unit-cell length b length_b	109.850 Å
Unit-cell length c length_c	169.875 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2310
R_free r_free	0.2680

Structure of a cyanobacterial BLUF protein, Tll0078

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Tll0078

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1x0p__assembly_1__model_1

1x0p__assembly_1__model_1 | I(q)

1x0p__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (10 domains)

CATH v4.4 (20 domains)

7. Citations (1)

Structure of a cyanobacterial BLUF protein, Tll0078

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Tll0078

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1x0p__assembly_1__model_1

1x0p__assembly_1__model_1 | I(q)

1x0p__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (10 domains)

CATH v4.4 (20 domains)

7. Citations (1)
