1. Protein Identity and Related Structures Protein Identity & Related Structures

lectin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	methyl alpha-D-mannopyranoside × 5 ZINC ION × 3 HEXANE-1,6-DIOL × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8L5H4_MUSAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 1–141 Author chain B； PDBConstruct 1–141； UniProt 1–141

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x1v
Deposition date deposition_date	2005-04-14
Structure title title	Structure Of Banana Lectin- Methyl-Alpha-Mannose Complex
Keywords keywords	all beta sheet protein, beta prism-I fold, mannose specific, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x1v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

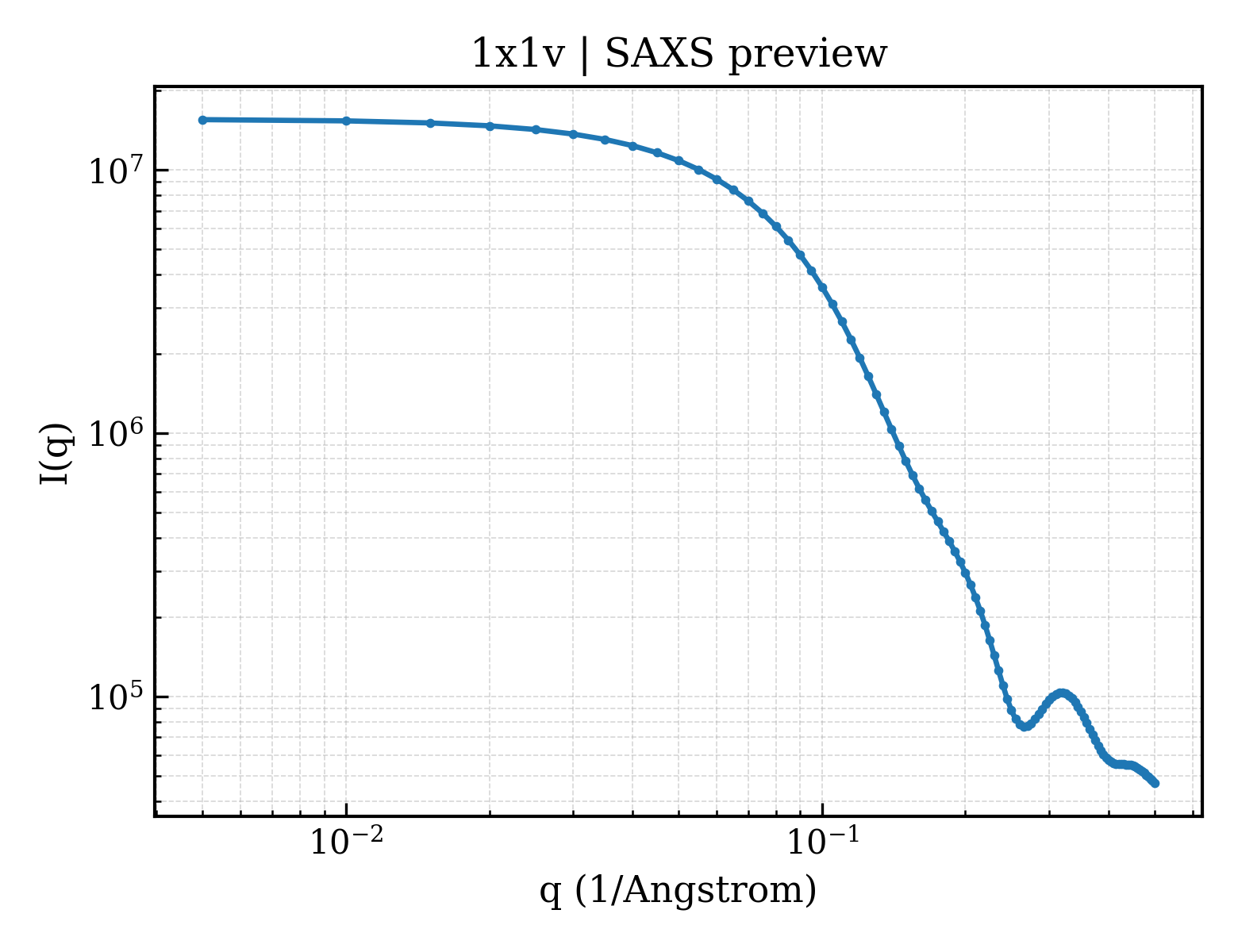

1x1v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

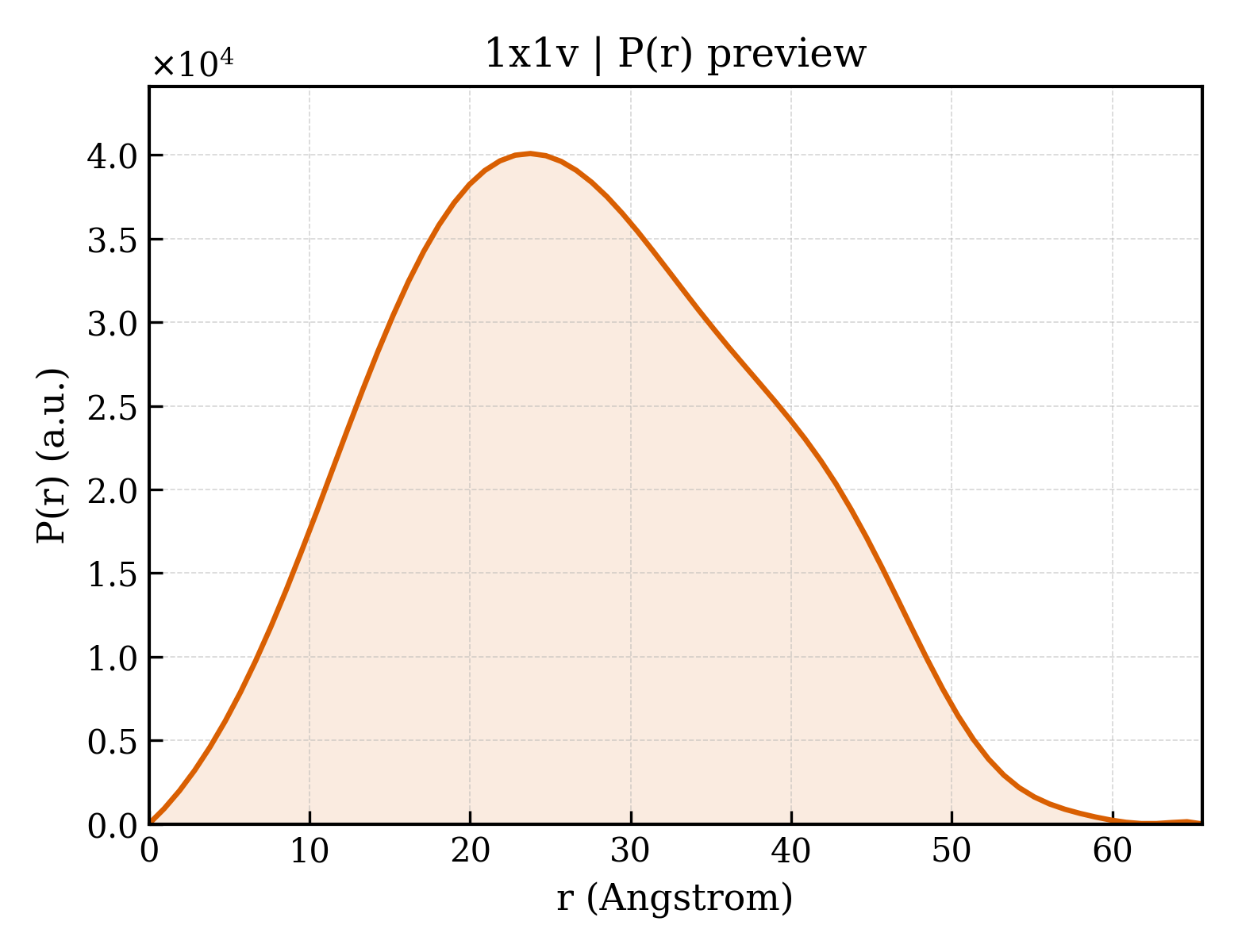

1x1v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.83 Å
Rg (electron density)	19.60 Å
Total Rg	20.57 Å
Atom count	2166
Residues	278
Excluded volume	38851 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x1v__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	lectin
Molecular weight formula_weight	14683.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2664

MNGAIKVGAWGGNGGSAFDMGPAYRIISVKIFSGDVVDAVDVTFTYYGKTETRHFGGSGGTPHEIVLQEGEYLVGMKGEFGNYHGVVVVGKLGFSTNKKSYGPFGNTGGTPFSLPIAAGKISGFFGRGGDFIDAIGVYLEP

Entity 2 Entity 2 non-polymer

Description description	methyl alpha-D-mannopyranoside
Molecular weight formula_weight	194.2 kDa
Source method src_method	man
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	HEXANE-1,6-DIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	498

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1x1va_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.0 — automated matches

Domain ID domain_id	d1x1vb_
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	1x1vA00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1x1vB00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

▶

Unit-cell length a length_a	80.820 Å
Unit-cell length b length_b	80.820 Å
Unit-cell length c length_c	148.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	24.920 Å
R factor r_factor	0.2257
R_work r_work	0.2239
R_free r_free	0.2603
