SAXSdb — 1x6n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chitinase A

Serratia marcescens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–563	Mutation：W167A	2-acetamido-2-deoxy-beta-D-allopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-allopyranose × 1 AMI ALLOSAMIZOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.3；298 K；methanol,Hepes, pH 7.3, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1X6N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CTN CRYSTAL STRUCTURE OF A BACTERIAL CHITINASE AT 2.3 ANGSTROMS RESOLUTION Deposited 1994-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–563（540 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1RD6 Crystal Structure of S. Marcescens Chitinase A Mutant W167A Deposited 2003-11-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–563（563 aa）	Mutation：W167A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Tris,PEG 3350, (NH4)2HPO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.235
1X6L Crystal structure of S. marcescens chitinase A mutant W167A Deposited 2004-08-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–563（563 aa）	Mutation：W167A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；methanol,Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.233

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHIA_SERMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–563； UniProt 1–563

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x6n
Deposition date deposition_date	2004-08-11
Structure title title	Crystal structure of S. marcescens chitinase A mutant W167A in complex with allosamidin
Keywords keywords	Inhibitor complex, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.13 Å
Radius of gyration Rg (electron density) rg_electron	26.49 Å
Forward intensity I(0) i0	56454600.00
Molecular weight molecular_weight	58958.0 kDa
Excluded volume excluded_volume	73750 Å³
Envelope volume envelope_volume	85562 Å³
Hydration-shell volume shell_volume	28734 Å³
Envelope diameter envelope_diameter	105.9 Å
Shell Rg shell_rg	31.69 Å
Envelope Rg envelope_rg	27.11 Å
Shape Rg shape_rg	26.48 Å
Total Rg total_rg	27.04 Å
Total atoms total_atoms	4162
Residues n_residues	539
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

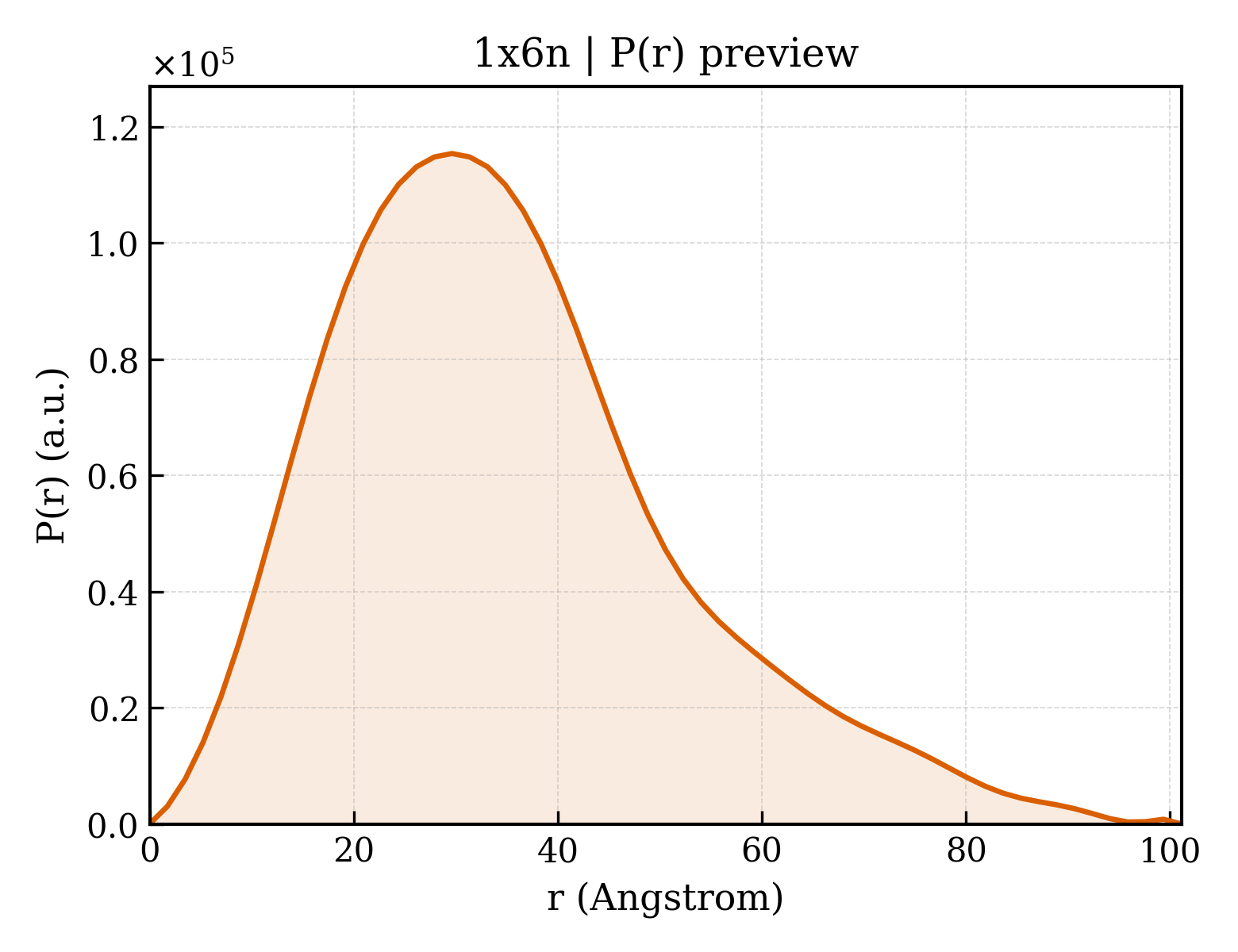

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.1 Å
Rg (real space) rg_real	27.45 Å
Rg uncertainty (real space) rg_real_error	1.05 Å
I(0) (real space) i0_real	5.6450e+07
I(0) uncertainty (real space) i0_real_error	1.0080e+06
Rg (reciprocal space) rg_reciprocal	27.35 Å
I(0) (reciprocal space) i0_reciprocal	56450000.0000
Solution quality estimate total_estimate	0.7864
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.738
Kurtosis Kurtosis kurtosis	0.384
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15180000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.509; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.806; Smooth: 0.886

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Chitinase A
Molecular weight formula_weight	60972.4 kDa
EC 编号 ec_number	3.2.1.14
Mutation mutation	W167A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4347

MRKFNKPLLALLIGSTLCSAAQAAAPGKPTIAWGNTKFAIVEVDQAATAYNNLVKVKNAADVSVSWNLWNGDAGTTAKILLNGKEAWSGPSTGSSGTANFKVNKGGRYQMQVALCNADGCTASDATEIVVADTDGSHLPPLKESLLEKNKPYKQNSGKVVGSYFVEAGVYGRNFTVDKIPAQNLTHLLYGFIPICGGNGINDSLKEIEGSFQALQRSCQGREDFKISIHDPFAALQKAQKGVTAWDDPYKGNFGQLMALKQAHPDLKILPSIGGWTLSDPFFFMGDKVKRDRFVGSVKEFLQTWKFFDGVDIDWEFPGGKGANPNLGSPQDGETYVLLMKELRAMLDQLSAETGRKYELTSAISAGKDKIDKVAYNVAQNSMDHIFLMSYDFYGAFDLKNLGHQTALNAPAWKPDTAYTTVNGVNALLAQGVKPGKIVVGTAMYGRGWTGVNGYQNNIPFTGTATGPVKGTWENGIVDYRQIASQFMSGEWQYTYDATAEAPYVFKPSTGDLITFDDARSVQAKGKYVLDKQLGGLFSWEIDADNGDILNSMNASLGNSAGVQ

来源 Source

来源生物 organism	Serratia marcescens
NCBI Class编号 ncbi_taxonomy_id	615
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-allopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-allopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ALLOSAMIZOLINE
Molecular weight formula_weight	216.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	185

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1x6na1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.2 — E-set domains of sugar-utilizing enzymes

Domain ID domain_id	d1x6na2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.5 — Type II chitinase

Domain ID domain_id	d1x6na3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.3 — Chitinase insertion domain
Family Family family	d.26.3.1 — Chitinase insertion domain

CATH v4.4 (3 domains)

Domain ID domain_id	1x6nA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1x6nA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1x6nA03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	76.670 Å
Unit-cell length b length_b	133.070 Å
Unit-cell length c length_c	192.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.940 Å
R factor r_factor	0.2140
R_work r_work	0.2140
R_free r_free	0.2380
