SAXSdb — 1x6u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-dehydro-3-deoxyphosphooctonate aldolase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	3-deoxy-8-O-phosphono-alpha-D-manno-oct-2-ulopyranosonic acid × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KDSA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–284； UniProt 1–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x6u
Deposition date deposition_date	2004-08-12
Structure title title	KDO8P synthase in it's binary complex with the product KDO8P
Keywords keywords	KDO8P, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x6u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1x6u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

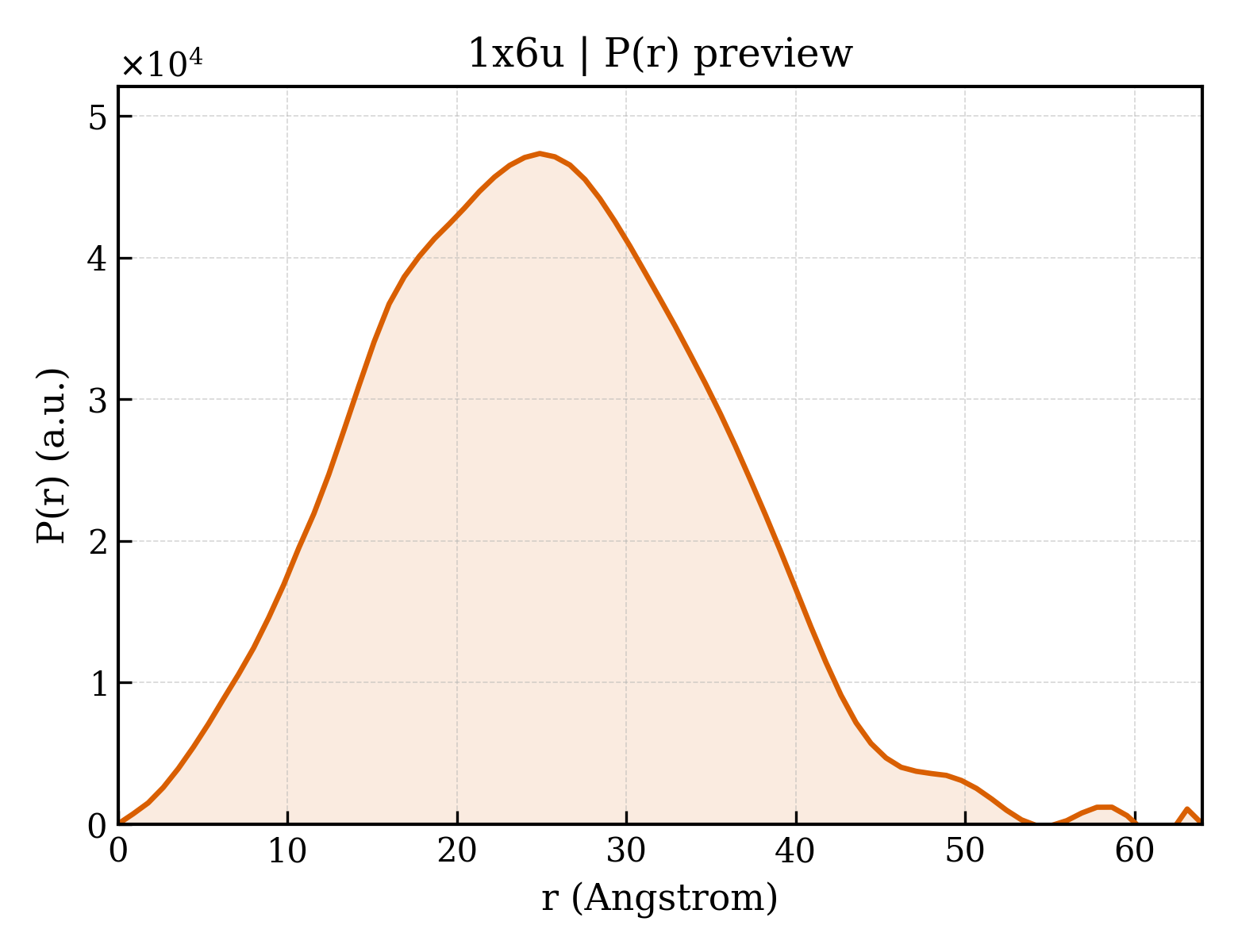

1x6u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.71 Å
Rg (electron density)	30.84 Å
Total Rg	31.59 Å
Atom count	8404
Residues	1088
Excluded volume	151100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x6u__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	2-dehydro-3-deoxyphosphooctonate aldolase
Molecular weight formula_weight	30870.7 kDa
EC 编号 ec_number	2.5.1.55
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2126

MKQKVVSIGDINVANDLPFVLFGGMNVLESRDLAMRICEHYVTVTQKLGIPYVFKASFDKANRSSIHSYRGPGLEEGMKIFQELKQTFGVKIITDVHEPSQAQPVADVVDVIQLPAFLARQTDLVEAMAKTGAVINVKKPQFVSPGQMGNIVDKFKEGGNEKVILCDRGANFGYDNLVVDMLGFSIMKKVSGNSPVIFDVTHALQCRDPFGAASGGRRAQVAELARAGMAVGLAGLFIEAHPDPEHAKCDGPSALPLAKLEPFLKQMKAIDDLVKGFEELDTSK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	3-deoxy-8-O-phosphono-alpha-D-manno-oct-2-ulopyranosonic acid
Molecular weight formula_weight	318.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1x6ua_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.4 — Class I DAHP synthetase

CATH v4.4 (1 domains)

Domain ID domain_id	1x6uA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	118.530 Å
Unit-cell length b length_b	118.530 Å
Unit-cell length c length_c	118.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2390
R_work r_work	0.2390
R_free r_free	0.2800
