1x6v

The crystal structure of human 3'-phosphoadenosine-5'-phosphosulfate synthetase 1

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Bifunctional 3'-phosphoadenosine 5'-phosphosulfate synthetase 1 ;

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 2 ADENOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAPS1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–624； UniProt 1–624 Author chain B； PDBConstruct 1–624； UniProt 1–624

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x6v
Deposition date deposition_date	2004-08-12
Structure title title	The crystal structure of human 3'-phosphoadenosine-5'-phosphosulfate synthetase 1
Keywords keywords	transferase, ATP sulfurylase, APS kinase, PAPS, phosphoadenosine phosphosulfate; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x6v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1x6v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

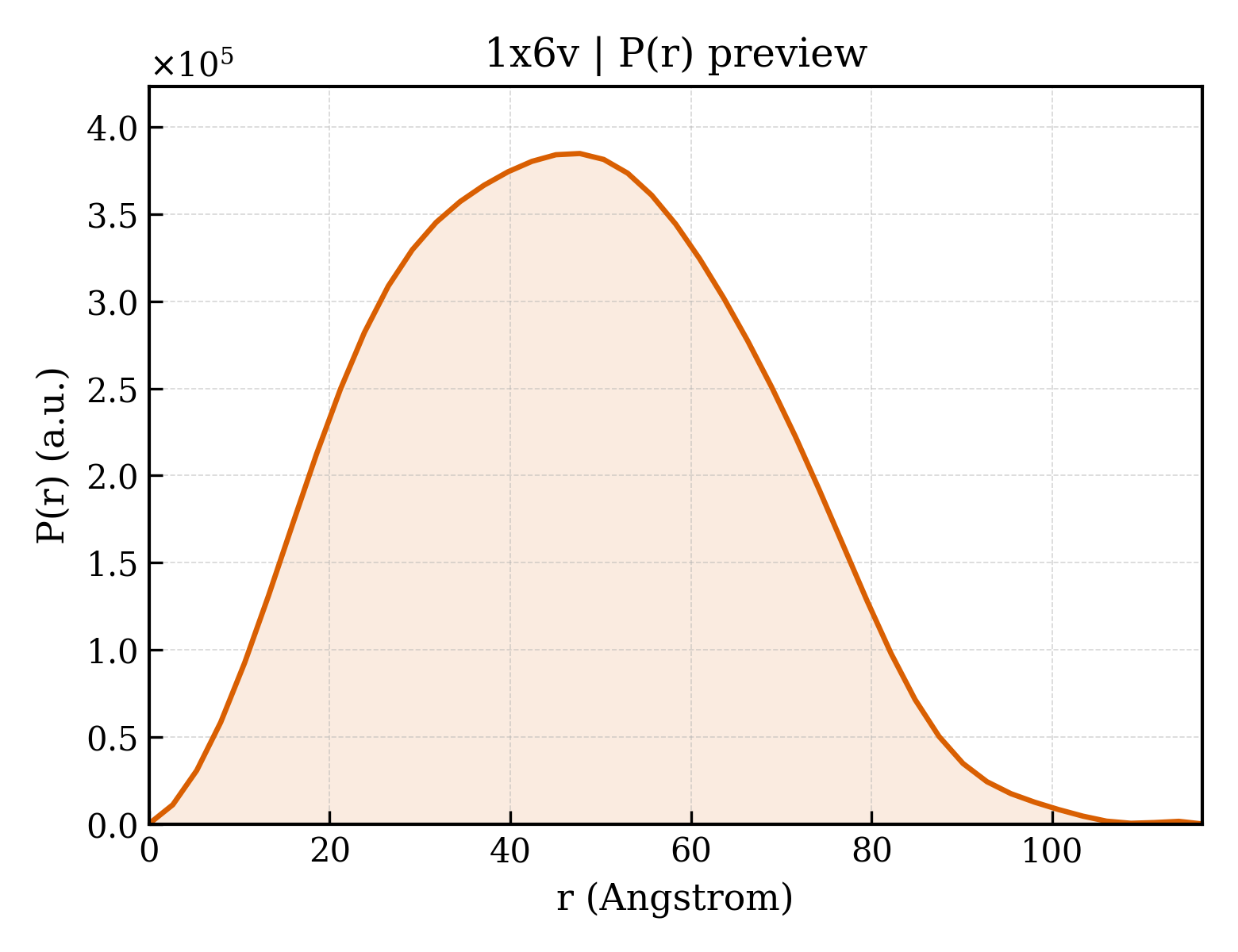

1x6v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.88 Å
Rg (electron density)	35.03 Å
Total Rg	35.49 Å
Atom count	9221
Residues	1150
Excluded volume	163550 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x6v__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;Bifunctional 3'-phosphoadenosine 5'-phosphosulfate synthetase 1 ;
Molecular weight formula_weight	71698.9 kDa
EC 编号 ec_number	2.7.7.4, 2.7.1.25
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	10326

MEIPGSLCKKVKLSNNAQNWGMQRATNVTYQAHHVSRNKRGQVVGTRGGFRGCTVWLTGLSGAGKTTVSMALEEYLVCHGIPCYTLDGDNIRQGLNKNLGFSPEDREENVRRIAEVAKLFADAGLVCITSFISPYTQDRNNARQIHEGASLPFFEVFVDAPLHVCEQRDVKGLYKKARAGEIKGFTGIDSEYEKPEAPELVLKTDSCDVNDCVQQVVELLQERDIVPVDASYEVKELYVPENKLHLAKTDAETLPALKINKVDMQWVQVLAEGWATPLNGFMREREYLQCLHFDCLLDGGVINLSVPIVLTATHEDKERLDGCTAFALMYEGRRVAILRNPEFFEHRKEERCARQWGTTCKNHPYIKMVMEQGDWLIGGDLQVLDRVYWNDGLDQYRLTPTELKQKFKDMNADAVSAFQLRNPVHNGHALLMQDTHKQLLERGYRRPVLLLHPLGGWTKDDDVPLMWRMKQHAAVLEEGVLNPETTVVAIFPSPMMYAGPTEVQWHCRARMVAGANFYIVGRDPAGMPHPETGKDLYEPSHGAKVLTMAPGLITLEIVPFRVAAYNKKKKRMDYYDSEHHEDFEFISGTRMRKLAREGQKPPEGFMAPKAWTVLTEYYKSLEKAHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1091

▼

6. Fold Classification (SCOP + CATH) 13 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1x6va1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1x6va2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1x6va3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.4 — Adenosine-5'phosphosulfate kinase (APS kinase)

Domain ID domain_id	d1x6va4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1x6vb1
Class class	b — All beta proteins
Fold Fold fold	b.122 — PUA domain-like
Superfamily Superfamily superfamily	b.122.1 — PUA domain-like
Family Family family	b.122.1.3 — ATP sulfurylase N-terminal domain

Domain ID domain_id	d1x6vb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.5 — ATP sulfurylase catalytic domain

Domain ID domain_id	d1x6vb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.4 — Adenosine-5'phosphosulfate kinase (APS kinase)

CATH v4.4 (6 domains)

Domain ID domain_id	1x6vA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1x6vA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1x6vA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1x6vB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1x6vB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	400 — Sulfate adenylyltransferase
Homologous superfamily homologous superfamily	10 — Sulfate adenylyltransferase

Domain ID domain_id	1x6vB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	78.210 Å
Unit-cell length b length_b	82.550 Å
Unit-cell length c length_c	133.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.10 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	129.100 Å
R factor r_factor	0.1679
R_work r_work	0.1663
R_free r_free	0.1981
