SAXSdb — 1x82

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-6-phosphate isomerase

Pyrococcus furiosus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	5-PHOSPHOARABINONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G6PI_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–190； UniProt 1–189

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x82
Deposition date deposition_date	2004-08-17
Structure title title	CRYSTAL STRUCTURE OF PHOSPHOGLUCOSE ISOMERASE FROM PYROCOCCUS FURIOSUS WITH BOUND 5-phospho-D-arabinonate
Keywords keywords	;CUPIN SUPERFAMILY, PYROCOCCUS FURIOSUS, HYPERTHERMOPHILE, PHOSPHOGLUCOSE ISOMERASE, EXTREMEOPHILE, 5-phospho-D-arabinonate, METAL BINDING PROTEIN ;; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x82__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1x82__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

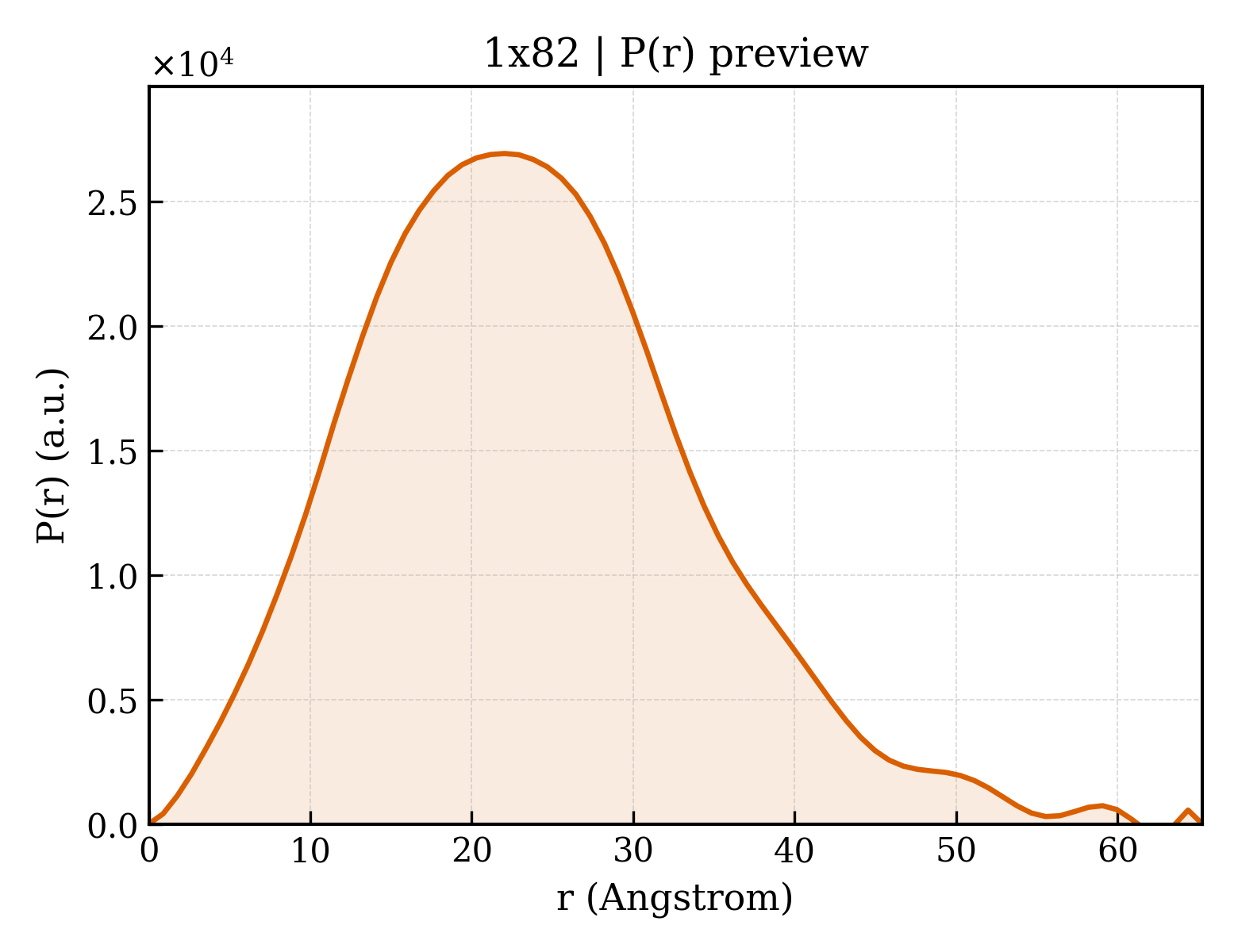

1x82__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.85 Å
Rg (electron density)	22.97 Å
Total Rg	23.85 Å
Atom count	3086
Residues	370
Excluded volume	55317 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x82__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Glucose-6-phosphate isomerase
Molecular weight formula_weight	21871.1 kDa
EC 编号 ec_number	5.3.1.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1789

MMYKEPFGVKVDFETGIIEGAKKSVRRLSDMEGYFVDERAWKELVEKEDPVVYEVYAVEQEEKEGDLNFATTVLYPGKVGKEFFFTKGHFHAKLDRAEVYVALKGKGGMLLQTPEGDAKWISMEPGTVVYVPPYWAHRTVNIGDEPFIFLAIYPADAGHDYGTIAEKGFSKIVIEENGEVKVVDNPRWKK

Source Source

Source organism organism	Pyrococcus furiosus
NCBI taxonomy ID ncbi_taxonomy_id	2261
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	5-PHOSPHOARABINONIC ACID
Molecular weight formula_weight	246.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	246

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1x82a1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.7 — Glucose-6-phosphate isomerase, GPI

Domain ID domain_id	d1x82a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1x82A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

▶

Unit-cell length a length_a	84.506 Å
Unit-cell length b length_b	42.730 Å
Unit-cell length c length_c	57.308 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	120.32 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1630
R_work r_work	0.1608
R_free r_free	0.2082
