SAXSdb — 1x8j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

retinol dehydratase

Spodoptera frugiperda

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 ADENOSINE-3'-5'-DIPHOSPHATE × 2 Androsterone × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q26490_SPOFR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–351； UniProt 1–351 Author chain B； PDBConstruct 1–351； UniProt 1–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x8j
Deposition date deposition_date	2004-08-18
Structure title title	Crystal structure of retinol dehydratase in complex with androsterone and inactive cofactor PAP
Keywords keywords	sulfotransferase, dehydratase, steroid binding., TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x8j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1x8j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

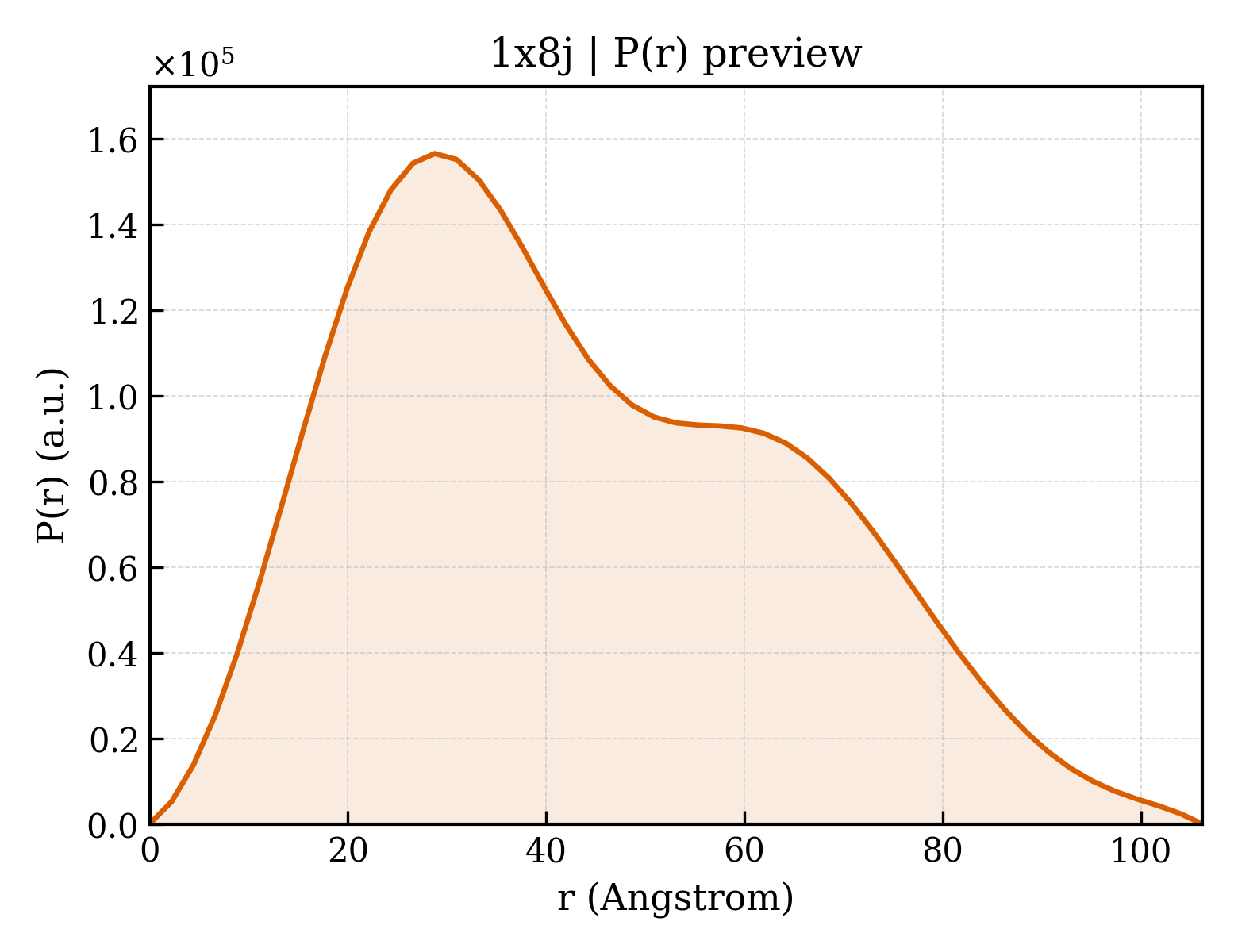

1x8j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.11 Å
Rg (electron density)	32.87 Å
Total Rg	33.39 Å
Atom count	5802
Residues	686
Excluded volume	103700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x8j__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	retinol dehydratase
Molecular weight formula_weight	41523.4 kDa
Mutation mutation	C258S,C279S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5944

MEKQQDLPFPYEFRELNPEEDKLVKANLGAFPTTYVKLGPKGYMVYRPYLKDAANIYNMPLRPTDVFVASYQRSGTTMTQELVWLIENDLNFEAAKTYMSLRYIYLDGFMIYDPEKQEEYNDILPNPENLDMERYLGLLEYSSRPGSSLLAAVPPTEKRFVKTHLPLSLMPPNMLDTVKMVYLARDPRDVAVSSFHHARLLYLLNKQSNFKDFWEMFHRGLYTLTPYFEHVKEAWAKRHDPNMLFLFYEDYLKDLPGSIARIADFLGKKLSEEQIQRLSEHLNFEKFKNNGAVNMEDYREIGILADGEHFIRKGKAGCWRDYFDEEMTKQAEKWIKDNLKDTDLRYPNMEL

Source Source

Source organism organism	Spodoptera frugiperda
Common name common_name	fall armyworm
NCBI taxonomy ID ncbi_taxonomy_id	7108
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-3'-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	Androsterone
Molecular weight formula_weight	290.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	134

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1x8ja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.5 — PAPS sulfotransferase

Domain ID domain_id	d1x8jb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.5 — PAPS sulfotransferase

CATH v4.4 (2 domains)

Domain ID domain_id	1x8jA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1x8jB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	81.767 Å
Unit-cell length b length_b	66.762 Å
Unit-cell length c length_c	84.503 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.17 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	28.160 Å
R factor r_factor	—
R_work r_work	0.2201
R_free r_free	0.2454
