1xcq

Complex HCV core-Fab 19D9D6-Protein L mutant (D55A,L57H,Y64W) in space group P21

Method: X-RAY DIFFRACTION D_max: 194.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

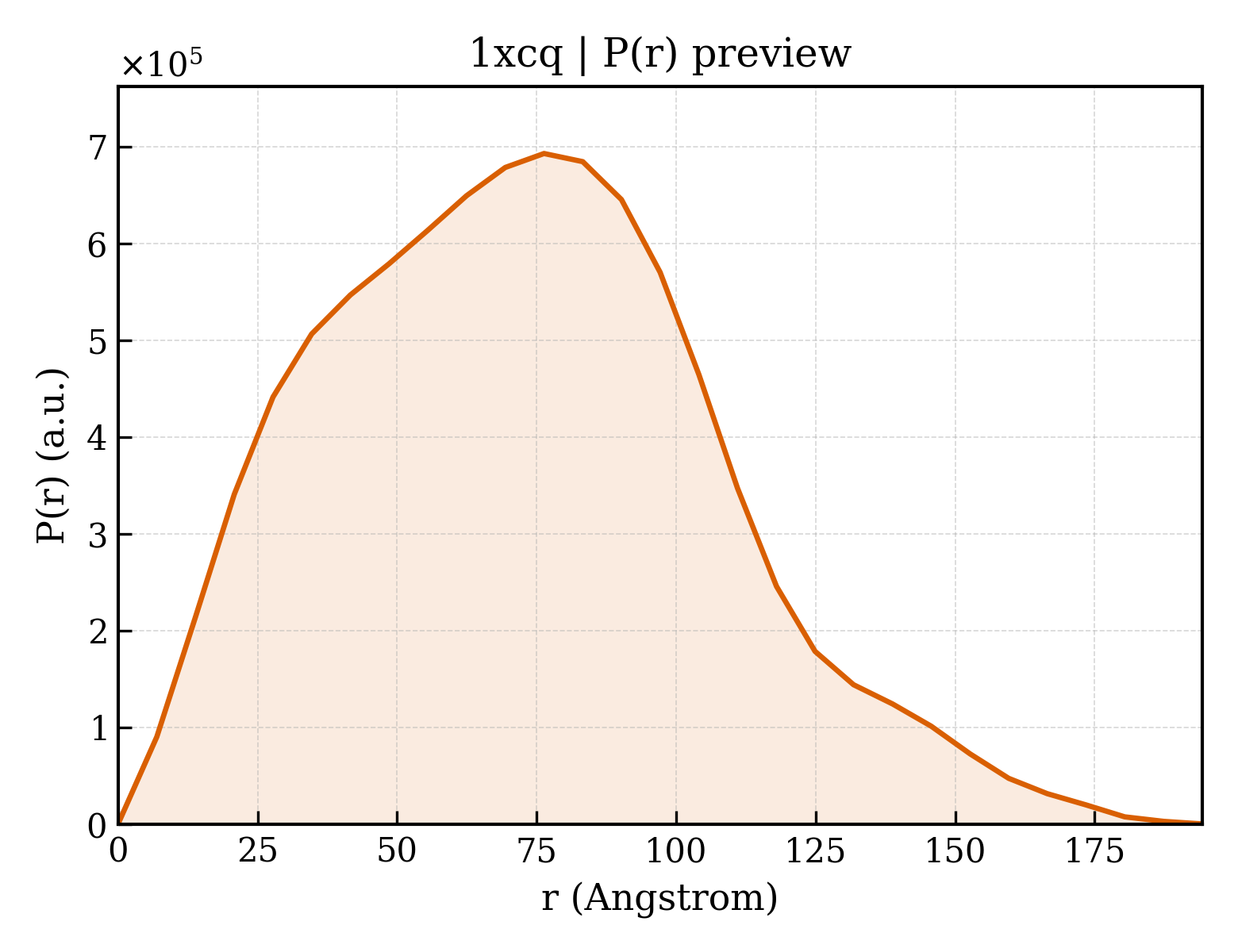

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xcq
沉积日期 deposition_date	2004-09-03
结构标题 title	Complex HCV core-Fab 19D9D6-Protein L mutant (D55A,L57H,Y64W) in space group P21
关键词 keywords	Crystal packing, Fab, protein L, Peptide complex, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.37 Å
回转半径 Rg (电子) rg_electron	56.24 Å
零角强度 I(0) i0	788004000.00
分子量 molecular_weight	231130.0 kDa
排除体积 excluded_volume	288090 Å³
包络体积 envelope_volume	478440 Å³
水化壳体积 shell_volume	74638 Å³
包络直径 envelope_diameter	198.7 Å
壳层 Rg shell_rg	55.05 Å
包络 Rg envelope_rg	54.12 Å
形状 Rg shape_rg	56.19 Å
总 Rg total_rg	56.37 Å
总原子数 total_atoms	16281
残基数 n_residues	2117
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	194.3 Å
Rg (实空间) rg_real	56.54 Å
Rg 误差 (实空间) rg_real_error	2.54 Å
I(0) (实空间) i0_real	7.8800e+08
I(0) 误差 (实空间) i0_real_error	1.7930e+07
Rg (倒空间) rg_reciprocal	56.21 Å
I(0) (倒空间) i0_reciprocal	787600000.0000
解质量估计 total_estimate	0.8441
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	76.3 Å
偏度 Skewness skewness	0.347
峰度 Kurtosis kurtosis	-0.240
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	30850000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.560

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Capsid protein C
分子量 formula_weight	4909.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,Q,S
原子数 atom_count	16467

STNPKPQRKTKRNTNRRPQDVKFPGGGQIVGGVYLLPRRGPRLG

Entity 2 polymer

描述 description	Monoclonal antibody 19D9D6 Light chain
分子量 formula_weight	24334.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G

DIVMSQSPSSLAVSAGEKVTMSCKSSQSLLNSRTRKNYLAWYQQKPGQSPKVLIYWASTRESGVPDRFTGRGSGTDFTLTISSVQAEDQAVYYCKQAYIPPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 3 polymer

描述 description	Monoclonal antibody 19D9D6 Heavy chain
分子量 formula_weight	23563.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

QIQLVQSGPELKKPGETVKISCKASGYTFTDFSMHWVNQAPGKGLNWMGWVNTETGEPTYADDFKGRFAFSLETSASTAYLQINSLKNEDTATYFCARFLLRQYFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR

Entity 4 polymer

描述 description	Protein L
分子量 formula_weight	8903.0 kDa
突变 mutation	D55A,L57H,Y64W
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M,N,O

MNIKFAGKEKTPEEPKEEVTIKVNLIFADGKIQTAEFKGTFEEATAEAYRYAALHAKVNGEWTADLEDGGNHMNIKFAGK

来源 Source

来源生物 organism	Finegoldia magna
NCBI 分类编号 ncbi_taxonomy_id	334413
宿主生物 host_organism	Escherichia coli

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	186

▼

6. 折叠分类 (SCOP + CATH) 20 domains

CATH v4.4 (20 domains)

结构域编号 domain_id	1xcqA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqE02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqF01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqF02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqG01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqG02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1xcqL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1xcqM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1xcqN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1xcqO00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	43.603 Å
晶胞边长 b length_b	230.522 Å
晶胞边长 c length_c	123.645 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.67 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	21.620 Å
R 因子 r_factor	0.1952
R_work r_work	0.1916
R_free r_free	0.2638

fit	/app/data/saxs_computation/xc/1xcq/1xcq.fit
pddf	/app/data/pr_computation/xc/1xcq/1xcq.pr.out
profile	/app/data/saxs_computation/xc/1xcq/1xcq.dat
