SAXSdb — 1xjj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ribonucleotide reductase, B12-dependent

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O33839_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–644； UniProt 1–644 Author chain B； PDBConstruct 1–644； UniProt 1–644

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xjj
Deposition date deposition_date	2004-09-23
Structure title title	Structural mechanism of allosteric substrate specificity in a ribonucleotide reductase: dGTP complex
Keywords keywords	;ribonucleotide reductase, 10 alpha-beta barrel, allosteric regulation, substrate specificity, protein-nucleotide complex, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xjj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xjj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

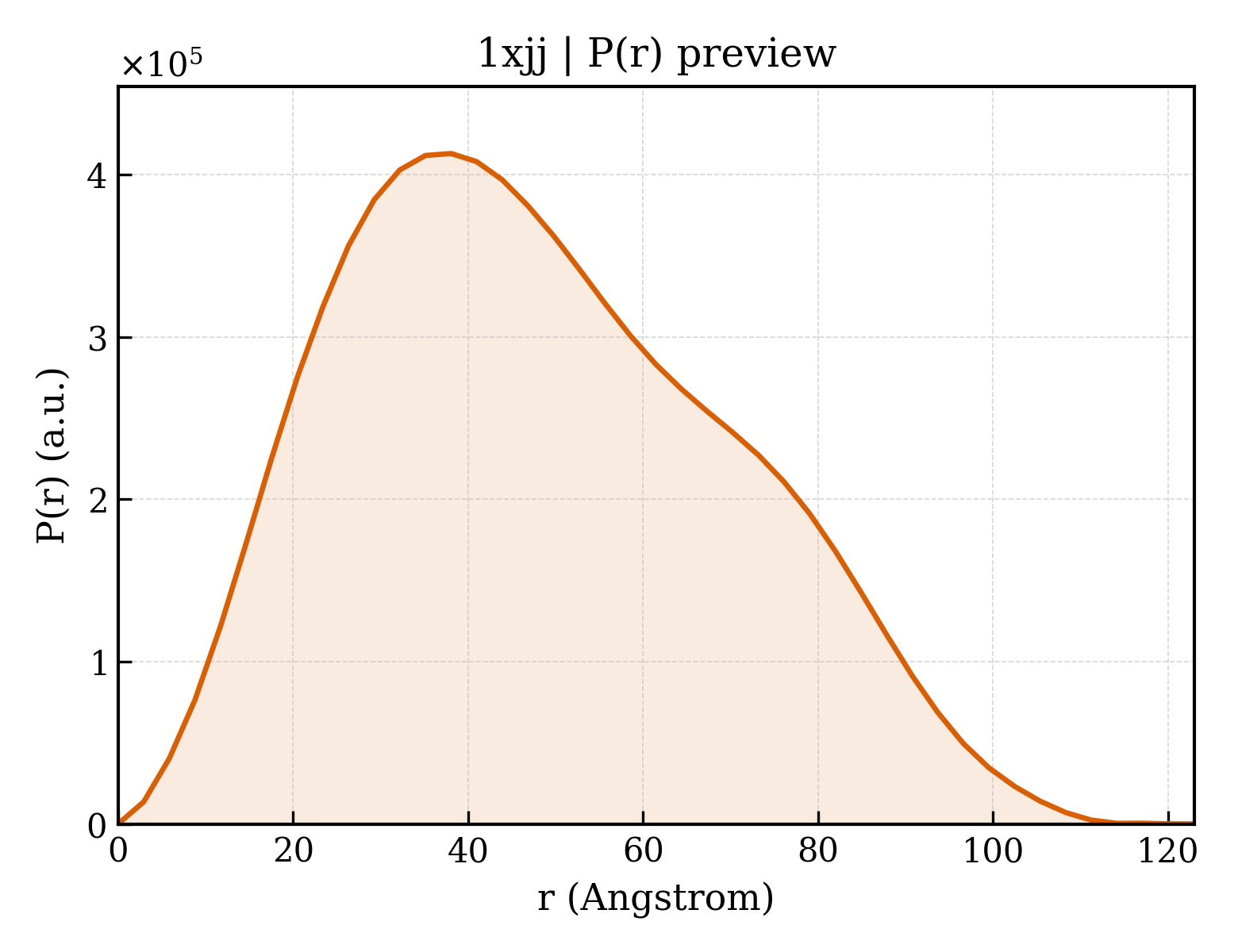

1xjj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.22 Å
Rg (electron density)	37.08 Å
Total Rg	37.46 Å
Atom count	10041
Residues	1234
Excluded volume	179600 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xjj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ribonucleotide reductase, B12-dependent
Molecular weight formula_weight	73374.2 kDa
EC 编号 ec_number	1.17.4.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10591

MKLSDLISRWIDVEPSKNAQIILRDRYFMKDLDGNYLETKWEDVARRVARVVATAELLNPSYKKNEKLDRIKEWEDIFFRVLKARLFIPNSPTLFNAGLGVKHDLLWKPIDQMTLEDYEEIYRSRNHLHMLSACFVVPVGDSIEEIFEAVKEYALITKVGGGVGSNFSELRPKGSFVAGTHGKASGPVSFMHVFNSAISVVKQGSRRRGALMGILNINHPDIEEFIDAKKENTGEAVLNFFNLSVGFPMDKKEILKLYEEDGELELSHPRSTIRKKVKIRELFRKIATNAWKSGDPGLAFLGEMNKYYPLYPHRKINSTNPCGEIGLSDYEACNLGSIDVAKFYNNGFVDLEALQELVQIAVRFLDNVIDVNVFPIDKITKAVKESRRLGLGIMGFADLLYKLEIPYNSQEARDFAANLMAFIALHAHRTSYELGKEKGNFPLLEISRYRTEDNFVPFAMGMSNYDDEIREVMKMTKEFRRNVALLTIAPTGSISNIADTSSGLEPNFLLAYTRFVTKEDGTKEPLLYVNQVLREKLNPEILKRIEKELIEKGSLKDIPDVPEKIKKVFVVALDIDPMDHLLMQDAFQRYVDNNISKTINMPQSATVDDVLNVYLEALRTNVRGITVYRDGSLQTQVLTKALKT

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	550

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1xjjA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1xjjB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	118.070 Å
Unit-cell length b length_b	123.880 Å
Unit-cell length c length_c	106.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.860 Å
Low-resolution limit resolution_low	42.260 Å
R factor r_factor	0.1985
R_work r_work	0.1962
R_free r_free	0.2407
