1xov

The crystal structure of the listeria monocytogenes bacteriophage PSA endolysin PlyPSA

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ply protein

Listeria phage PSA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 SULFATE ION × 1 CHLORIDE ION × 1 GLUTAMIC ACID × 1 LYSINE × 1 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8W5Y8_9CAUD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–326； UniProt 1–314

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xov
Deposition date deposition_date	2004-10-07
Structure title title	The crystal structure of the listeria monocytogenes bacteriophage PSA endolysin PlyPSA
Keywords keywords	alpha/beta hydrolase, multi-domain, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xov__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xov__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

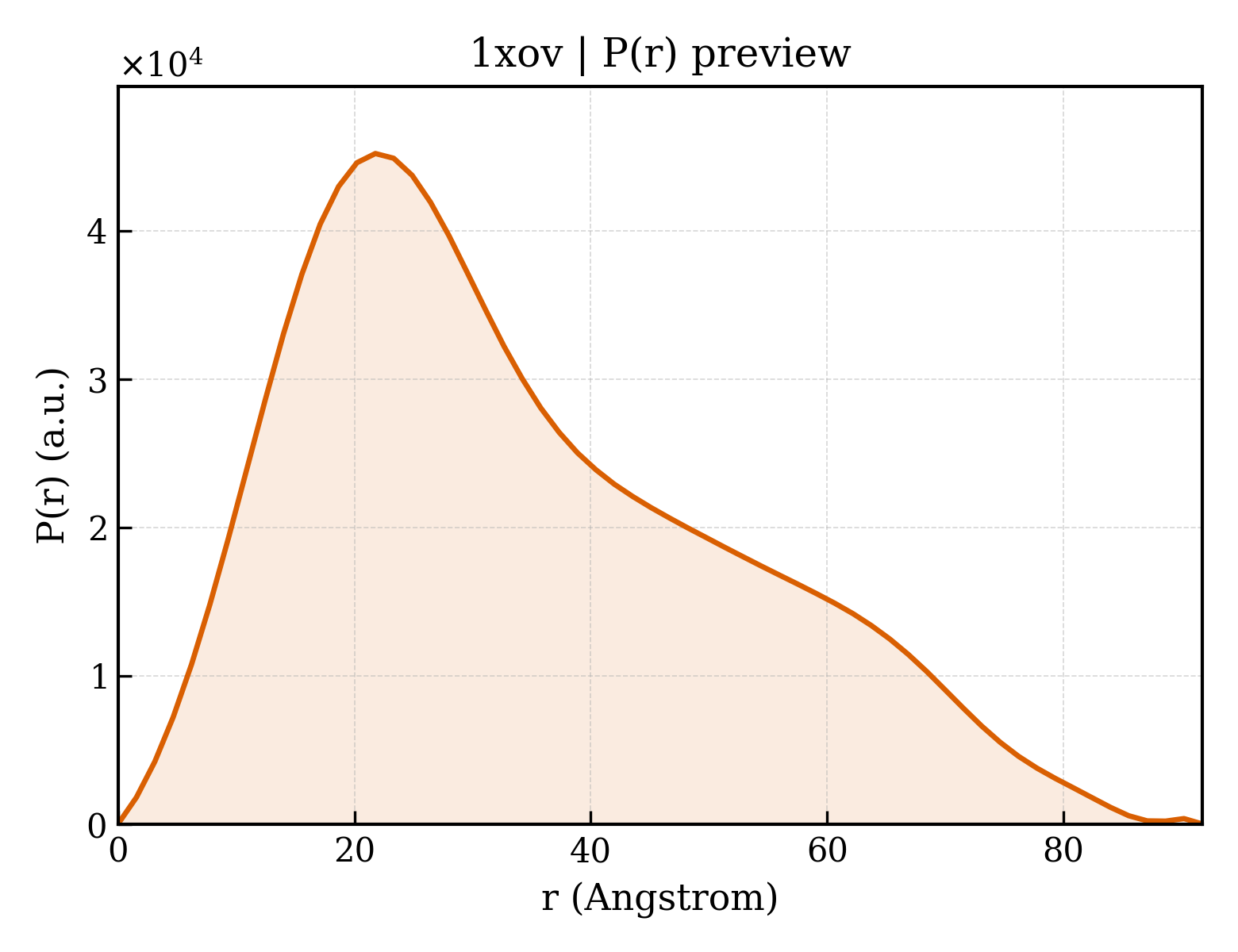

1xov__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.76 Å
Rg (electron density)	26.80 Å
Total Rg	27.46 Å
Atom count	2521
Residues	315
Excluded volume	45063 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xov__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Ply protein
Molecular weight formula_weight	36645.9 kDa
EC 编号 ec_number	3.5.1.28
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2828

ASWSHPQFEKGAMSNYSMSRGHSDKCVGAEDILSEIKEAEKVLNAASDELKREGHNVKTFIDRTSTTQSANLNKIVNWHNANPADVHISVHLNAGKGTGVEVWYYAGDEKGRKLAVEISAKMAKALGLPNRGAKATKDLRFLNSTKGTAVLLEVCFVDRKEDANAIHKSGMYDKLGIAIAEGLTGKTVAAKNPNRHSGAVVDSVPMLSKMDFKSSPIKMYKAGSSLLVYEHNKYWYKAYINDKLCYIYKSFCISNGKKDAKGRIKVRIKSAKDLRIPVWNNTKLNSGKIKWYSPGTKLSWYDNKKGYLELWYEKDGWYYTANYFLK

Source Source

Source organism organism	Listeria phage PSA
NCBI taxonomy ID ncbi_taxonomy_id	171618
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GLUTAMIC ACID
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	LYSINE
Molecular weight formula_weight	147.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	307

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1xova1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.11 — Prokaryotic SH3-related domain
Family Family family	b.34.11.4 — Ply C-terminal domain-like

Domain ID domain_id	d1xova2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
Family Family family	c.56.5.6 — N-acetylmuramoyl-L-alanine amidase-like

Domain ID domain_id	d1xova3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	1xovA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	40 — Zn-dependent exopeptidases

Domain ID domain_id	1xovA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	1xovA03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

Unit-cell length a length_a	90.586 Å
Unit-cell length b length_b	90.586 Å
Unit-cell length c length_c	213.667 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.1716
R_work r_work	0.1702
R_free r_free	0.1983
