1xpy

Structural Basis for Catalytic Racemization and Substrate Specificity of an N-Acylamino Acid Racemase Homologue from Deinococcus radiodurans

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N-acylamino acid racemase

Deinococcus radiodurans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 N~2~-ACETYL-L-GLUTAMINE × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 N~2~-ACETYL-L-GLUTAMINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9RYA6_DEIRA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–375； UniProt 1–375 Author chain B； PDBConstruct 1–375； UniProt 1–375 Author chain C； PDBConstruct 1–375； UniProt 1–375 Author chain D； PDBConstruct 1–375； UniProt 1–375

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xpy
Deposition date deposition_date	2004-10-10
Structure title title	Structural Basis for Catalytic Racemization and Substrate Specificity of an N-Acylamino Acid Racemase Homologue from Deinococcus radiodurans
Keywords keywords	RACEMASE, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xpy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xpy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

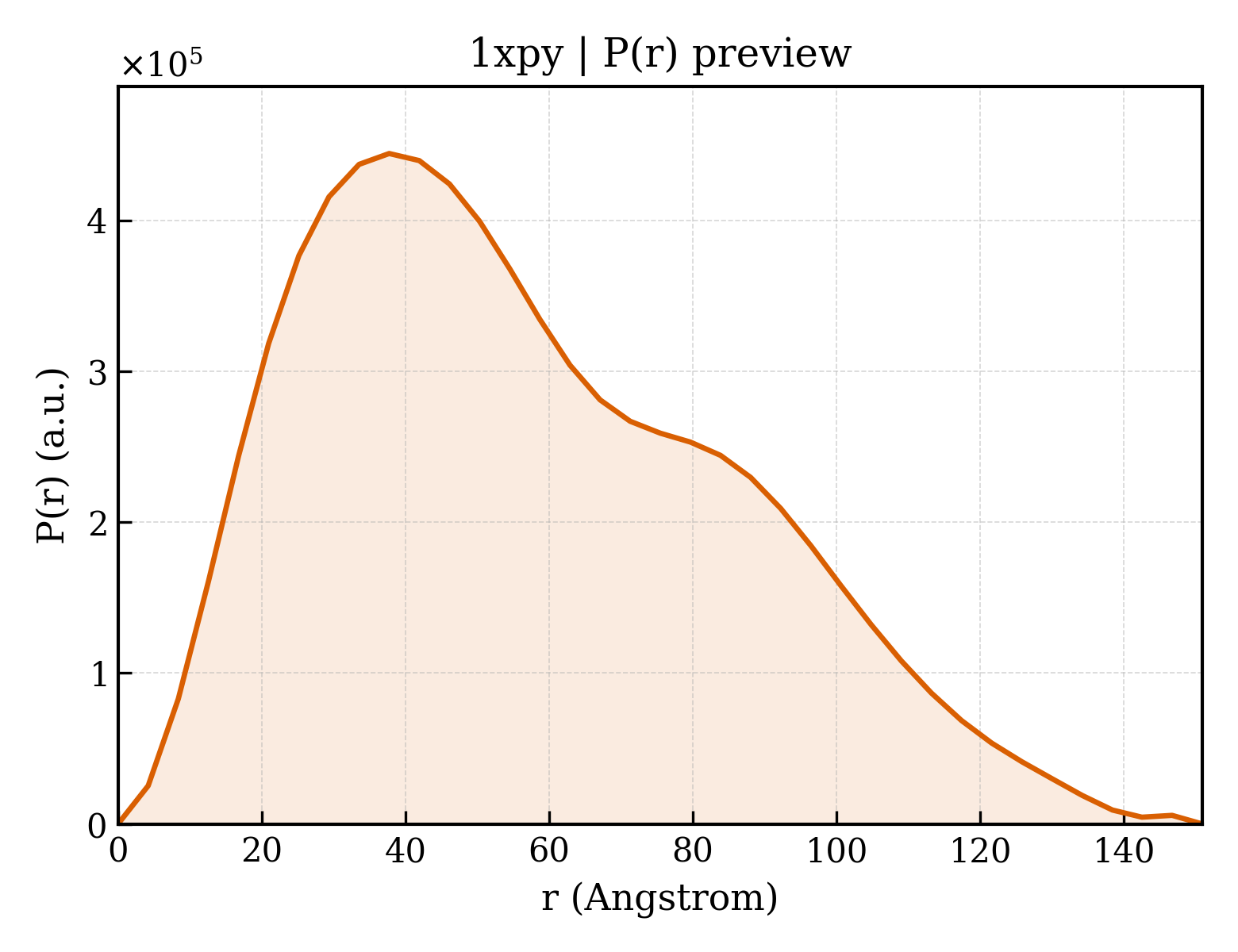

1xpy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.98 Å
Rg (electron density)	26.98 Å
Total Rg	27.71 Å
Atom count	5633
Residues	730
Excluded volume	99740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xpy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1xpy__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	N-acylamino acid racemase
Molecular weight formula_weight	41060.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12108

MAHTGRMFKIEAAEIVVARLPLKFRFETSFGVQTHKVVPLLILHGEGVQGVAEGTMEARPMYREETIAGALDLLRGTFLPAILGQTFANPEAVSDALGSYRGNRMARAMVEMAAWDLWARTLGVPLGTLLGGHKEQVEVGVSLGIQADEQATVDLVRRHVEQGYRRIKLKIKPGWDVQPVRATREAFPDIRLTVDANSAYTLADAGRLRQLDEYDLTYIEQPLAWDDLVDHAELARRIRTPLCLDESVASASDARKALALGAGGVINLKVARVGGHAESRRVHDVAQSFGAPVWCGGMLESGIGRAHNIHLSTLSNFRLPGDTSSASRYWERDLIQEPLEAVDGLMPVPQGPGTGVTLDREFLATVTEAQEEHRA

Source Source

Source organism organism	Deinococcus radiodurans
NCBI taxonomy ID ncbi_taxonomy_id	1299
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	N~2~-ACETYL-L-GLUTAMINE
Molecular weight formula_weight	188.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	842

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1xpya1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1xpya2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1xpyb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1xpyb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1xpyc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1xpyc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1xpyd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1xpyd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

CATH v4.4 (8 domains)

Domain ID domain_id	1xpyA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1xpyA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1xpyB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1xpyB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1xpyC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1xpyC02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1xpyD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1xpyD02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

▶

Unit-cell length a length_a	116.159 Å
Unit-cell length b length_b	116.159 Å
Unit-cell length c length_c	120.426 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4
Space-group number int_tables_number	75
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1740
R_work r_work	0.1712
R_free r_free	0.2274
