SAXSdb — 1xuz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

polysialic acid capsule biosynthesis protein SiaC

Neisseria meningitidis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	5-DEOXY-5-{[(1S)-1-HYDROXYETHYL]AMINO}-D-GLUCITOL × 2 MANGANESE (II) ION × 2 PHOSPHOENOLPYRUVATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q57265_NEIME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–349； UniProt 1–349

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xuz
Deposition date deposition_date	2004-10-26
Structure title title	Crystal structure analysis of sialic acid synthase (NeuB)from Neisseria meningitidis, bound to Mn2+, Phosphoenolpyruvate, and N-acetyl mannosaminitol
Keywords keywords	TIM barrel, Antifreeze-like domain, Domain-swapped dimer, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xuz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xuz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

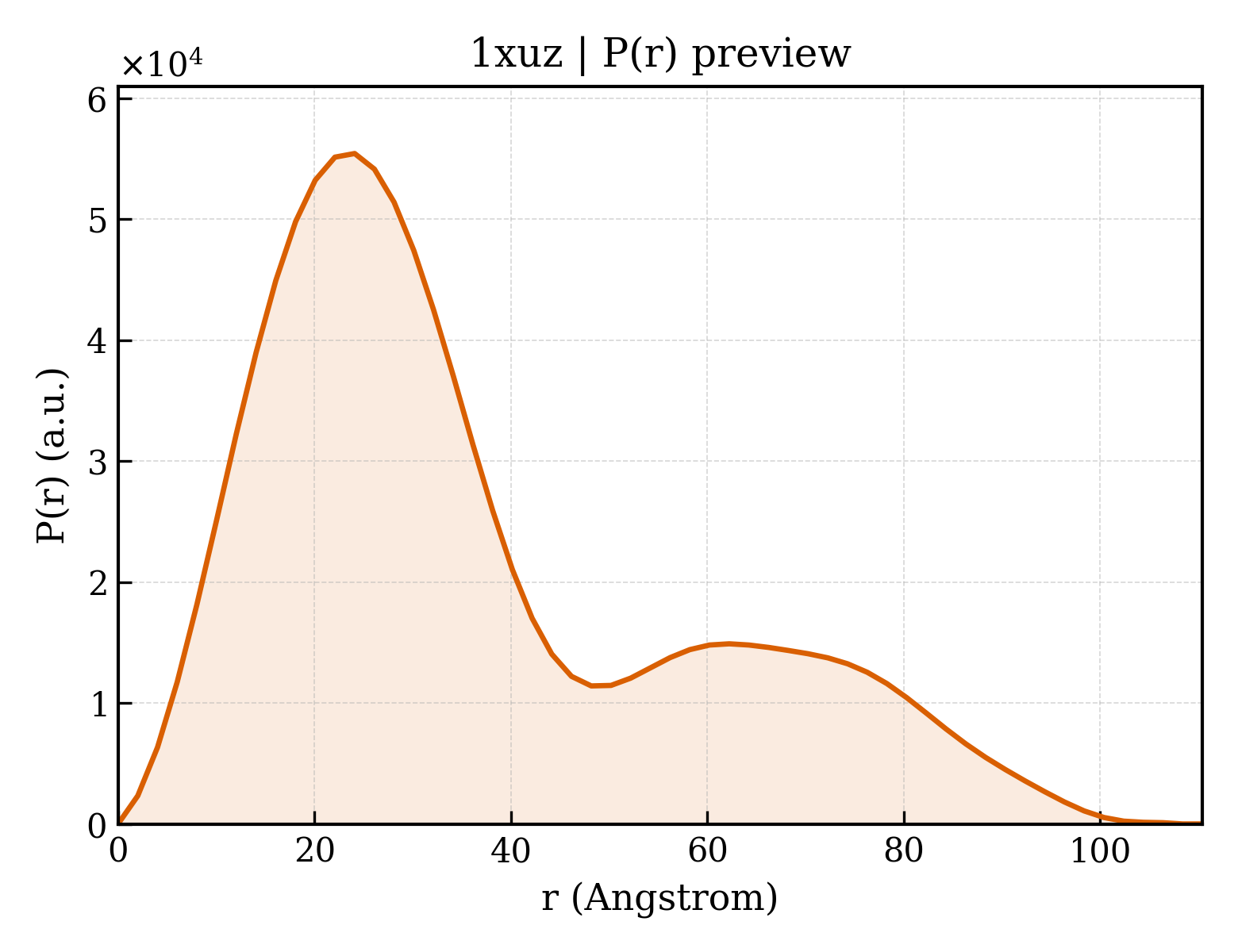

1xuz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.22 Å
Rg (electron density)	31.37 Å
Total Rg	31.73 Å
Atom count	5414
Residues	696
Excluded volume	96386 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xuz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	polysialic acid capsule biosynthesis protein SiaC
Molecular weight formula_weight	38395.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2962

MQNNNEFKIGNRSVGYNHEPLIICEIGINHEGSLKTAFEMVDAAYNAGAEVVKHQTHIVEDEMSDEAKQVIPGNADVSIYEIMERCALNEEDEIKLKEYVESKGMIFISTPFSRAAALRLQRMDIPAYKIGSGECNNYPLIKLVASFGKPIILSTGMNSIESIKKSVEIIREAGVPYALLHCTNIYPTPYEDVRLGGMNDLSEAFPDAIIGLSDHTLDNYACLGAVALGGSILERHFTDRMDRPGPDIVCSMNPDTFKELKQGAHALKLARGGKKDTIIAGEKPTKDFAFASVVADKDIKKGELLSGDNLWVKRPGNGDFSVNEYETLFGKVAACNIRKGAQIKKTDIE

Source Source

Source organism organism	Neisseria meningitidis
NCBI taxonomy ID ncbi_taxonomy_id	487
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	5-DEOXY-5-{[(1S)-1-HYDROXYETHYL]AMINO}-D-GLUCITOL
Molecular weight formula_weight	225.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOENOLPYRUVATE
Molecular weight formula_weight	168.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	255

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1xuza1
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.1 — AFP III-like domain
Family Family family	b.85.1.1 — AFP III-like domain

Domain ID domain_id	d1xuza2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.6 — NeuB-like

CATH v4.4 (2 domains)

Domain ID domain_id	1xuzA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1xuzA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1210 — Type Iii Antifreeze Protein Isoform Hplc 12
Homologous superfamily homologous superfamily	10 — Antifreeze-like/N-acetylneuraminic acid synthase C-terminal domain

▶

Unit-cell length a length_a	58.531 Å
Unit-cell length b length_b	75.654 Å
Unit-cell length c length_c	77.866 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1863
R_work r_work	0.1863
R_free r_free	0.2481
