SAXSdb — 1xvw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein Rv2238c/MT2298

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Y2238_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–160； UniProt 1–153 Author chain B； PDBConstruct 8–160； UniProt 1–153

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xvw
Deposition date deposition_date	2004-10-28
Structure title title	Crystal Structure of AhpE from Mycobacterium tuberculosis, a 1-Cys peroxiredoxin
Keywords keywords	;thioredoxin fold, Oxidized cystein sulfenic acid, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xvw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

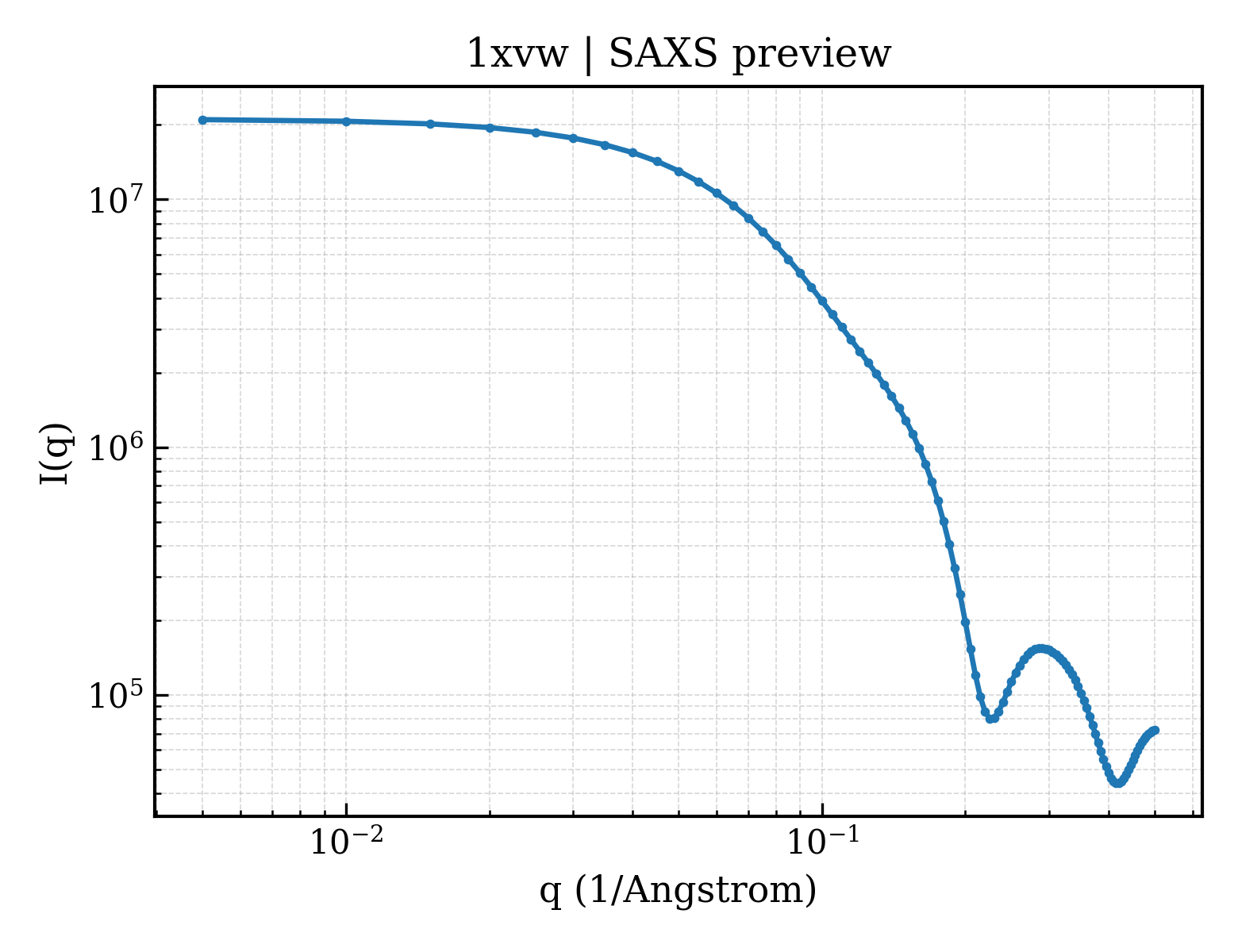

1xvw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

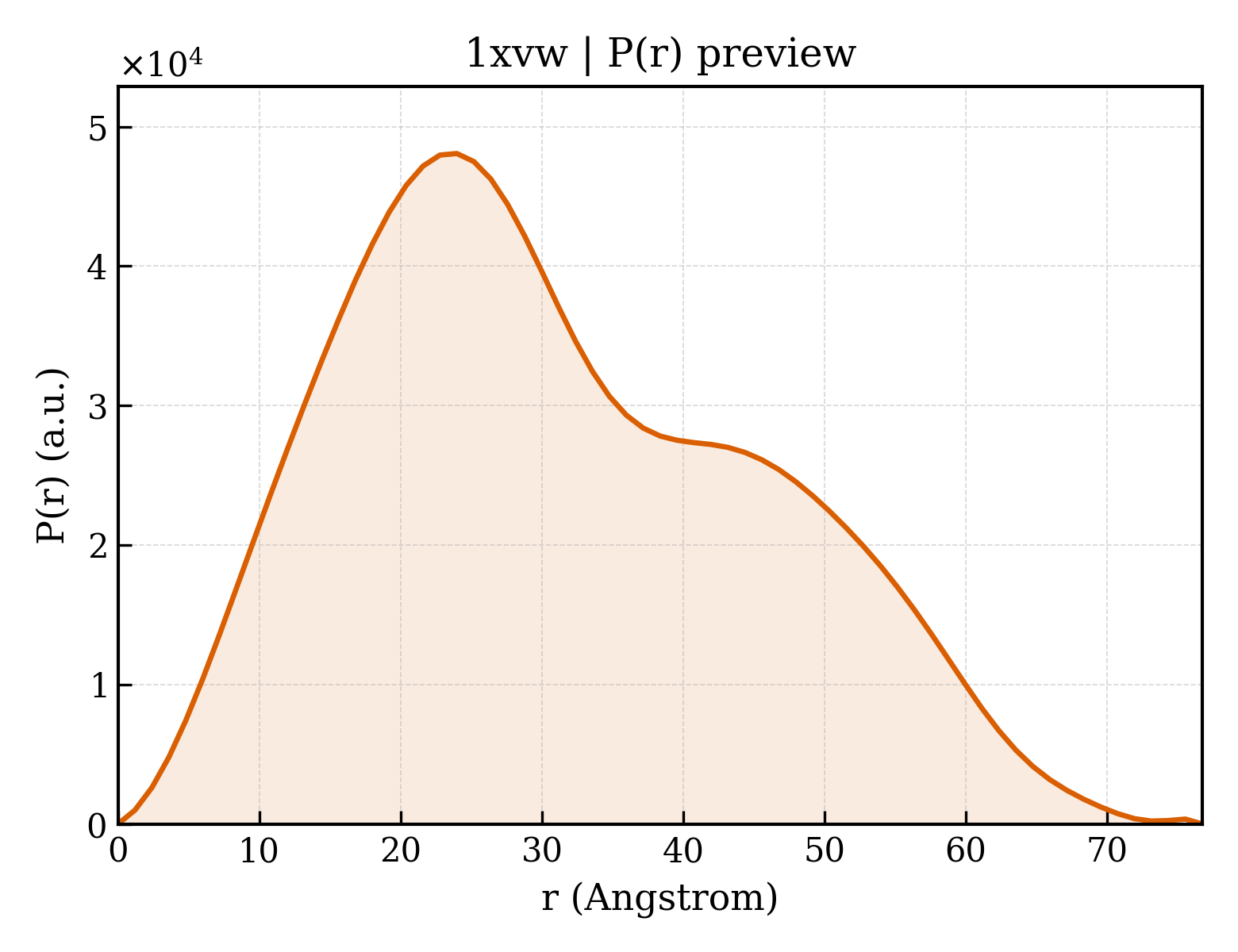

1xvw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.19 Å
Rg (electron density)	42.81 Å
Total Rg	43.15 Å
Atom count	9896
Residues	1264
Excluded volume	174850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xvw__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1xvwa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1xvwa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1xvwb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1xvwb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1xvwA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1xvwB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	147.994 Å
Unit-cell length b length_b	147.994 Å
Unit-cell length c length_c	33.711 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	46.800 Å
R factor r_factor	—
R_work r_work	0.1800
R_free r_free	0.2100

Description description	Hypothetical protein Rv2238c/MT2298
Molecular weight formula_weight	17614.8 kDa
EC 编号 ec_number	1.8.1.-
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2662

Crystal Structure of AhpE from Mycobacterium tuberculosis, a 1-Cys peroxiredoxin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein Rv2238c/MT2298

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1xvw__assembly_1__model_1

1xvw__assembly_1__model_1 | I(q)

1xvw__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	184

Crystal Structure of AhpE from Mycobacterium tuberculosis, a 1-Cys peroxiredoxin
