SAXSdb — 1xwa

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1xwa
沉积日期 deposition_date	2004-10-29
结构标题 title	Drospohila thioredoxin, oxidized, P41212
关键词 keywords	Dimerization, Drosophila melanogaster, redox regulation, thioredoxin, x-ray crystal structure, ELECTRON TRANSPORT; ELECTRON TRANSPORT
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.31 Å
回转半径 Rg (电子) rg_electron	44.86 Å
零角强度 I(0) i0	32466500.00
分子量 molecular_weight	47659.0 kDa
排除体积 excluded_volume	60148 Å³
包络体积 envelope_volume	102830 Å³
水化壳体积 shell_volume	20037 Å³
包络直径 envelope_diameter	119.2 Å
壳层 Rg shell_rg	48.41 Å
包络 Rg envelope_rg	41.29 Å
形状 Rg shape_rg	44.86 Å
总 Rg total_rg	45.10 Å
总原子数 total_atoms	3313
残基数 n_residues	429
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.8 Å
Rg (实空间) rg_real	45.09 Å
Rg 误差 (实空间) rg_real_error	1.27 Å
I(0) (实空间) i0_real	3.2470e+07
I(0) 误差 (实空间) i0_real_error	5.8250e+05
Rg (倒空间) rg_reciprocal	45.31 Å
I(0) (倒空间) i0_reciprocal	32470000.0000
解质量估计 total_estimate	0.5996
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	61.6 Å
偏度 Skewness skewness	-0.342
峰度 Kurtosis kurtosis	-0.967
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	747000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.008; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.769; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	thioredoxin
分子量 formula_weight	12104.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	3731

AAAAAMVYQVKDKADLDGQLTKASGKLVVLDFFATWCGPCKMISPKLVELSTQFADNVVVLKVDVDECEDIAMEYNISSMPTFVFLKNGVKVEEFAGANAKRLEDVIKANI

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI 分类编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CADMIUM ION
分子量 formula_weight	112.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	418

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1xwaa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

结构域编号 domain_id	d1xwaa2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1xwab_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

结构域编号 domain_id	d1xwac_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

结构域编号 domain_id	d1xwad_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.1 — Thioltransferase

CATH v4.4 (4 domains)

结构域编号 domain_id	1xwaA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	1xwaB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	1xwaC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

结构域编号 domain_id	1xwaD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	10 — Glutaredoxin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	92.544 Å
晶胞边长 b length_b	92.544 Å
晶胞边长 c length_c	97.624 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2260
R_free r_free	0.2880

fit	/app/data/saxs_computation/xw/1xwa/1xwa.fit
pddf	/app/data/pr_computation/xw/1xwa/1xwa.pr.out
profile	/app/data/saxs_computation/xw/1xwa/1xwa.dat

Drospohila thioredoxin, oxidized, P41212

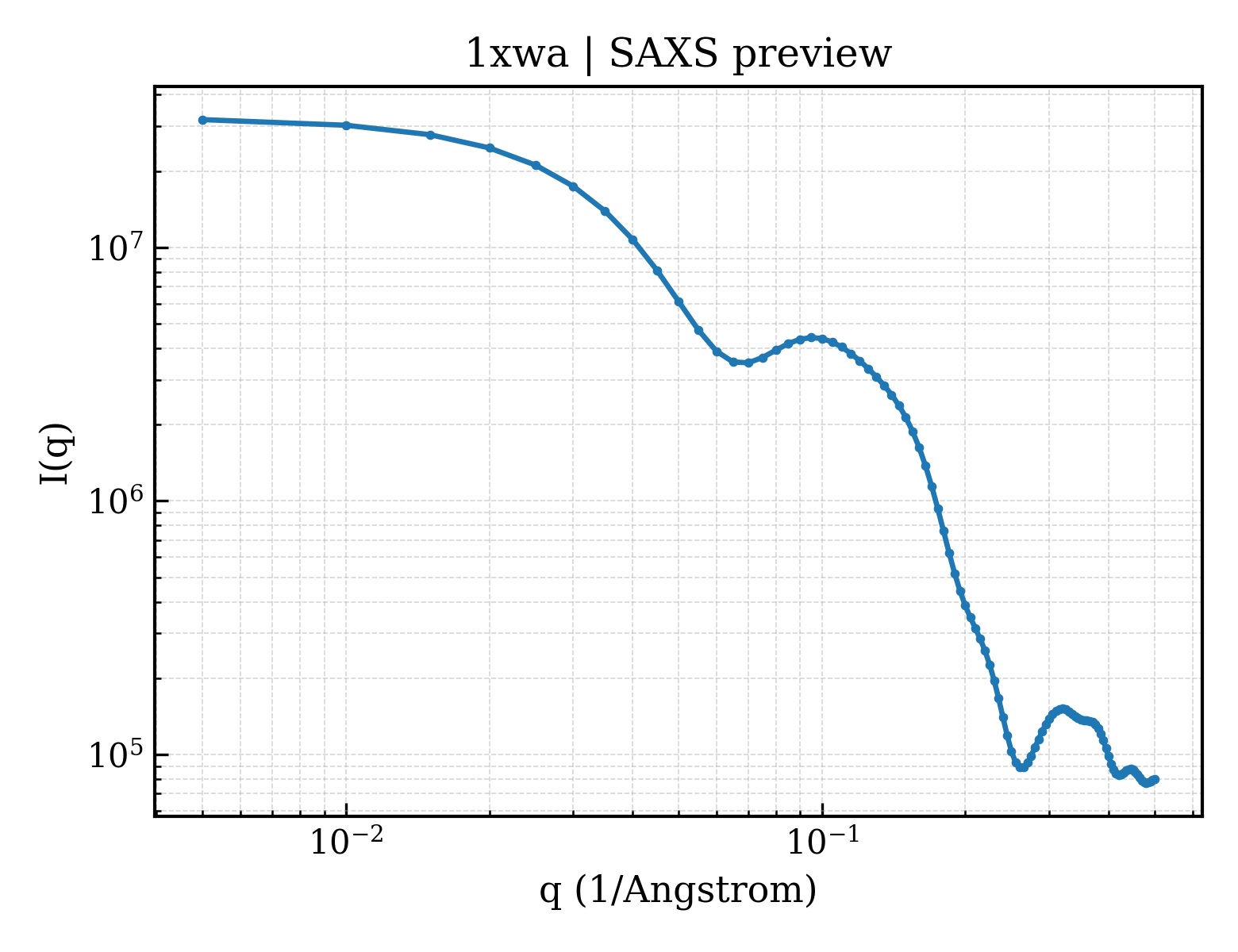

SAXS 散射曲线 SAXS Profile

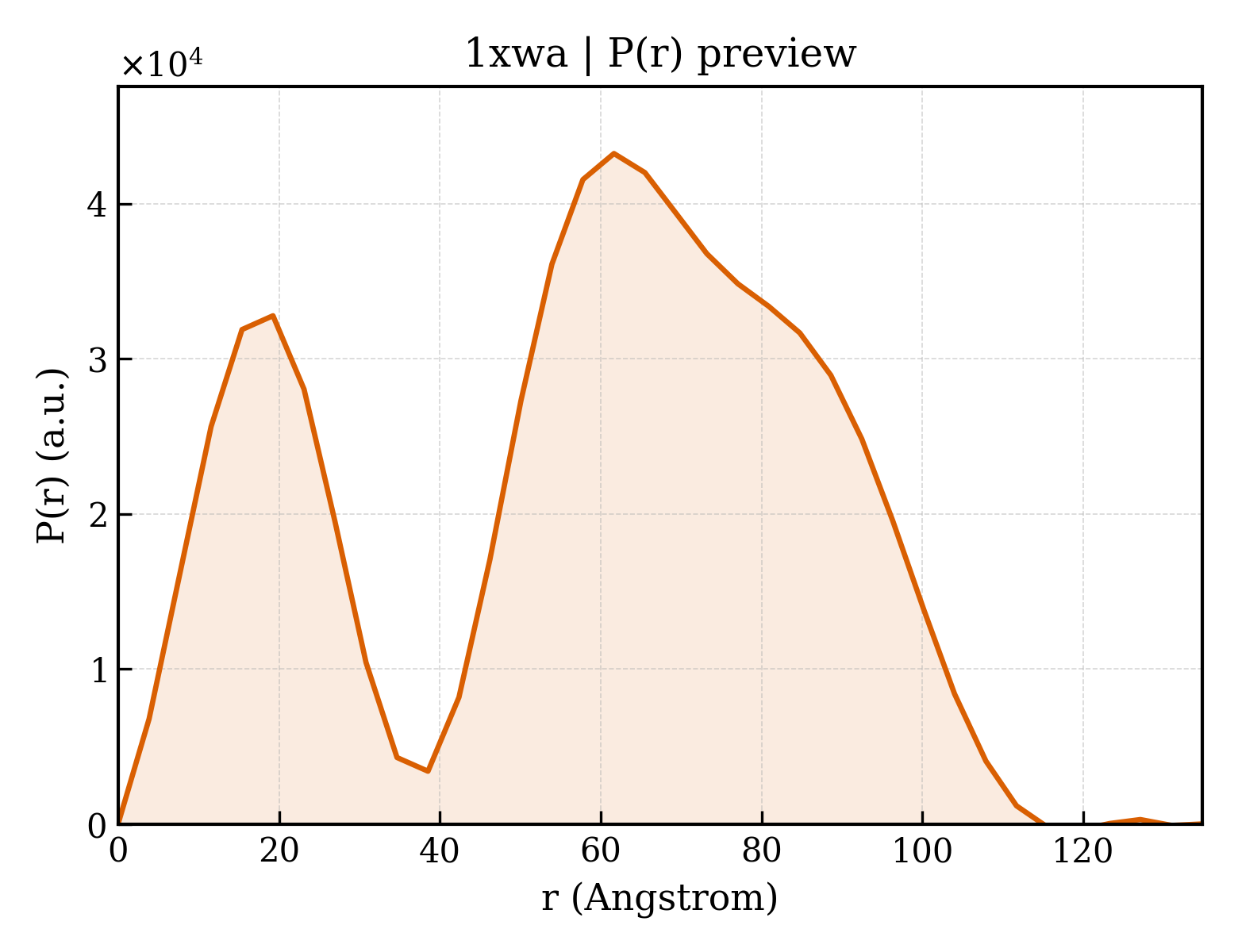

P(r) 距离分布 P(r) Distribution
