SAXSdb — 1xyz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

1,4-BETA-D-XYLAN-XYLANOHYDROLASE

Clostridium thermocellum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XYNZ_CLOTM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–347； UniProt 491–837 Author chain B； PDBConstruct 1–347； UniProt 491–837

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xyz
Deposition date deposition_date	1995-06-07
Structure title title	A COMMON PROTEIN FOLD AND SIMILAR ACTIVE SITE IN TWO DISTINCT FAMILIES OF BETA-GLYCANASES
Keywords keywords	GLYCOSYL HYDROLASE, XYLANASE, FAMILY F/10 OF GLYCOSYL HYDROLASES, CLOSTRIDIUM THERMOCELLUM, GLYCOSYLTRANSFERASE; GLYCOSYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xyz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xyz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

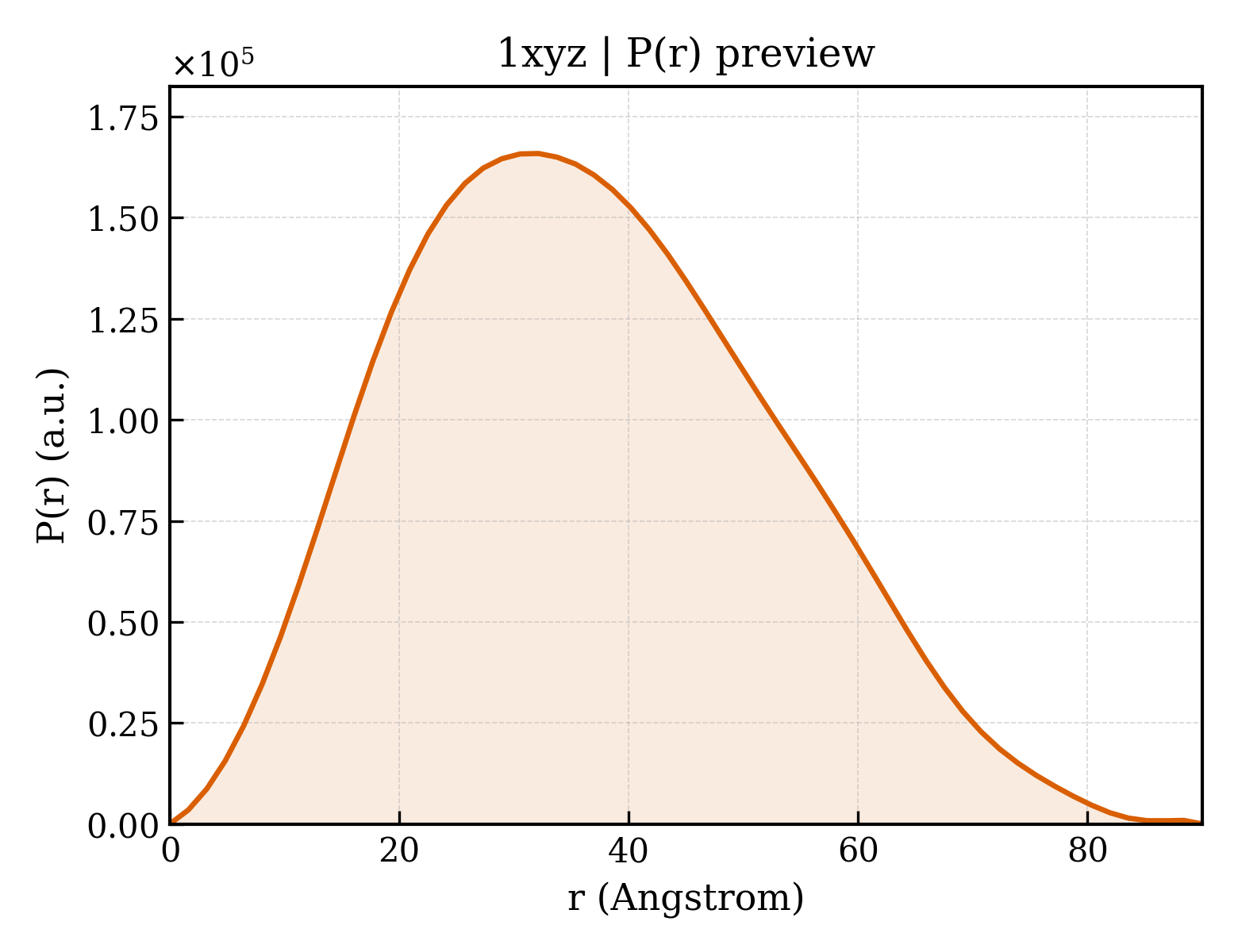

1xyz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.30 Å
Rg (electron density)	19.20 Å
Total Rg	20.04 Å
Atom count	2582
Residues	320
Excluded volume	45583 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xyz__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1xyz__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1xyza_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.3 — beta-glycanases

Domain ID domain_id	d1xyzb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.3 — beta-glycanases

CATH v4.4 (2 domains)

Domain ID domain_id	1xyzA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1xyzB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

Unit-cell length a length_a	47.100 Å
Unit-cell length b length_b	51.100 Å
Unit-cell length c length_c	70.740 Å
Unit-cell angle α angle_alpha	100.54 °
Unit-cell angle β angle_beta	83.79 °
Unit-cell angle γ angle_gamma	101.64 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2210

Description description	1,4-BETA-D-XYLAN-XYLANOHYDROLASE
Molecular weight formula_weight	39434.2 kDa
EC 编号 ec_number	3.2.1.8
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5621
