1xzp
Structure of the GTP-binding protein TrmE from Thermotoga maritima
SAXS 散射曲线 SAXS Profile

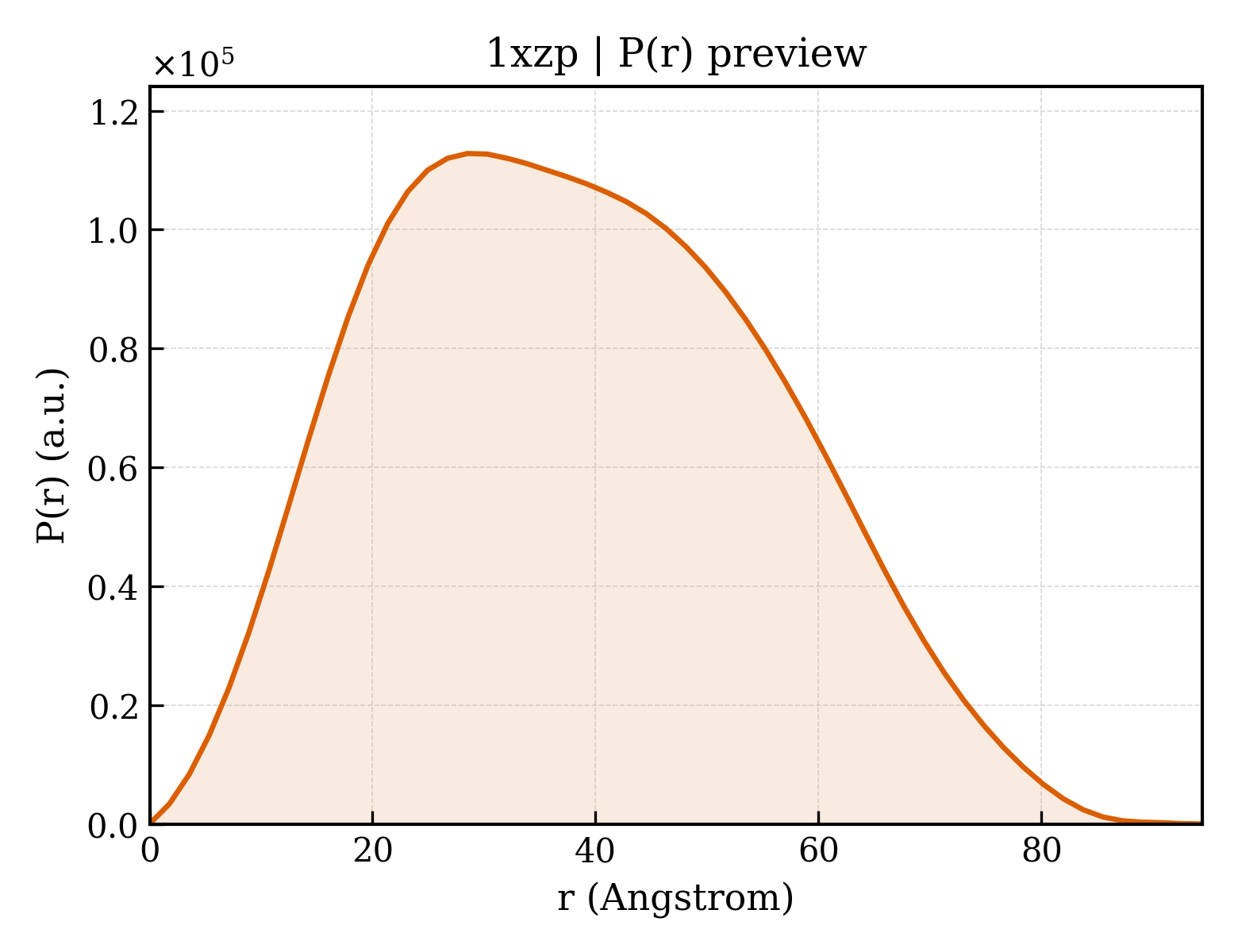

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1xzp |
| 沉积日期 deposition_date | 2004-11-12 |
| 结构标题 title | Structure of the GTP-binding protein TrmE from Thermotoga maritima |
| 关键词 keywords | GTP-binding, THF-binding, tRNA-modification, HYDROLASE; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.71 Å |
| 回转半径 Rg (电子) rg_electron | 28.98 Å |
| 零角强度 I(0) i0 | 68999300.00 |
| 分子量 molecular_weight | 65179.0 kDa |
| 排除体积 excluded_volume | 81883 ų |
| 包络体积 envelope_volume | 104530 ų |
| 水化壳体积 shell_volume | 31039 ų |
| 包络直径 envelope_diameter | 96.1 Å |
| 壳层 Rg shell_rg | 34.99 Å |
| 包络 Rg envelope_rg | 29.17 Å |
| 形状 Rg shape_rg | 28.97 Å |
| 总 Rg total_rg | 29.59 Å |
| 总原子数 total_atoms | 4571 |
| 残基数 n_residues | 587 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 94.4 Å |
| Rg (实空间) rg_real | 29.68 Å |
| Rg 误差 (实空间) rg_real_error | 0.68 Å |
| I(0) (实空间) i0_real | 6.9000e+07 |
| I(0) 误差 (实空间) i0_real_error | 9.3790e+05 |
| Rg (倒空间) rg_reciprocal | 29.70 Å |
| I(0) (倒空间) i0_reciprocal | 69000000.0000 |
| 解质量估计 total_estimate | 0.9057 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 28.5 Å |
| 偏度 Skewness skewness | 0.225 |
| 峰度 Kurtosis kurtosis | -0.660 |
| 角度范围 angular_range | — – 0.2650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 21090000.0000 |
| 实空间数据点数 n_real_points | 54 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.960 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 10 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1xzpa1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.25 — TrmE connector domain |
| 家族 Family family | a.24.25.1 — TrmE connector domain |
| 结构域编号 domain_id | d1xzpa2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.8 — G proteins |
| 结构域编号 domain_id | d1xzpa3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.250 — Folate-binding domain |
| 超家族 Superfamily superfamily | d.250.1 — Folate-binding domain |
| 家族 Family family | d.250.1.2 — TrmE formyl-THF-binding domain |
| 结构域编号 domain_id | d1xzpa4 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1xzpb1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.250 — Folate-binding domain |
| 超家族 Superfamily superfamily | d.250.1 — Folate-binding domain |
| 家族 Family family | d.250.1.2 — TrmE formyl-THF-binding domain |
| 结构域编号 domain_id | d1xzpb2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1xzpA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1360 — Gyrase A; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 120 — Probable tRNA modification gtpase trme; domain 1 |
| 结构域编号 domain_id | 1xzpA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 430 — tRNA modification GTPase MnmE domain 2 |
| 结构域编号 domain_id | 1xzpA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1xzpB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 1360 — Gyrase A; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 120 — Probable tRNA modification gtpase trme; domain 1 |
