SAXSdb — 1y7u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acyl-CoA hydrolase

Bacillus cereus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	CALCIUM ION × 2 SULFATE ION × 6 COENZYME A × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q81EE4_BACCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–174； UniProt 1–171 Author chain B； PDBConstruct 4–174； UniProt 1–171 Author chain C； PDBConstruct 4–174； UniProt 1–171

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1y7u
Deposition date deposition_date	2004-12-10
Structure title title	Crystal Structure of Acyl-Coa hydrolase from Bacillus cereus
Keywords keywords	;Acyl-CoA hydrolase, Structural Genomics, Coenzyme A, Protein structure initiative, PSI, Midwest Center for Structural Genomics, MCSG, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1y7u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

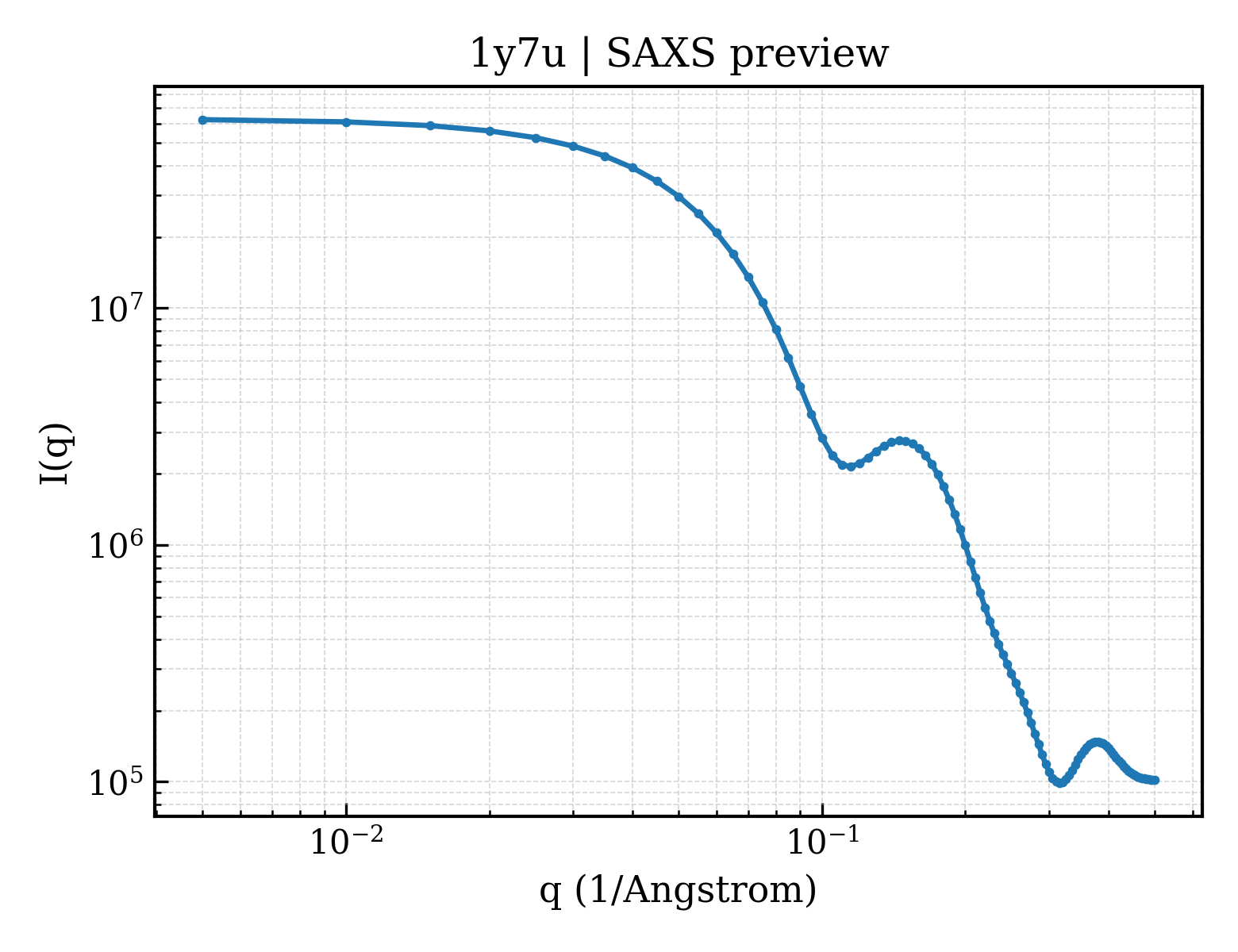

1y7u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

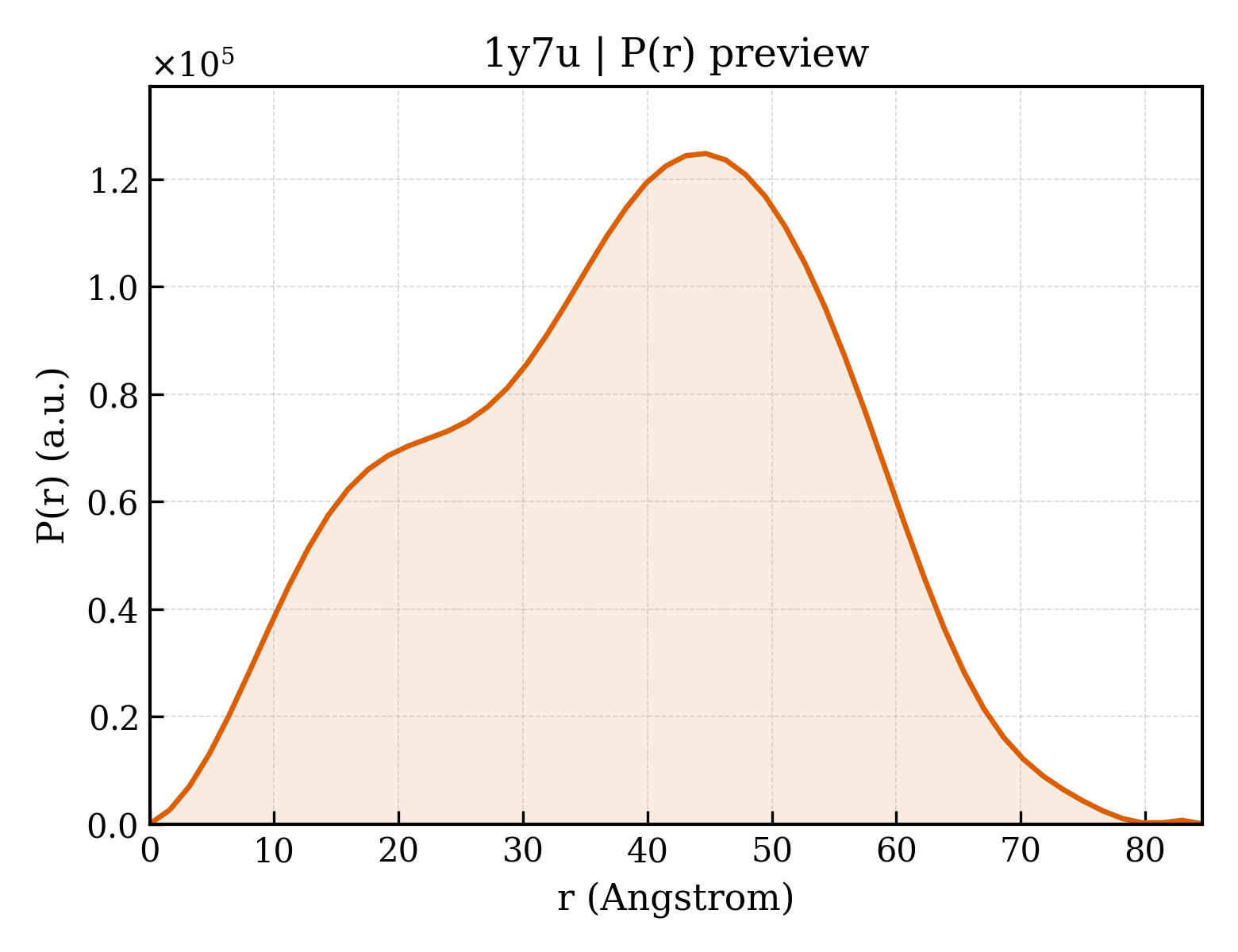

1y7u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.88 Å
Rg (electron density)	28.89 Å
Total Rg	29.56 Å
Atom count	8126
Residues	960
Excluded volume	144240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1y7u__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Acyl-CoA hydrolase
Molecular weight formula_weight	19895.8 kDa
EC 编号 ec_number	3.1.2.20
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4314

SNAMITMTEVKGKTANESRVFKTSRVFPTDLNDHNTLFGGKILSEMDMVASISASRHSRKECVTASMDWVDFLHPVRSSDCVSYESFVIWTGRTSMEVFVKVVSEYLISGEKRIAATSFVTFVALSKENNPVPVPRVIPDTEEEKESHRIAVLRAEQRHIRKAESKKVATLLTF

Source Source

Source organism organism	Bacillus cereus
NCBI taxonomy ID ncbi_taxonomy_id	1396
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	143

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1y7ua1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.1 — 4HBT-like

Domain ID domain_id	d1y7ub_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d1y7uc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

CATH v4.4 (3 domains)

Domain ID domain_id	1y7uA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1y7uB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	1y7uC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

▶

Unit-cell length a length_a	123.553 Å
Unit-cell length b length_b	123.553 Å
Unit-cell length c length_c	126.581 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	41.620 Å
R factor r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2420

Crystal Structure of Acyl-Coa hydrolase from Bacillus cereus
