1y8t

Crystal Structure of RV0983 from Mycobacterium tuberculosis- Proteolytically active form

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Rv0983

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O53896_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–316； UniProt 149–464 Author chain B； PDBConstruct 1–316； UniProt 149–464 Author chain C； PDBConstruct 1–316； UniProt 149–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1y8t
Deposition date deposition_date	2004-12-13
Structure title title	Crystal Structure of RV0983 from Mycobacterium tuberculosis- Proteolytically active form
Keywords keywords	SERINE PROTEASE, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1y8t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1y8t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

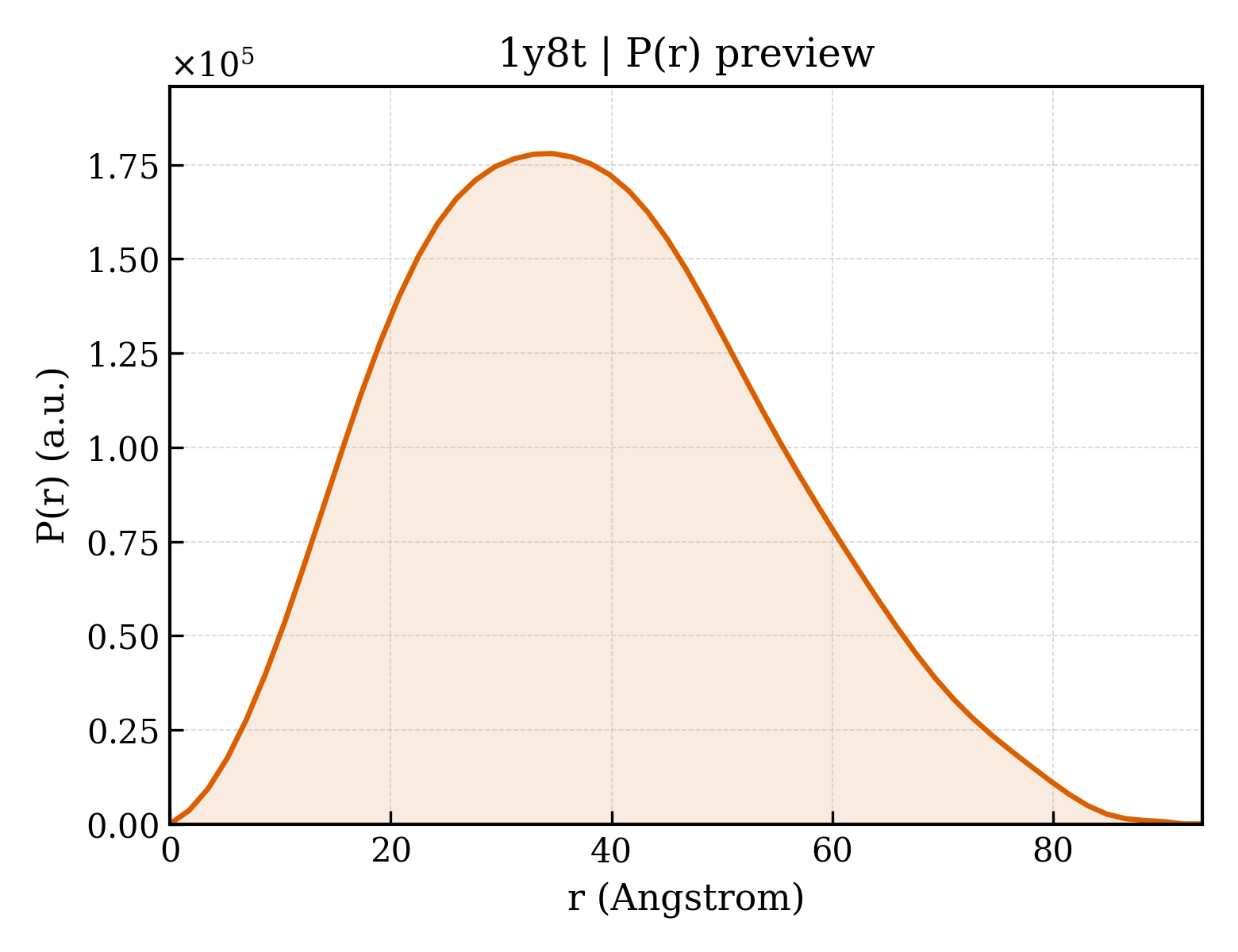

1y8t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.25 Å
Rg (electron density)	28.54 Å
Total Rg	29.13 Å
Atom count	5431
Residues	804
Excluded volume	96889 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1y8t__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1y8ta1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.4 — HtrA-like serine proteases

Domain ID domain_id	d1y8ta2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.1 — Prokaryotic proteases

Domain ID domain_id	d1y8tb1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.4 — HtrA-like serine proteases

Domain ID domain_id	d1y8tb2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.1 — Prokaryotic proteases

Domain ID domain_id	d1y8tc1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.4 — HtrA-like serine proteases

Domain ID domain_id	d1y8tc2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.1 — Prokaryotic proteases

CATH v4.4 (9 domains)

Domain ID domain_id	1y8tA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tA03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	1y8tB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tB03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	1y8tC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1y8tC03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	149.584 Å
Unit-cell length b length_b	89.067 Å
Unit-cell length c length_c	69.408 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.55 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	76.700 Å
R factor r_factor	0.2293
R_work r_work	0.2265
R_free r_free	0.2803

Description description	hypothetical protein Rv0983
Molecular weight formula_weight	32368.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5749

Crystal Structure of RV0983 from Mycobacterium tuberculosis- Proteolytically active form

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Rv0983

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1y8t__assembly_1__model_1

1y8t__assembly_1__model_1 | I(q)

1y8t__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (6 domains)

CATH v4.4 (9 domains)

7. Citations (1)

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	83332
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	318
