1ycf

Oxidized (di-ferric) FprA from Moorella thermoacetica

Method: X-RAY DIFFRACTION D_max: 168.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

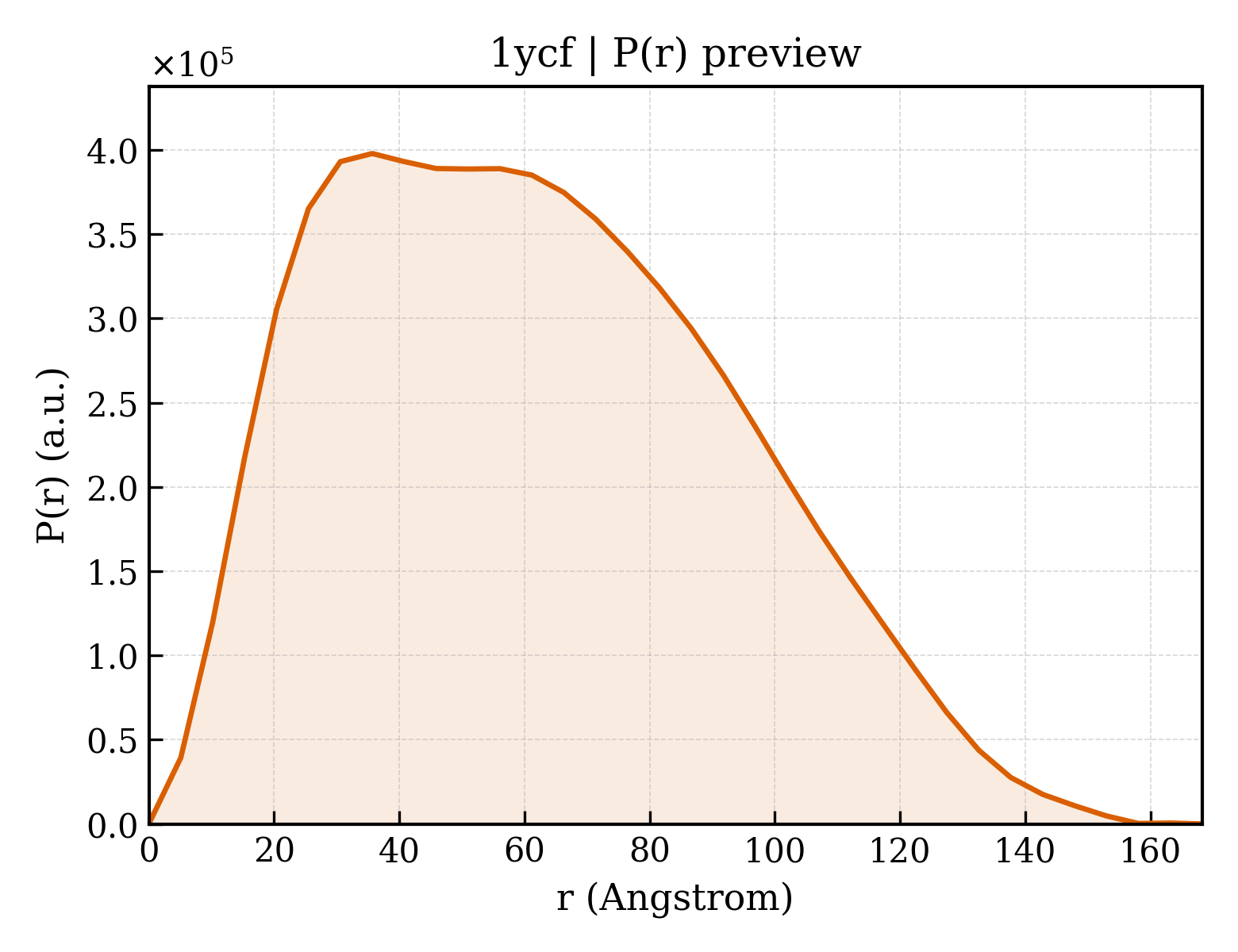

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ycf
沉积日期 deposition_date	2004-12-22
结构标题 title	Oxidized (di-ferric) FprA from Moorella thermoacetica
关键词 keywords	Scavenging Nitric Oxide reductase, diron site structure, diferrous-dinitrosyl, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.41 Å
回转半径 Rg (电子) rg_electron	48.88 Å
零角强度 I(0) i0	440586000.00
分子量 molecular_weight	179230.0 kDa
排除体积 excluded_volume	226170 Å³
包络体积 envelope_volume	284250 Å³
水化壳体积 shell_volume	49706 Å³
包络直径 envelope_diameter	171.8 Å
壳层 Rg shell_rg	50.00 Å
包络 Rg envelope_rg	48.18 Å
形状 Rg shape_rg	48.87 Å
总 Rg total_rg	48.95 Å
总原子数 total_atoms	12607
残基数 n_residues	1592
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	168.3 Å
Rg (实空间) rg_real	48.80 Å
Rg 误差 (实空间) rg_real_error	2.20 Å
I(0) (实空间) i0_real	4.4060e+08
I(0) 误差 (实空间) i0_real_error	9.2600e+06
Rg (倒空间) rg_reciprocal	48.41 Å
I(0) (倒空间) i0_reciprocal	440400000.0000
解质量估计 total_estimate	0.8288
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	35.7 Å
偏度 Skewness skewness	0.362
峰度 Kurtosis kurtosis	-0.605
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	26170000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.767; Smooth: 0.684

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Nitric oxide reductase
分子量 formula_weight	44219.8 kDa
EC 编号 ec_number	1.-.-.-
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12668

SQPVAITDGIYWVGAVDWNIRYFHGPAFSTHRGTTYNAYLIVDDKTALVDTVYEPFKEELIAKLKQIKDPVKLDYLVVNHTESDHAGAFPAIMELCPDAHVLCTQRAFDSLKAHYSHIDFNYTIVKTGTSVSLGKRSLTFIEAPMLHWPDSMFTYVPEEALLLPNDAFGQHIATSVRFDDQVDAGLIMDEAAKYYANILMPFSNLITKKLDEIQKINLAIKTIAPSHGIIWRKDPGRIIEAYARWAEGQGKAKAVIAYDTMWLSTEKMAHALMDGLVAGGCEVKLFKLSVSDRNDVIKEILDARAVLVGSPTINNDILPVVSPLLDDLVGLRPKNKVGLAFGAYGWGGGAQKILEERLKAAKIELIAEPGPTVQWVPRGEDLQRCYELGRKIAARIAD

来源 Source

来源生物 organism	Moorella thermoacetica
NCBI 分类编号 ncbi_taxonomy_id	1525
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	MU-OXO-DIIRON
分子量 formula_weight	127.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	OXYGEN MOLECULE
分子量 formula_weight	32.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	61

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1ycfa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.5 — Flavoproteins
家族 Family family	c.23.5.1 — Flavodoxin-related

结构域编号 domain_id	d1ycfa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.157 — Metallo-hydrolase/oxidoreductase
超家族 Superfamily superfamily	d.157.1 — Metallo-hydrolase/oxidoreductase
家族 Family family	d.157.1.3 — ROO N-terminal domain-like

结构域编号 domain_id	d1ycfb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.5 — Flavoproteins
家族 Family family	c.23.5.0 — automated matches

结构域编号 domain_id	d1ycfb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.157 — Metallo-hydrolase/oxidoreductase
超家族 Superfamily superfamily	d.157.1 — Metallo-hydrolase/oxidoreductase
家族 Family family	d.157.1.3 — ROO N-terminal domain-like

结构域编号 domain_id	d1ycfc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.5 — Flavoproteins
家族 Family family	c.23.5.0 — automated matches

结构域编号 domain_id	d1ycfc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.157 — Metallo-hydrolase/oxidoreductase
超家族 Superfamily superfamily	d.157.1 — Metallo-hydrolase/oxidoreductase
家族 Family family	d.157.1.3 — ROO N-terminal domain-like

结构域编号 domain_id	d1ycfd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.5 — Flavoproteins
家族 Family family	c.23.5.0 — automated matches

结构域编号 domain_id	d1ycfd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.157 — Metallo-hydrolase/oxidoreductase
超家族 Superfamily superfamily	d.157.1 — Metallo-hydrolase/oxidoreductase
家族 Family family	d.157.1.3 — ROO N-terminal domain-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1ycfA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	15 — Metallo-beta-lactamase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease Z/Hydroxyacylglutathione hydrolase-like

结构域编号 domain_id	1ycfA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

结构域编号 domain_id	1ycfB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	15 — Metallo-beta-lactamase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease Z/Hydroxyacylglutathione hydrolase-like

结构域编号 domain_id	1ycfB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

结构域编号 domain_id	1ycfC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	15 — Metallo-beta-lactamase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease Z/Hydroxyacylglutathione hydrolase-like

结构域编号 domain_id	1ycfC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

结构域编号 domain_id	1ycfD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	15 — Metallo-beta-lactamase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease Z/Hydroxyacylglutathione hydrolase-like

结构域编号 domain_id	1ycfD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	159.670 Å
晶胞边长 b length_b	159.670 Å
晶胞边长 c length_c	276.798 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	49.710 Å
R 因子 r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2600
