1yfl

T4Dam in Complex with Sinefungin and 16-mer Oligonucleotide Showing Semi-specific and Specific Contact and Flipped Base

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA adenine methylase

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	5'-D(PTPCPAPCPAPGPGPAPTPCPCPTPGPTPGPA)-3' × 2 SINEFUNGIN × 2	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	5'-D(PTPCPAPCPAPGPGPAPTPCPCPTPGPTPGPA)-3' × 2 SINEFUNGIN × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DMA_BPT4
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–259； UniProt 1–259 Author chain B； PDBConstruct 1–259； UniProt 1–259 Author chain D； PDBConstruct 1–259； UniProt 1–259 Author chain E； PDBConstruct 1–259； UniProt 1–259

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1yfl
Deposition date deposition_date	2005-01-03
Structure title title	T4Dam in Complex with Sinefungin and 16-mer Oligonucleotide Showing Semi-specific and Specific Contact and Flipped Base
Keywords keywords	T4DAM, METHYLTRANSFERASE, DNA, PROTEIN-DNA COMPLEX, BASE-FLIPPING, TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1yfl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1yfl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

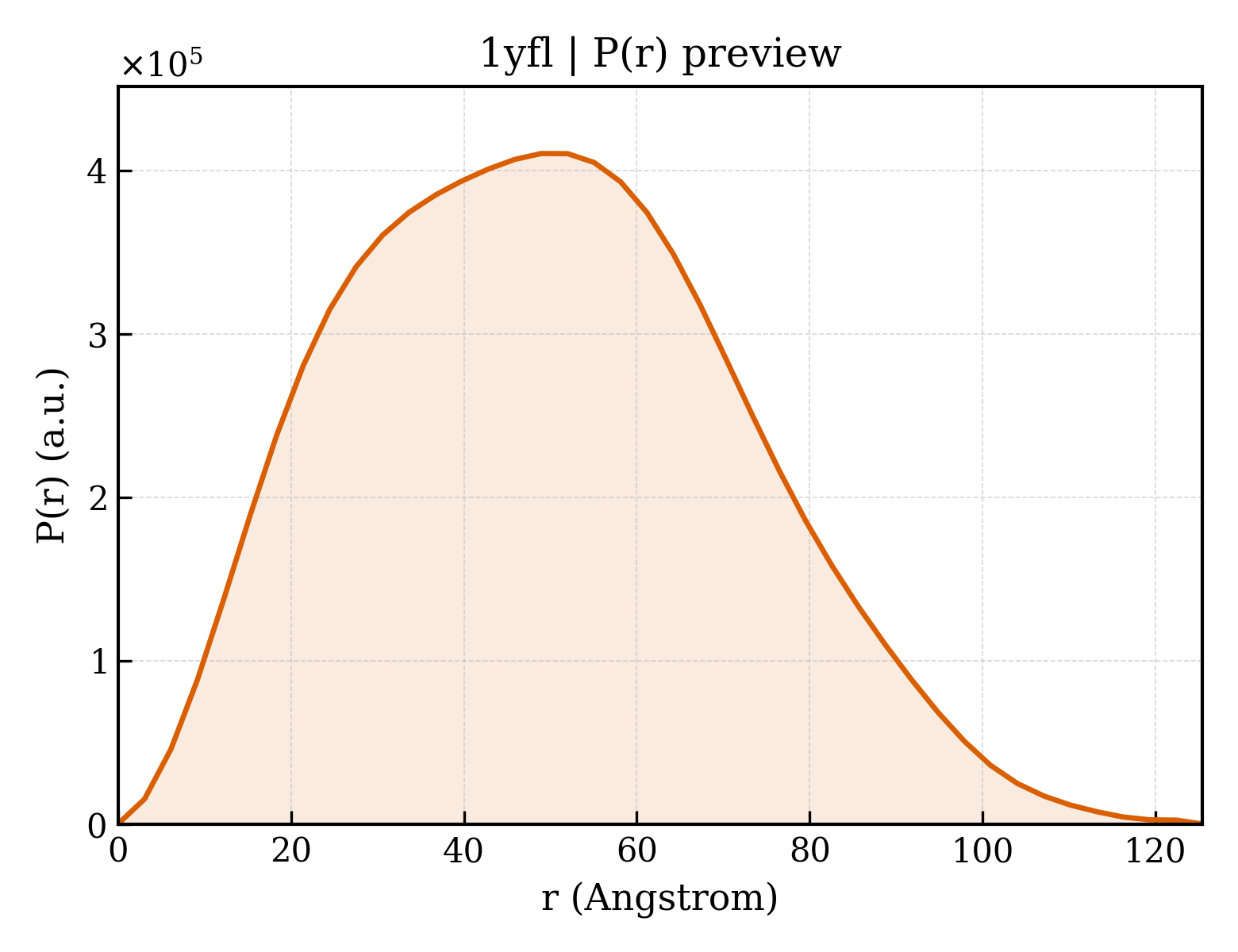

1yfl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	27.66 Å
Total Rg	28.30 Å
Atom count	4650
Residues	524
Excluded volume	80327 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1yfl__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1yfl__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	5'-D(PTPCPAPCPAPGPGPAPTPCPCPTPGPTPGPA)-3'
Molecular weight formula_weight	4898.2 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F,G,H,I
Atom count atom_count	9379

TCACAGGATCCTGTGA

Entity 2 Entity 2 polymer

Description description	DNA adenine methylase
Molecular weight formula_weight	30461.9 kDa
EC 编号 ec_number	2.1.1.72
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E

MLGAIAYTGNKQSLLPELKSHFPKYNRFVDLFCGGLSVSLNVNGPVLANDIQEPIIEMYKRLINVSWDDVLKVIKQYKLSKTSKEEFLKLREDYNKTRDPLLLYVLHFHGFSNMIRINDKGNFTTPFGKRTINKNSEKRFNHFKQNCDKIIFSSLHFKDVKILDGDFVYVDPPYLITVADYNKFWSEDEEKDLLNLLDSLNDRGIKFGLSNVLEHHGKENTLLKEWSKKYNVKHLNKKYVFNIYHSKEKNGTDEVYIFN

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SINEFUNGIN
Molecular weight formula_weight	381.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1yfla1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.28 — N6 adenine-specific DNA methylase, DAM

Domain ID domain_id	d1yflb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.28 — N6 adenine-specific DNA methylase, DAM

Domain ID domain_id	d1yfld1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.28 — N6 adenine-specific DNA methylase, DAM

Domain ID domain_id	d1yfle1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.28 — N6 adenine-specific DNA methylase, DAM

CATH v4.4 (8 domains)

Domain ID domain_id	1yflA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1yflA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1020 — Adenine-specific Methyltransferase; domain 2
Homologous superfamily homologous superfamily	10 — Adenine-specific Methyltransferase, Domain 2

Domain ID domain_id	1yflB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1yflB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1020 — Adenine-specific Methyltransferase; domain 2
Homologous superfamily homologous superfamily	10 — Adenine-specific Methyltransferase, Domain 2

Domain ID domain_id	1yflD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1yflD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1020 — Adenine-specific Methyltransferase; domain 2
Homologous superfamily homologous superfamily	10 — Adenine-specific Methyltransferase, Domain 2

Domain ID domain_id	1yflE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	1yflE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1020 — Adenine-specific Methyltransferase; domain 2
Homologous superfamily homologous superfamily	10 — Adenine-specific Methyltransferase, Domain 2

▶

Unit-cell length a length_a	87.871 Å
Unit-cell length b length_b	117.648 Å
Unit-cell length c length_c	87.865 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.02 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.090 Å
Low-resolution limit resolution_low	29.400 Å
R factor r_factor	0.2170
R_work r_work	0.2140
R_free r_free	0.2650
