Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q9NPD8_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–169； UniProt 1–167 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1yh2 |
| Deposition date deposition_date | 2005-01-06 |
| Structure title title | Ubiquitin-Conjugating Enzyme HSPC150 |
| Keywords keywords | STRUCTURAL GENOMICS CONSORTIUM, HSCP150, UBIQUITIN, UBIQUITIN-CONJUGATING ENZYME, LIGASE, SGC; LIGASE |
| Experimental Method method | X-RAY DIFFRACTION |

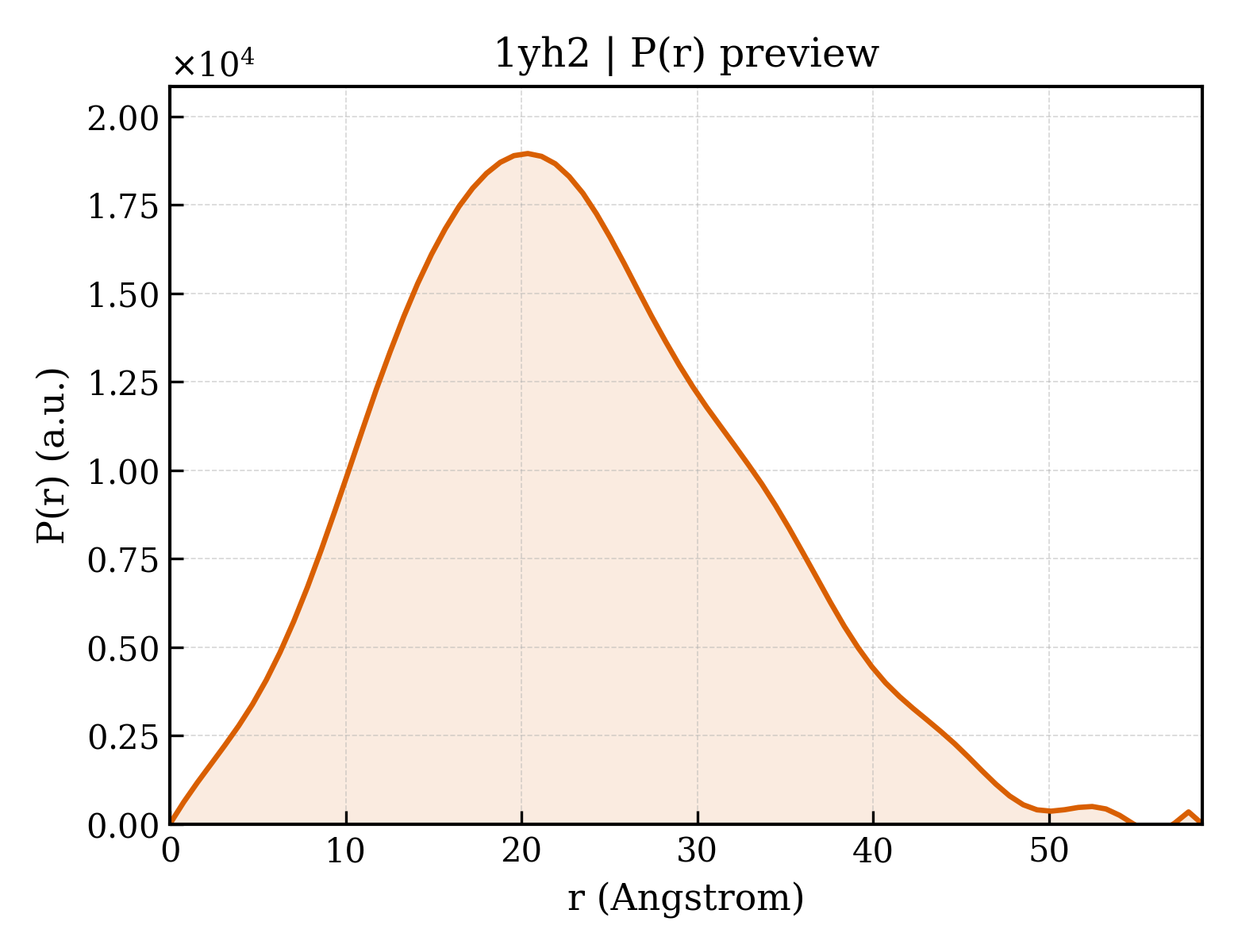

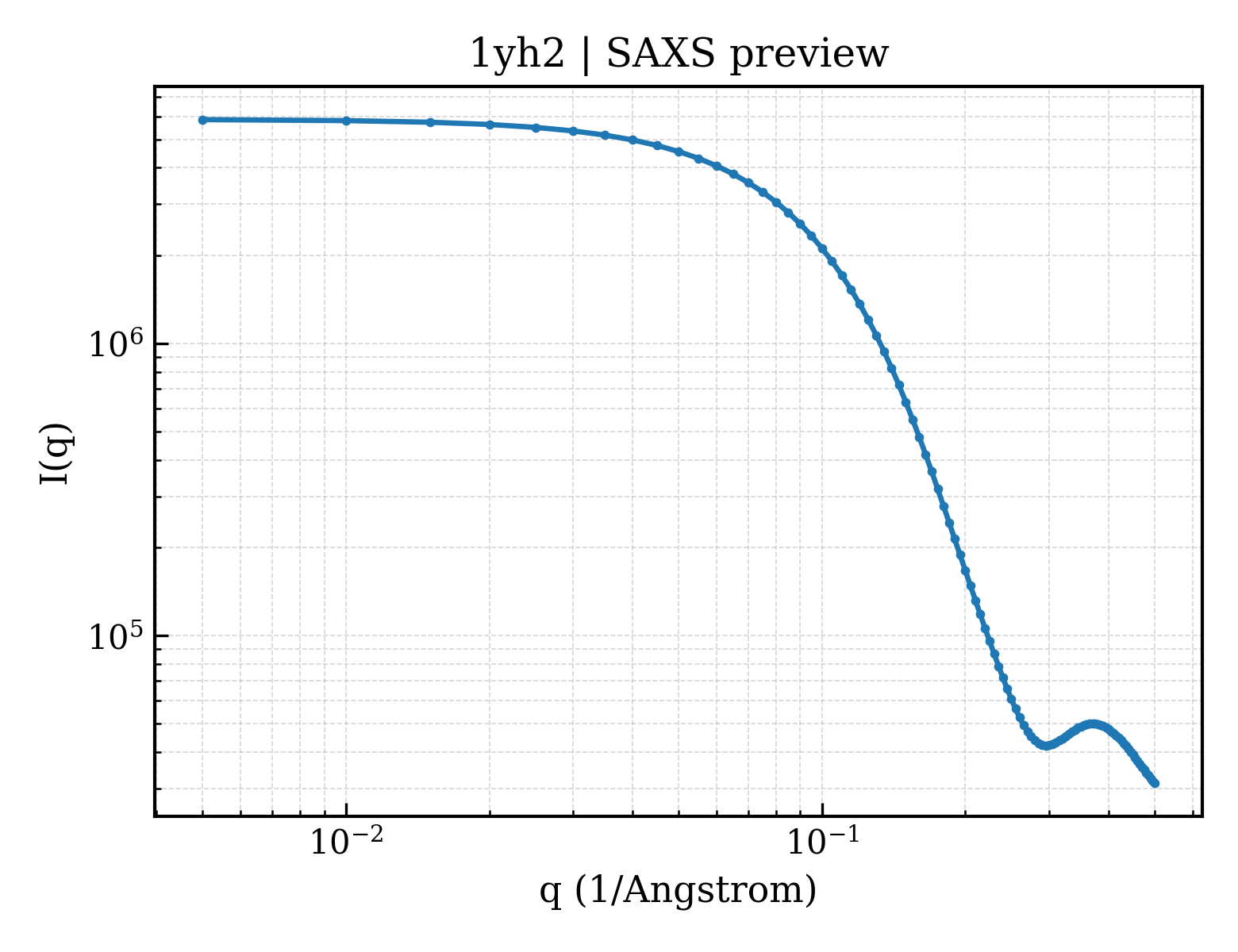

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.46 Å |
| Rg (electron density) | 16.30 Å |
| Total Rg | 17.40 Å |
| Atom count | 1252 |
| Residues | 156 |
| Excluded volume | 22429 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1yh2a1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.20 — UBC-like |
| Superfamily Superfamily superfamily | d.20.1 — UBC-like |
| Family Family family | d.20.1.1 — UBC-related |
| Domain ID domain_id | d1yh2a2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1yh2A00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 110 — Ubiquitin Conjugating Enzyme |
| Homologous superfamily homologous superfamily | 10 — Ubiquitin Conjugating Enzyme |
