1yif

CRYSTAL STRUCTURE OF beta-1,4-xylosidase FROM BACILLUS SUBTILIS, NEW YORK STRUCTURAL GENOMICS CONSORTIUM

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-1,4-XYLOSIDASE

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P94489_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–533； UniProt 1–533 Author chain B； PDBConstruct 1–533； UniProt 1–533 Author chain C； PDBConstruct 1–533； UniProt 1–533 Author chain D； PDBConstruct 1–533； UniProt 1–533

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1yif
Deposition date deposition_date	2005-01-11
Structure title title	CRYSTAL STRUCTURE OF beta-1,4-xylosidase FROM BACILLUS SUBTILIS, NEW YORK STRUCTURAL GENOMICS CONSORTIUM
Keywords keywords	;GLYCOSIDASE, XYLAN, XYLOSIDASE, STRUCTURAL GENOMICS, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1yif__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

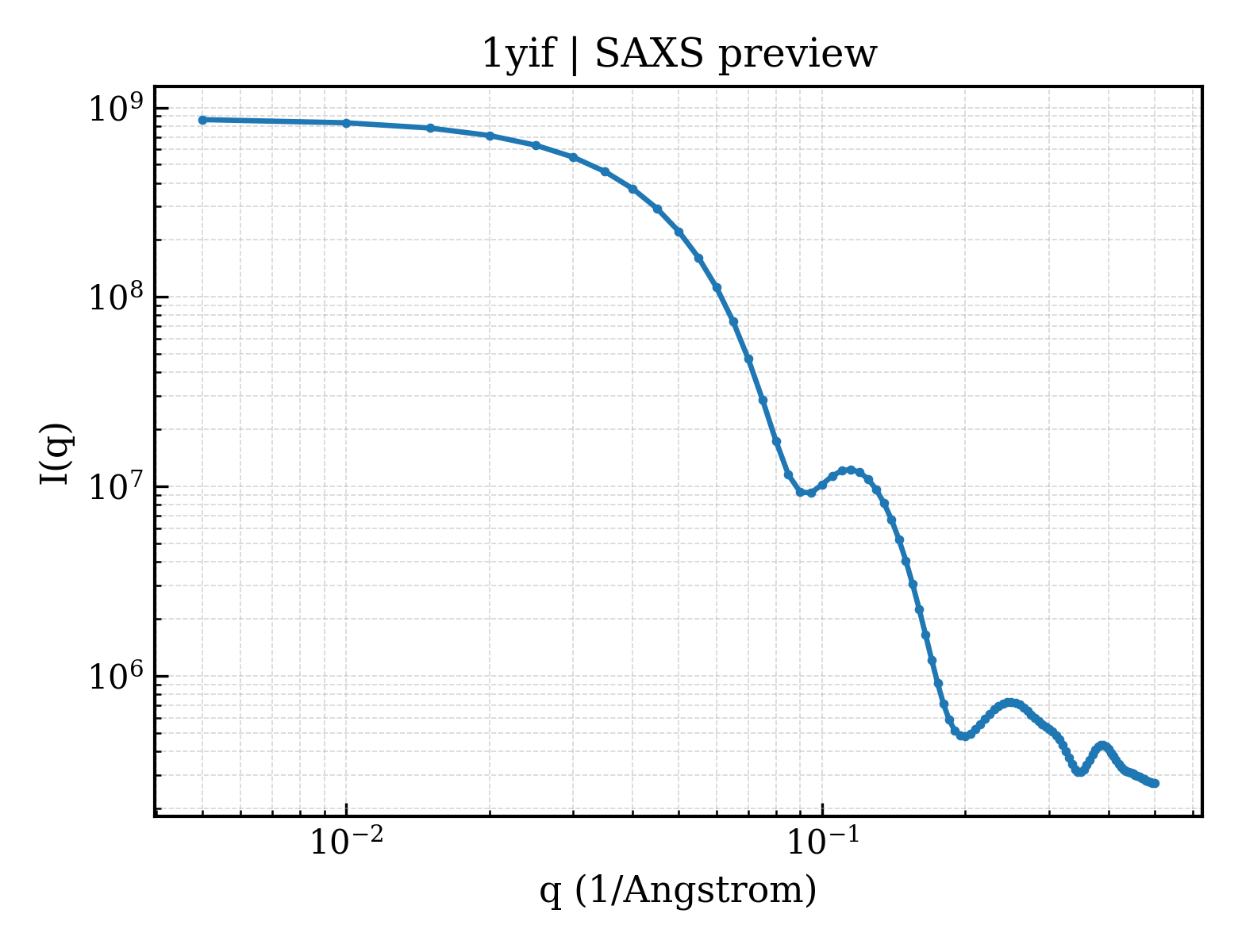

1yif__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

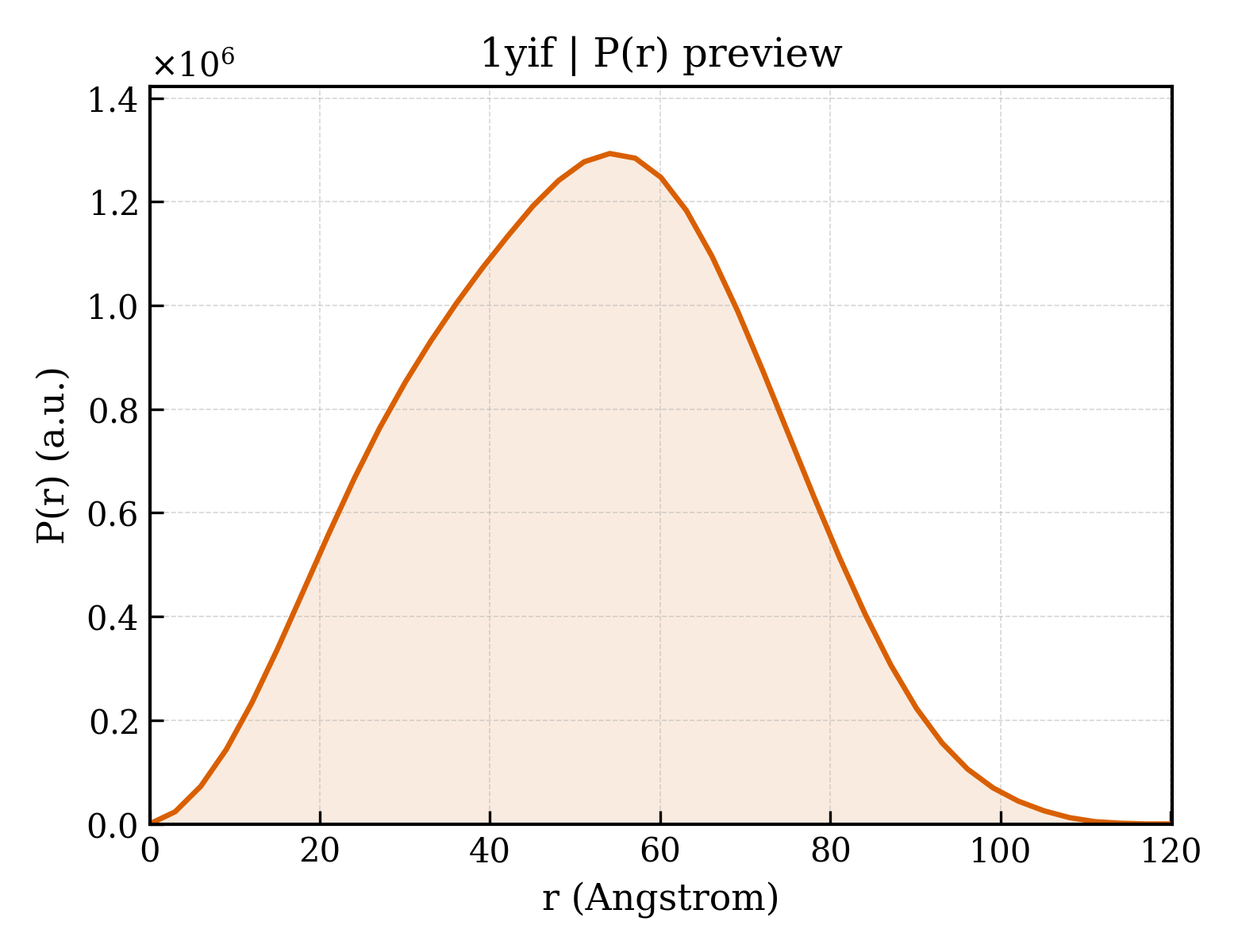

1yif__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.35 Å
Rg (electron density)	38.59 Å
Total Rg	39.07 Å
Atom count	17356
Residues	2128
Excluded volume	305940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1yif__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	BETA-1,4-XYLOSIDASE
Molecular weight formula_weight	61407.4 kDa
EC 编号 ec_number	3.2.1.37
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	20084

MKITNPVLKGFNPDPSICRAGEDYYIAVSTFEWFPGVQIHHSKDLVNWHLVAHPLQRVSQLDMKGNPNSGGVWAPCLSYSDGKFWLIYTDVKVVDGAWKDCHNYLVTCETINGDWSEPIKLNSSGFDASLFHDTDGKKYLLNMLWDHRIDRHSFGGIVIQEYSDKEQKLIGKPKVIFEGTDRKLTEAPHLYHIGNYYYLLTAEGGTRYEHAATIARSANIEGPYEVHPDNPILTSWHDPGNPLQKCGHASIVQTHTDEWYLAHLTGRPIHPDDDSIFQQRGYCPLGRETAIQKLYWKDEWPYVVGGKEGSLEVDAPSIPETIFEATYPEVDEFEDSTLNINFQTLRIPFTNELGSLTQAPNHLRLFGHESLTSTFTQAFVARRWQSLHFEAETAVEFYPENFQQAAGLVNYYNTENWTALQVTHDEELGRILELTICDNFSFSQPLNNKIVIPREVKYVYLRVNIEKDKYYYFYSFNKEDWHKIDIALESKKLSDDYIRGGGFFTGAFVGMQCQDTGGNHIPADFRYFRYKEK

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2728

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1yifa1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.23 — Beta-D-xylosidase C-terminal domain-like

Domain ID domain_id	d1yifa2
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.2 — Arabinanase/levansucrase/invertase
Family Family family	b.67.2.1 — alpha-L-arabinanase-like

Domain ID domain_id	d1yifb1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.23 — Beta-D-xylosidase C-terminal domain-like

Domain ID domain_id	d1yifb2
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.2 — Arabinanase/levansucrase/invertase
Family Family family	b.67.2.1 — alpha-L-arabinanase-like

Domain ID domain_id	d1yifc1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.23 — Beta-D-xylosidase C-terminal domain-like

Domain ID domain_id	d1yifc2
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.2 — Arabinanase/levansucrase/invertase
Family Family family	b.67.2.1 — alpha-L-arabinanase-like

Domain ID domain_id	d1yifd1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.23 — Beta-D-xylosidase C-terminal domain-like

Domain ID domain_id	d1yifd2
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.2 — Arabinanase/levansucrase/invertase
Family Family family	b.67.2.1 — alpha-L-arabinanase-like

CATH v4.4 (8 domains)

Domain ID domain_id	1yifA01
Class class	2 — Mainly Beta
Architecture architecture	115 — 5 Propeller
Topology topology	10 — Tachylectin-2; Chain A
Homologous superfamily homologous superfamily	20 — Glycosyl hydrolase domain; family 43

Domain ID domain_id	1yifA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1yifB01
Class class	2 — Mainly Beta
Architecture architecture	115 — 5 Propeller
Topology topology	10 — Tachylectin-2; Chain A
Homologous superfamily homologous superfamily	20 — Glycosyl hydrolase domain; family 43

Domain ID domain_id	1yifB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1yifC01
Class class	2 — Mainly Beta
Architecture architecture	115 — 5 Propeller
Topology topology	10 — Tachylectin-2; Chain A
Homologous superfamily homologous superfamily	20 — Glycosyl hydrolase domain; family 43

Domain ID domain_id	1yifC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1yifD01
Class class	2 — Mainly Beta
Architecture architecture	115 — 5 Propeller
Topology topology	10 — Tachylectin-2; Chain A
Homologous superfamily homologous superfamily	20 — Glycosyl hydrolase domain; family 43

Domain ID domain_id	1yifD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	104.230 Å
Unit-cell length b length_b	104.610 Å
Unit-cell length c length_c	114.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.88 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2180
