1yjx

Crystal structure of human B type phosphoglycerate mutase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoglycerate mutase 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 1 CITRIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PGAM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–254； UniProt 0–253 Author chain B； PDBConstruct 1–254； UniProt 0–253 Author chain C； PDBConstruct 1–254； UniProt 0–253 Author chain D； PDBConstruct 1–254； UniProt 0–253 Author chain E； PDBConstruct 1–254； UniProt 0–253 Author chain F； PDBConstruct 1–254； UniProt 0–253 Author chain G； PDBConstruct 1–254； UniProt 0–253 Author chain H； PDBConstruct 1–254； UniProt 0–253 Author chain I； PDBConstruct 1–254； UniProt 0–253 Author chain J； PDBConstruct 1–254； UniProt 0–253 Author chain K； PDBConstruct 1–254； UniProt 0–253 Author chain L； PDBConstruct 1–254； UniProt 0–253

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1yjx
Deposition date deposition_date	2005-01-16
Structure title title	Crystal structure of human B type phosphoglycerate mutase
Keywords keywords	alpha/beta, ISOMERASE, HYDROLASE; ISOMERASE, HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1yjx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1yjx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

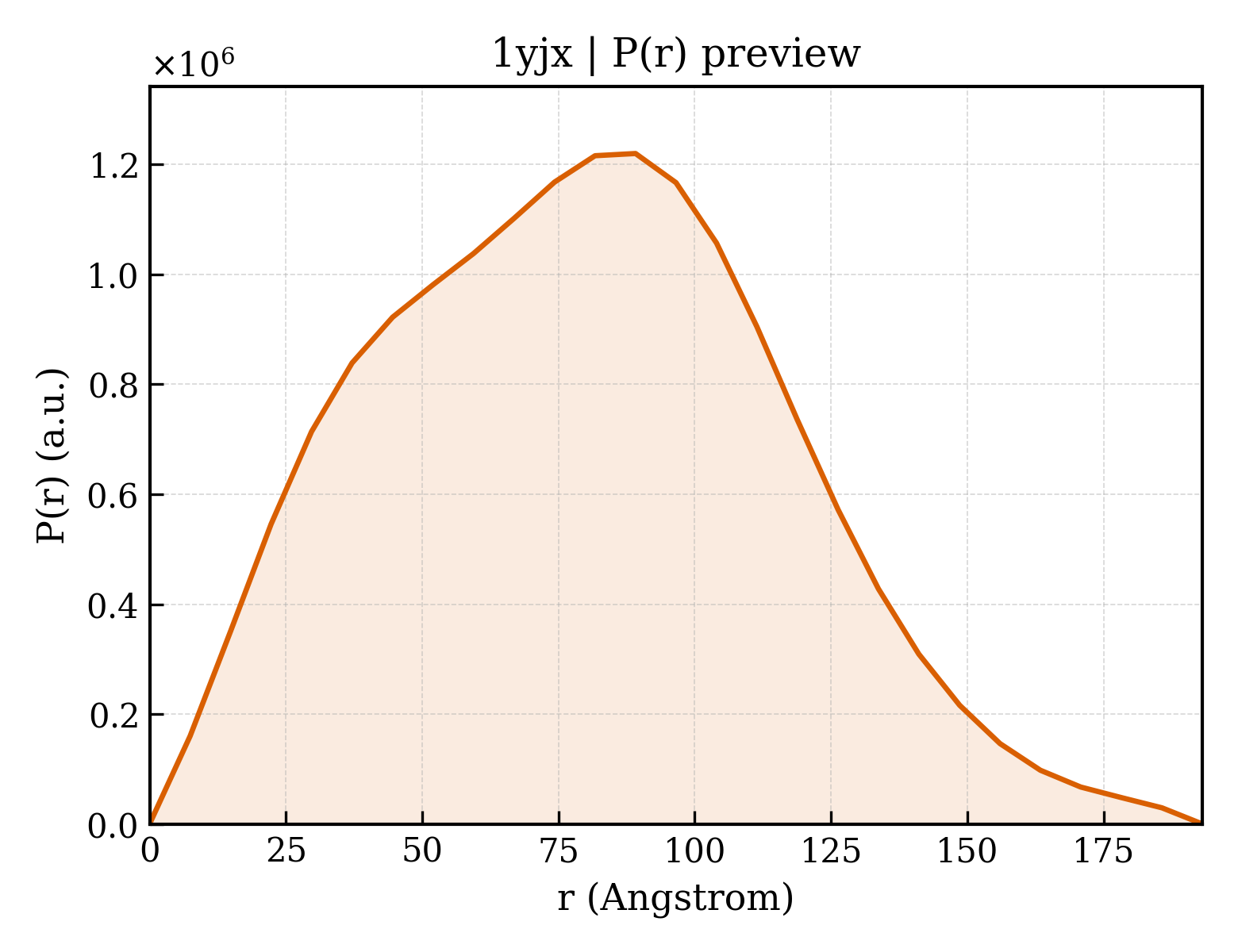

1yjx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.03 Å
Rg (electron density)	24.15 Å
Total Rg	24.95 Å
Atom count	3843
Residues	487
Excluded volume	68033 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1yjx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1yjx__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1yjx__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1yjx__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1yjx__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1yjx__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Phosphoglycerate mutase 1
Molecular weight formula_weight	29917.1 kDa
EC 编号 ec_number	5.4.2.1, 5.4.2.4, 3.1.3.13
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	23286

MAAYKLVLIRHGESAWNLENRFSGWYDADLSPAGHEEAKRGGQALRDAGYEFDICFTSVQKRAIRTLWTVLDAIDQMWLPVVRTWRLNERHYGGLTGLNKAETAAKHGEAQVKIWRRSYDVPPPPMEPDHPFYSNISKDRRYADLTEDQLPSCESLKDTIARALPFWNEEIVPQIKEGKRVLIAAHGNSLRGIVKHLEGLSEEAIMELNLPTGIPIVYELDKNLKPIKPMQFLGDEETVRKAMEAVAAQGKAKKLEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	334

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1yjxa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

Domain ID domain_id	d1yjxl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.1 — Cofactor-dependent phosphoglycerate mutase

CATH v4.4 (12 domains)

Domain ID domain_id	1yjxA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

Domain ID domain_id	1yjxL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

▶

Unit-cell length a length_a	130.534 Å
Unit-cell length b length_b	75.931 Å
Unit-cell length c length_c	186.978 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	29.910 Å
R factor r_factor	0.2370
R_work r_work	0.2330
R_free r_free	0.2720

Crystal structure of human B type phosphoglycerate mutase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoglycerate mutase 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1yjx__assembly_1__model_1

1yjx__assembly_1__model_1 | I(q)

1yjx__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Crystal structure of human B type phosphoglycerate mutase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoglycerate mutase 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1yjx__assembly_1__model_1

1yjx__assembly_1__model_1 | I(q)

1yjx__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
