1ykm

Protocatechuate 3,4-Dioxygenase Y408E mutant

Method: X-RAY DIFFRACTION D_max: 157.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

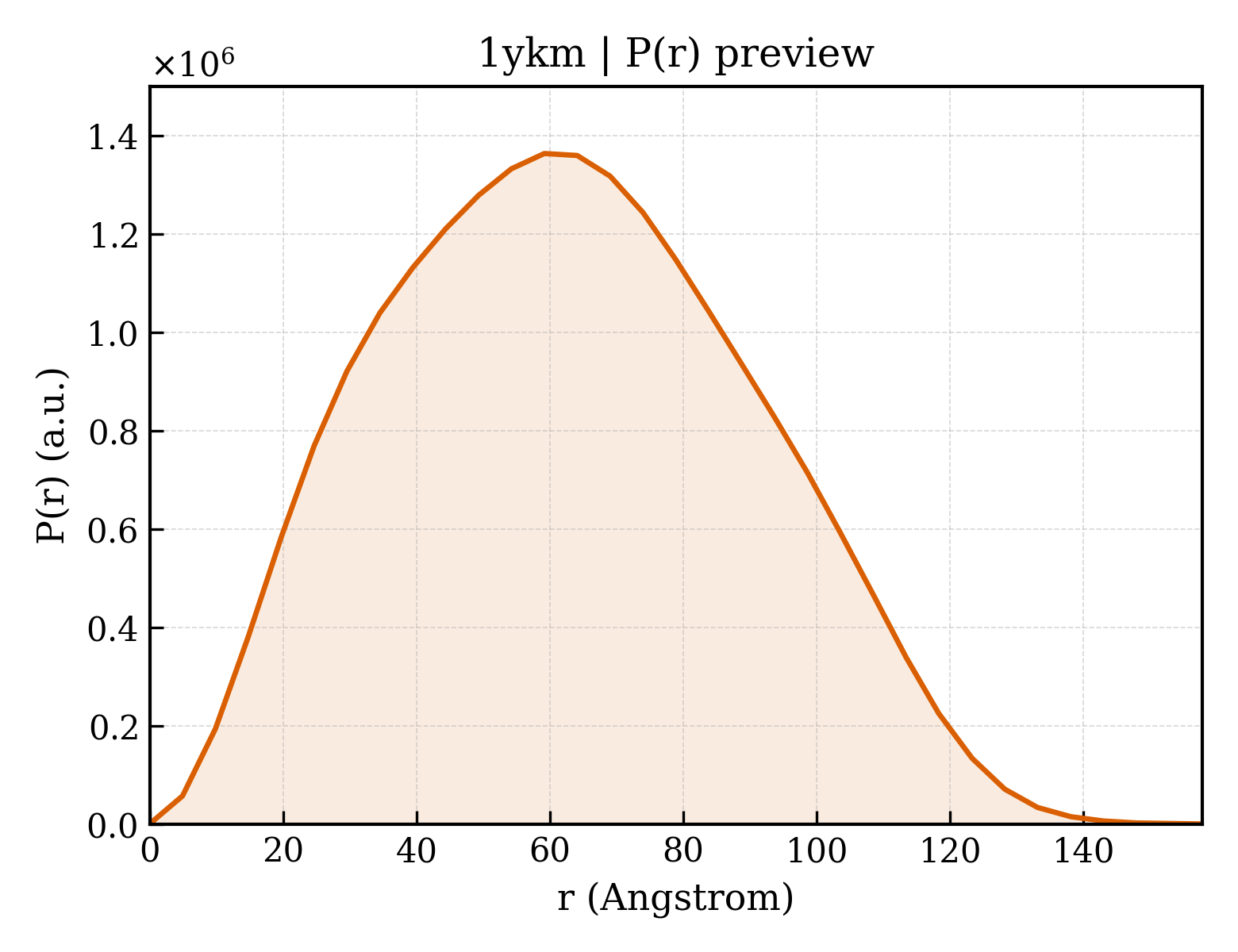

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ykm
沉积日期 deposition_date	2005-01-18
结构标题 title	Protocatechuate 3,4-Dioxygenase Y408E mutant
关键词 keywords	catechol, protocatechuate, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.55 Å
回转半径 Rg (电子) rg_electron	47.76 Å
零角强度 I(0) i0	1284010000.00
分子量 molecular_weight	293000.0 kDa
排除体积 excluded_volume	363980 Å³
包络体积 envelope_volume	503260 Å³
水化壳体积 shell_volume	84659 Å³
包络直径 envelope_diameter	160.8 Å
壳层 Rg shell_rg	55.13 Å
包络 Rg envelope_rg	46.57 Å
形状 Rg shape_rg	47.77 Å
总 Rg total_rg	47.99 Å
总原子数 total_atoms	20688
残基数 n_residues	2622
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	157.8 Å
Rg (实空间) rg_real	48.39 Å
Rg 误差 (实空间) rg_real_error	1.19 Å
I(0) (实空间) i0_real	1.2840e+09
I(0) 误差 (实空间) i0_real_error	2.2160e+07
Rg (倒空间) rg_reciprocal	48.55 Å
I(0) (倒空间) i0_reciprocal	1284000000.0000
解质量估计 total_estimate	0.8998
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	59.2 Å
偏度 Skewness skewness	0.170
峰度 Kurtosis kurtosis	-0.631
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	190700000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.912

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Protocatechuate 3,4-dioxygenase alpha chain
分子量 formula_weight	22278.8 kDa
EC 编号 ec_number	1.13.11.3
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K
原子数 atom_count	22002

PIELLPETPSQTAGPYVHIGLALEAAGNPTRDQEIWNRLAKPDAPGEHILLLGQVYDGNGHLVRDSFLEVWQADANGEYQDAYNLENAFNSFGRTATTFDAGEWTLHTVKPGVVNNAAGVPMAPHINISLFARGINIHLHTRLYFDDEAQANAKCPVLNLIEQPQRRETLIAKRCEVDGKTAYRFDIRIQGEGETVFFDF

来源 Source

来源生物 organism	Pseudomonas putida
NCBI 分类编号 ncbi_taxonomy_id	303
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Protocatechuate 3,4-dioxygenase beta chain
分子量 formula_weight	26738.3 kDa
EC 编号 ec_number	1.13.11.3
突变 mutation	Y408E
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L

PAQDNSRFVIRDRNWHPKALTPDYKTSIARSPRQALVSIPQSISETTGPNFSHLGFGAHDHDLLLNFNNGGLPIGERIIVAGRVVDQYGKPVPNTLVEMWQANAGGRERHKNDRYLAPLDPNFGGVGRCLTDSDGYYSFRTIKPGPYPWRNGPNDWRPAHIHFGISGPSIATKLITQLYFEGDPLIPMCPIVKSIANPEAVQQLIAKLDMNNANPMDCLAYRFDIVLRGQRKTHFENC

来源 Source

来源生物 organism	Pseudomonas putida
NCBI 分类编号 ncbi_taxonomy_id	303
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1314

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1ykma_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykme_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmf_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmg_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmh_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmi_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmj_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykmk_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

结构域编号 domain_id	d1ykml_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.3 — Prealbumin-like
超家族 Superfamily superfamily	b.3.6 — Aromatic compound dioxygenase
家族 Family family	b.3.6.1 — Aromatic compound dioxygenase

CATH v4.4 (12 domains)

结构域编号 domain_id	1ykmA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmF00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmH00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmI00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmJ00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmK00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

结构域编号 domain_id	1ykmL00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	130 — Protocatechuate 3,4-Dioxygenase, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Aromatic compound dioxygenase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	196.612 Å
晶胞边长 b length_b	127.728 Å
晶胞边长 c length_c	134.321 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.66 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	I 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.220 Å
最低分辨率 resolution_low	7.810 Å
R 因子 r_factor	0.1690
R_work r_work	0.1690
R_free r_free	0.1990

fit	/app/data/saxs_computation/yk/1ykm/1ykm.fit
pddf	/app/data/pr_computation/yk/1ykm/1ykm.pr.out
profile	/app/data/saxs_computation/yk/1ykm/1ykm.dat
