SAXSdb — 1ylf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RRF2 family protein

Bacillus cereus ATCC 14579

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	CHLORIDE ION × 5 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	CHLORIDE ION × 10 water × 6	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 3 water × 1	Consistent with protein count
5	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q81EX1_BACCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–149； UniProt 1–146 Author chain B； PDBConstruct 4–149； UniProt 1–146 Author chain C； PDBConstruct 4–149； UniProt 1–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ylf
Deposition date deposition_date	2005-01-19
Structure title title	X-ray crystal structure of BC1842 protein from Bacillus cereus, a member of the Rrf2 family of putative transcription regulators.
Keywords keywords	;structural genomics, RRF2 family, transcription regulator, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG ;; TRANSCRIPTION REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ylf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ylf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

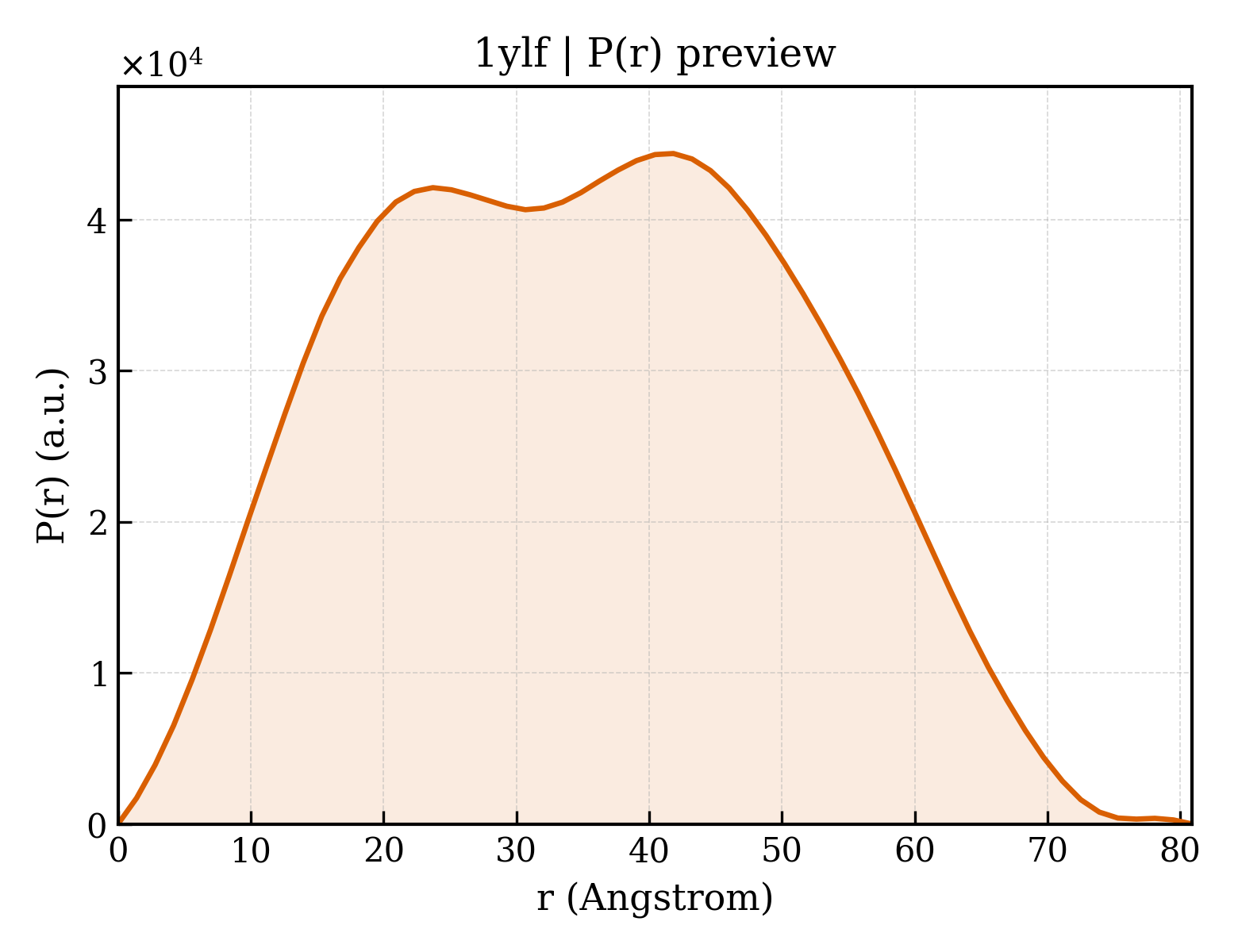

1ylf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.45 Å
Rg (electron density)	26.53 Å
Total Rg	27.34 Å
Atom count	2728
Residues	342
Excluded volume	49547 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ylf__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ylf__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ylf__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ylf__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1ylf__assembly_5__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RRF2 family protein
Molecular weight formula_weight	16867.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	2768

SNAMITMKISSRFSIAVHILSILKNNPSSLCTSDYMAESVNTNPVVIRKIMSYLKQAGFVYVNRGPGGAGLLKDLHEITLLDVYHAVNVVEEDKLFHIHEQPNPDCPIGANIQAVLEIILIQAQSAMEEVLRNITMGQLFETLQEKMNA

Source Source

Source organism organism	Bacillus cereus ATCC 14579
NCBI taxonomy ID ncbi_taxonomy_id	226900
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ylfa1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.55 — Transcriptional regulator Rrf2

Domain ID domain_id	d1ylfb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.0 — automated matches

Domain ID domain_id	d1ylfc_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.0 — automated matches

CATH v4.4 (3 domains)

Domain ID domain_id	1ylfA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ylfB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ylfC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	73.080 Å
Unit-cell length b length_b	73.080 Å
Unit-cell length c length_c	157.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2160
R_work r_work	0.2170
R_free r_free	0.2500

X-ray crystal structure of BC1842 protein from Bacillus cereus, a member of the Rrf2 family of putative transcription regulators.
