SAXSdb — 1ym0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

fibrinotic enzyme component B

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	fibrinotic enzyme component B × 1 ;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 MAGNESIUM ION × 3 SULFATE ION × 2 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 4 其他Polymer 2	fibrinotic enzyme component B × 2 ;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 MAGNESIUM ION × 6 SULFATE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q3HR18_EISFO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–238； UniProt 8–245

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ym0
Deposition date deposition_date	2005-01-20
Structure title title	Crystal Structure of Earthworm Fibrinolytic Enzyme Component B: a Novel, Glycosylated Two-chained Trypsin
Keywords keywords	two chains, glycosylation, pyroglutamation, eight-membered ring, cis peptide bond, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ym0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ym0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

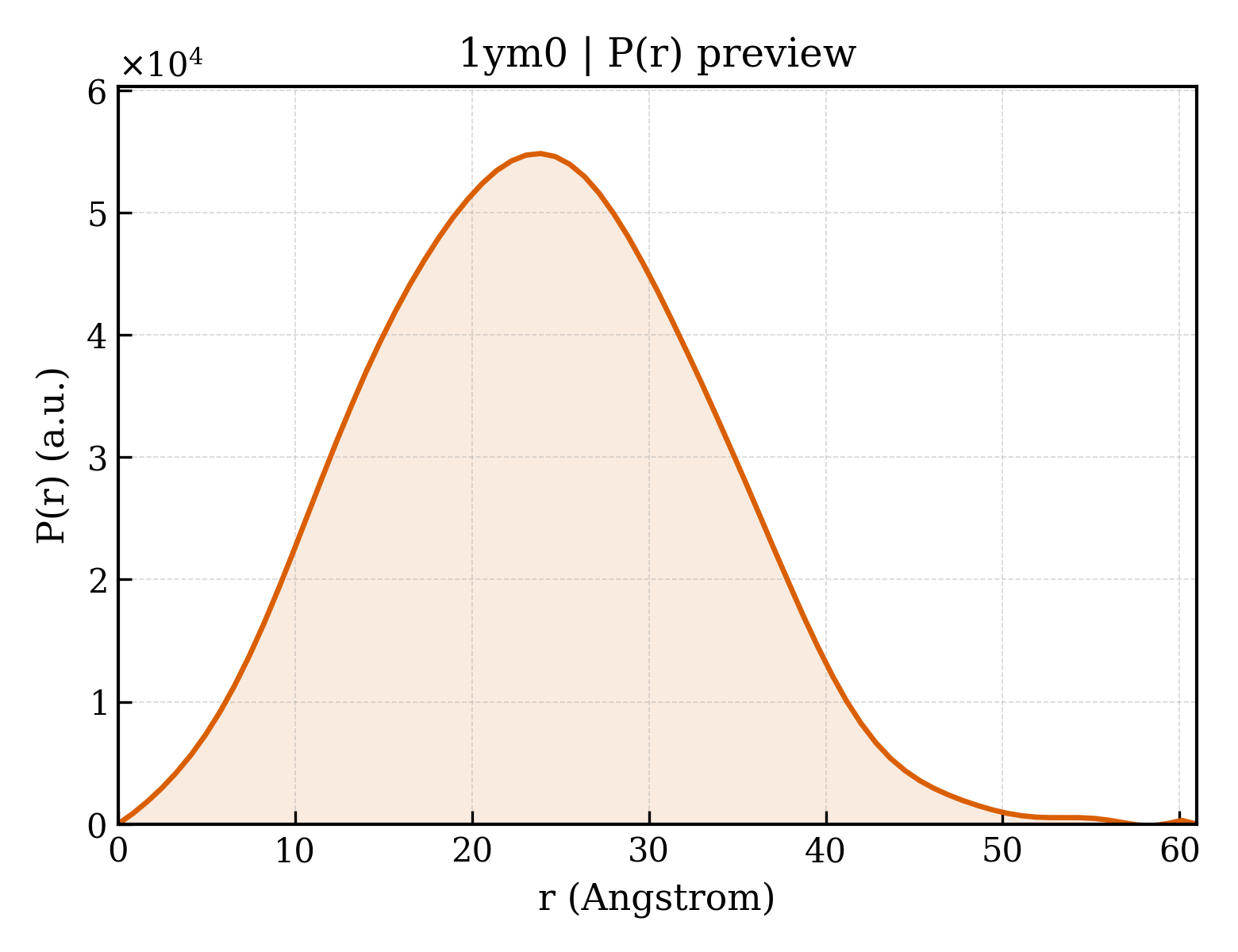

1ym0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.18 Å
Rg (electron density)	17.14 Å
Total Rg	18.11 Å
Atom count	2055
Residues	264
Excluded volume	35973 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ym0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ym0__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	fibrinotic enzyme component B
Molecular weight formula_weight	25333.1 kDa
EC 编号 ec_number	3.4.21.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2307

IVGGIEARPYEFPWQVSVRRKSSDSHFCGGSIINDRWVVCAAHCMQGEAPALVSLVVGEHDSSAASTVRQTHDVDSIFVNENYDPATLENDVSVIKTAVAITFDINVGPICAPDPANDYVYRKSQCSGWGTINSGGVCCPAVLRYVTLNITTNAFCDAVYTSDTIYDDMICATDNTGMTDRDSCQGDSGGPLSVKDGSGIFSLVGIVSWGIGCASGYPGVYSRVGFHAGWITDTITNN

Entity 2 Entity 2 polymer

Description description	fibrinotic enzyme component B
Molecular weight formula_weight	2819.0 kDa
EC 编号 ec_number	3.4.21.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QPPVWYPGGQCGVSQYSDAGDMELPPG

Entity 3 Entity 3 branched

Description description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1041.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	252

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ym0a_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	1ym0A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1ym0A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	96.353 Å
Unit-cell length b length_b	96.353 Å
Unit-cell length c length_c	150.809 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.060 Å
Low-resolution limit resolution_low	48.200 Å
R factor r_factor	0.1810
R_work r_work	0.1810
R_free r_free	0.1920

Crystal Structure of Earthworm Fibrinolytic Enzyme Component B: a Novel, Glycosylated Two-chained Trypsin
