SAXSdb — 1yo5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SAM pointed domain containing ets transcription factor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	Enhancer site of Prostate Specific Antigen Promoter Region × 1 Enhancer site of Prostate Specific Antigen Promoter Region × 1 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O95238_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 9–97； UniProt 247–335

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1yo5
Deposition date deposition_date	2005-01-26
Structure title title	Analysis of the 2.0A crystal structure of the protein-DNA complex of human PDEF Ets domain bound to the prostate specific antigen regulatory site
Keywords keywords	ETS; PROTEIN-DNA Complex; DOUBLE HELIX, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1yo5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

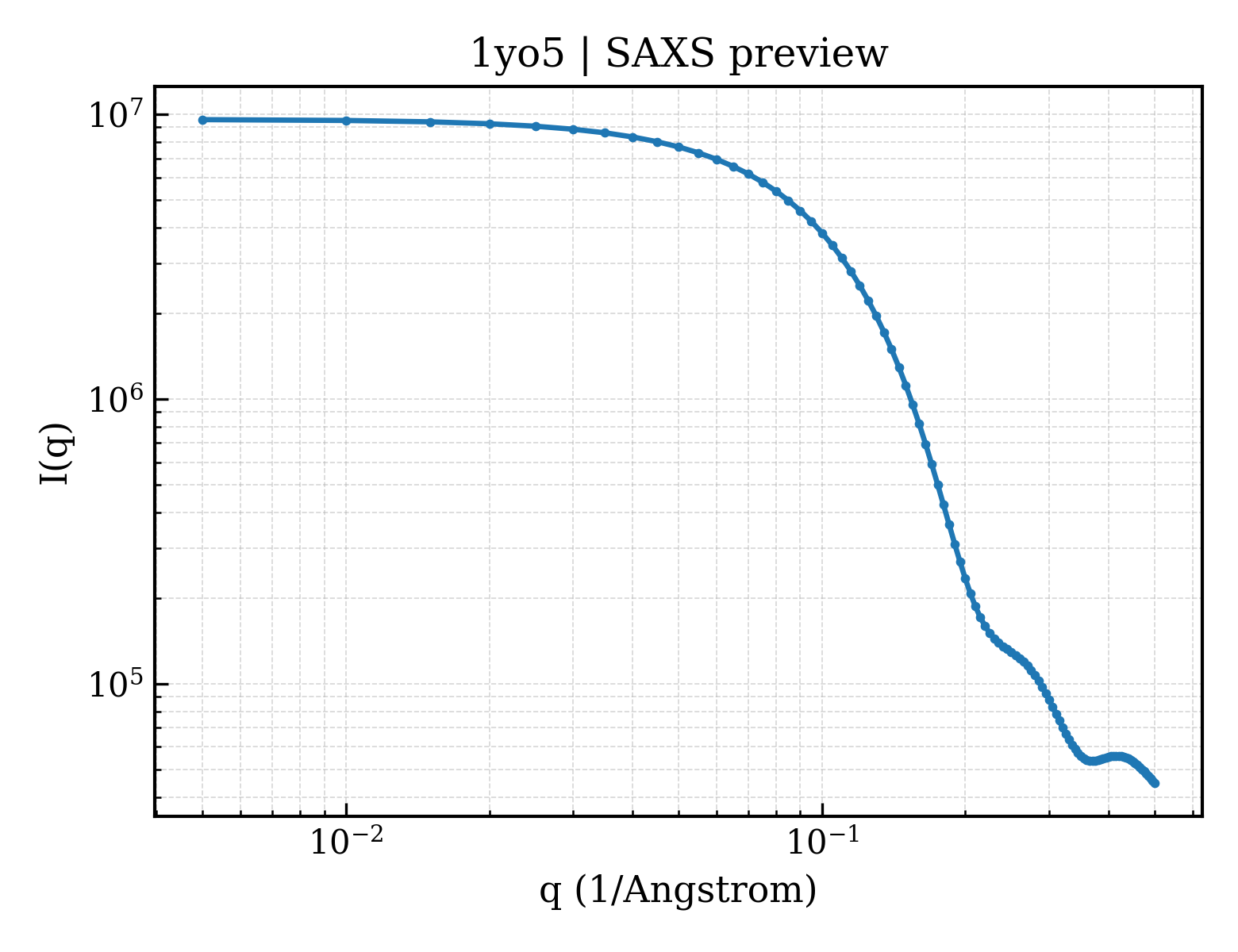

1yo5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1yo5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.39 Å
Rg (electron density)	15.26 Å
Total Rg	16.31 Å
Atom count	1286
Residues	114
Excluded volume	21440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1yo5__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Enhancer site of Prostate Specific Antigen Promoter Region
Molecular weight formula_weight	4046.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A
Atom count atom_count	1442

TAGCAGGATGTGT

Entity 2 Entity 2 polymer

Description description	Enhancer site of Prostate Specific Antigen Promoter Region
Molecular weight formula_weight	3895.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

ACACATCCTGCTA

Entity 3 Entity 3 polymer

Description description	SAM pointed domain containing ets transcription factor
Molecular weight formula_weight	11587.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSLDALGSQPIHLWQFLKELLLKPHSYGRFIRWLNKEKGIFKIEDSAQVARLWGIRKNRPAMNYDKLSRSIRQYYKKGIIRKPDISQRLVYQFVHPI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1yo5c1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.21 — ets domain

CATH v4.4 (1 domains)

Domain ID domain_id	1yo5C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	36.160 Å
Unit-cell length b length_b	71.476 Å
Unit-cell length c length_c	39.136 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.45 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	35.900 Å
R factor r_factor	0.2049
R_work r_work	0.2032
R_free r_free	0.2389

Analysis of the 2.0A crystal structure of the protein-DNA complex of human PDEF Ets domain bound to the prostate specific antigen regulatory site
