Human Oxidized Low Density Lipoprotein Receptor LOX-1 P3 1 21 Space Group

Method: X-RAY DIFFRACTION D_max: 142.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

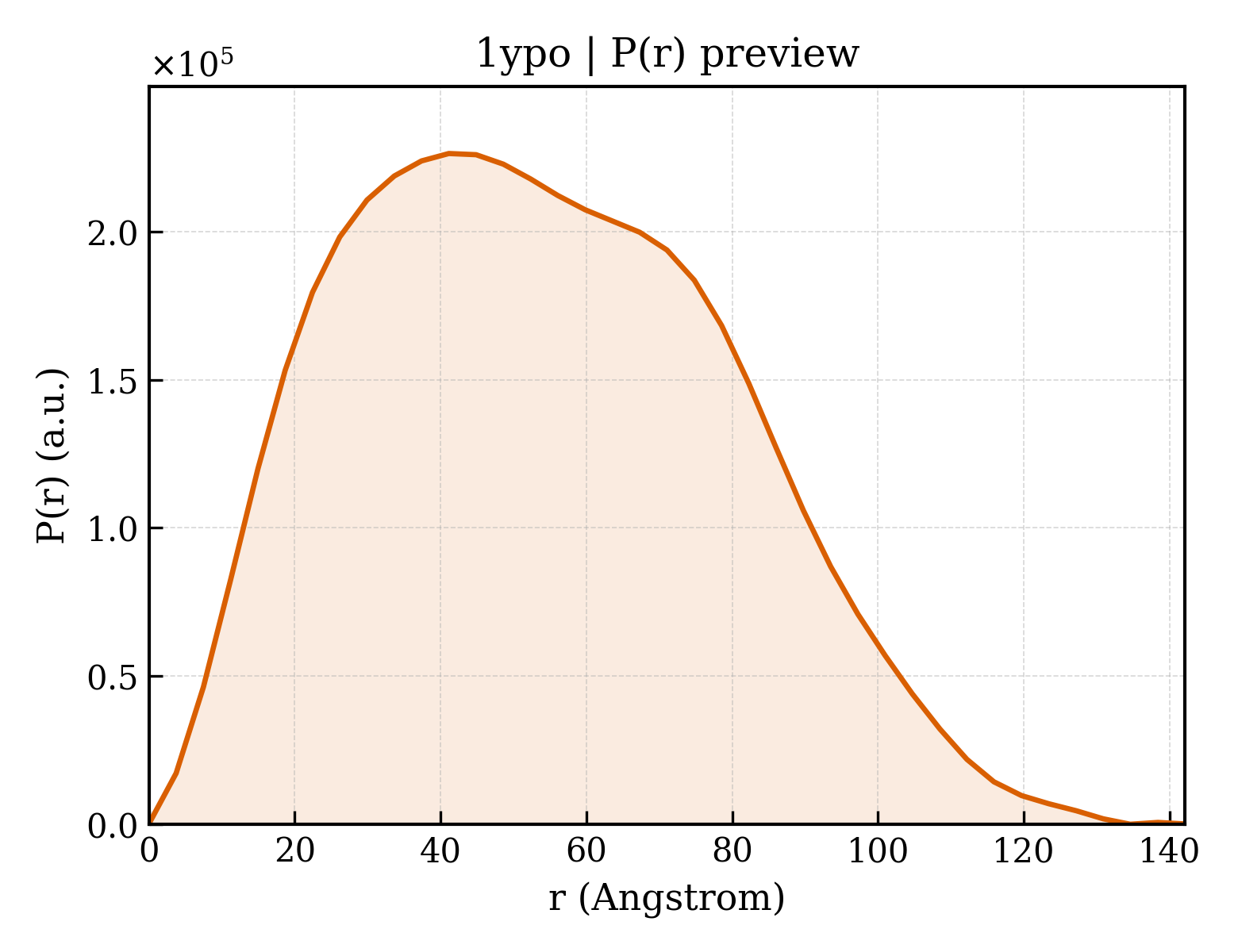

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ypo
沉积日期 deposition_date	2005-01-31
结构标题 title	Human Oxidized Low Density Lipoprotein Receptor LOX-1 P3 1 21 Space Group
关键词 keywords	Oxidized Low Density Lipoprotein receptor, Lox-1, CTLD, C-type lectin like domain, NK Cell receptor, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.93 Å
回转半径 Rg (电子) rg_electron	41.78 Å
零角强度 I(0) i0	208935000.00
分子量 molecular_weight	118630.0 kDa
排除体积 excluded_volume	148420 Å³
包络体积 envelope_volume	205120 Å³
水化壳体积 shell_volume	42948 Å³
包络直径 envelope_diameter	146.0 Å
壳层 Rg shell_rg	44.44 Å
包络 Rg envelope_rg	41.16 Å
形状 Rg shape_rg	41.75 Å
总 Rg total_rg	42.03 Å
总原子数 total_atoms	8358
残基数 n_residues	1043
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	142.1 Å
Rg (实空间) rg_real	42.03 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	2.0890e+08
I(0) 误差 (实空间) i0_real_error	3.9420e+06
Rg (倒空间) rg_reciprocal	41.94 Å
I(0) (倒空间) i0_reciprocal	208900000.0000
解质量估计 total_estimate	0.8143
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	41.1 Å
偏度 Skewness skewness	0.276
峰度 Kurtosis kurtosis	-0.612
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11870000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 19 domains

SCOP 2.08 (11 domains)

结构域编号 domain_id	d1ypoa_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypob2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypob3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1ypoc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypoc3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1ypod_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypoe_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypof_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypog2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

结构域编号 domain_id	d1ypog3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1ypoh_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.0 — automated matches

CATH v4.4 (8 domains)

结构域编号 domain_id	1ypoA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1ypoH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	97.700 Å
晶胞边长 b length_b	97.700 Å
晶胞边长 c length_c	215.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2280
R_work r_work	0.2280
R_free r_free	0.2850

描述 description	oxidised low density lipoprotein (lectin-like) receptor 1
分子量 formula_weight	15040.1 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	8358

Human Oxidized Low Density Lipoprotein Receptor LOX-1 P3 1 21 Space Group

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 19 domains

SCOP 2.08 (11 domains)

CATH v4.4 (8 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli
