1yq9

Structure of the unready oxidized form of [NiFe] hydrogenase

Method: X-RAY DIFFRACTION D_max: 120.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

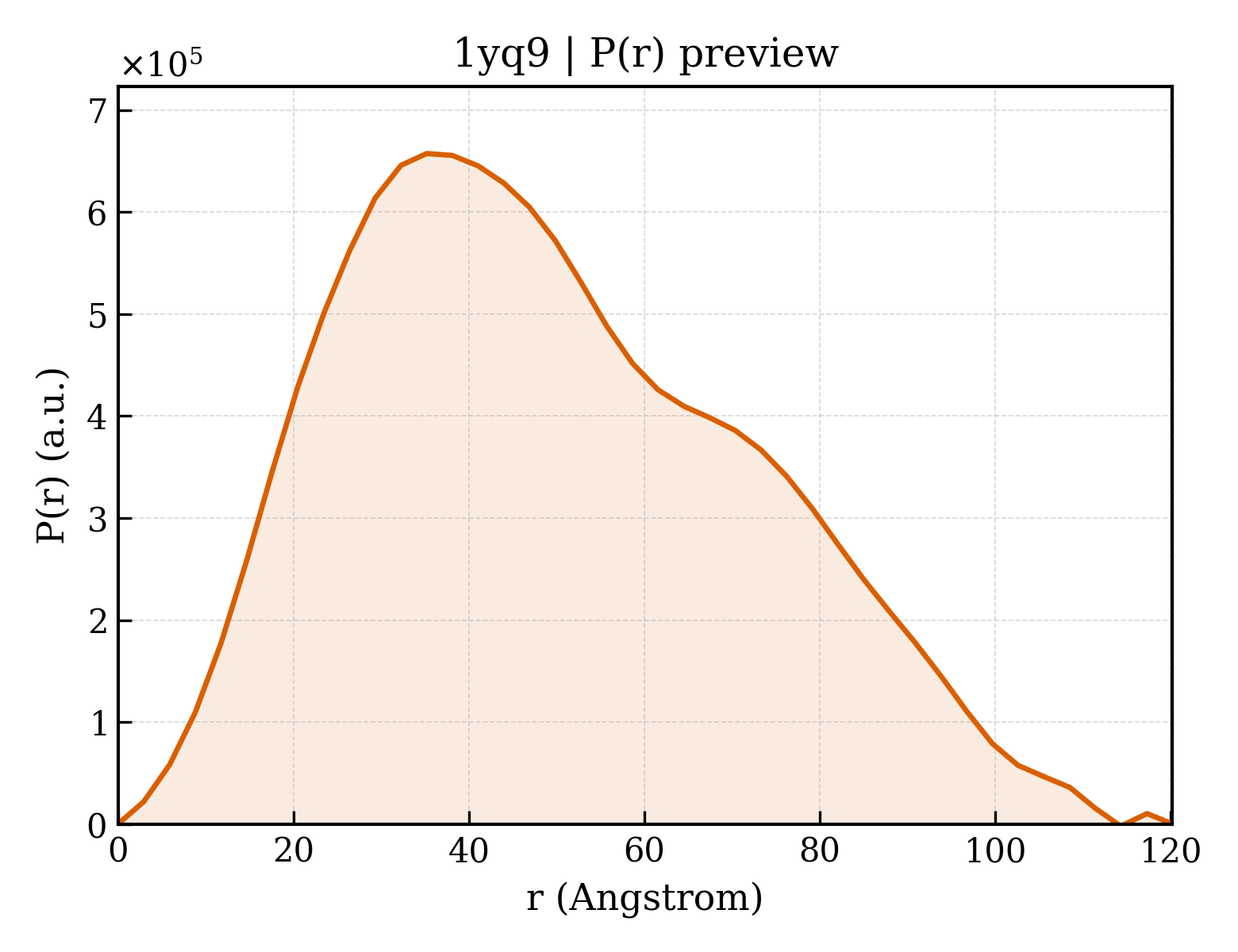

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1yq9
沉积日期 deposition_date	2005-02-01
结构标题 title	Structure of the unready oxidized form of [NiFe] hydrogenase
关键词 keywords	oxidoreductase; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.17 Å
回转半径 Rg (电子) rg_electron	38.23 Å
零角强度 I(0) i0	478598000.00
分子量 molecular_weight	177040.0 kDa
排除体积 excluded_volume	220260 Å³
包络体积 envelope_volume	263040 Å³
水化壳体积 shell_volume	56372 Å³
包络直径 envelope_diameter	127.2 Å
壳层 Rg shell_rg	44.89 Å
包络 Rg envelope_rg	38.07 Å
形状 Rg shape_rg	38.34 Å
总 Rg total_rg	38.21 Å
总原子数 total_atoms	12351
残基数 n_residues	1581
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.2 Å
Rg (实空间) rg_real	38.31 Å
Rg 误差 (实空间) rg_real_error	1.13 Å
I(0) (实空间) i0_real	4.7860e+08
I(0) 误差 (实空间) i0_real_error	8.1880e+06
Rg (倒空间) rg_reciprocal	38.23 Å
I(0) (倒空间) i0_reciprocal	478600000.0000
解质量估计 total_estimate	0.8155
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.2 Å
偏度 Skewness skewness	0.389
峰度 Kurtosis kurtosis	-0.566
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	173000000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.878; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Periplasmic [NiFe] hydrogenase small subunit
分子量 formula_weight	28351.4 kDa
EC 编号 ec_number	1.12.2.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	12882

LTAKKRPSVVYLHNAECTGCSESVLRTVDPYVDELILDVISMDYHETLMAGAGHAVEEALHEAIKGDFVCVIEGGIPMGDGGYWGKVGGRNMYDICAEVAPKAKAVIAIGTCATYGGVQAAKPNPTGTVGVNEALGKLGVKAINIAGCPPNPMNFVGTVVHLLTKGMPELDKQGRPVMFFGETVHDNCPRLKHFEAGEFATSFGSPEAKKGYCLYELGCKGPDTYNNCPKQLFNQVNWPVQAGHPCIACSEPNFWDLYSPFYSA

Entity 2 polymer

描述 description	Periplasmic [NiFe] hydrogenase large subunit
分子量 formula_weight	59658.0 kDa
EC 编号 ec_number	1.12.2.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I

MSEMQGNKIVVDPITRIEGHLRIEVEVEGGKIKNAWSMSTLFRGLEMILKGRDPRDAQHFTQRACGVCTYVHALASVRAVDNCVGVKIPENATLMRNLTMGAQYMHDHLVHFYHLHALDWVNVANALNADPAKAARLANDLSPRKTTTESLKAVQAKVKALVESGQLGIFTNAYFLGGHPAYVLPAEVDLIATAHYLEALRVQVKAARAMAIFGAKNPHTQFTVVGGCTNYDSLRPERIAEFRKLYKEVREFIEQVYITDLLAVAGFYKNWAGIGKTSNFLTCGEFPTDEYDLNSRYTPQGVIWGNDLSKVDDFNPDLIEEHVKYSWYEGADAHHPYKGVTKPKWTEFHGEDRYSWMKAPRYKGEAFEVGPLASVLVAYAKKHEPTVKAVDLVLKTLGVGPEALFSTLGRTAARGIQCLTAAQEVEVWLDKLEANVKAGKDDLYTDWQYPTESQGVGFVNAPRGMLSHWIVQRGGKIENFQLVVPSTWNLGPRCAEGKLSAVEQALIGTPIADPKRPVEILRTVHSYDPCIACGVH

Entity 3 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	FE3-S4 CLUSTER
分子量 formula_weight	295.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	HYDROSULFURIC ACID
分子量 formula_weight	34.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

Entity 7 non-polymer

描述 description	NICKEL (II) ION
分子量 formula_weight	58.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 8 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	CARBONMONOXIDE-(DICYANO) IRON
分子量 formula_weight	135.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 10 non-polymer

描述 description	PEROXIDE ION
分子量 formula_weight	32.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	515

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1yq9a_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.19 — HydA/Nqo6-like
超家族 Superfamily superfamily	e.19.1 — HydA/Nqo6-like
家族 Family family	e.19.1.1 — Nickel-iron hydrogenase, small subunit

结构域编号 domain_id	d1yq9b_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.19 — HydA/Nqo6-like
超家族 Superfamily superfamily	e.19.1 — HydA/Nqo6-like
家族 Family family	e.19.1.1 — Nickel-iron hydrogenase, small subunit

结构域编号 domain_id	d1yq9h1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.18 — HydB/Nqo4-like
超家族 Superfamily superfamily	e.18.1 — HydB/Nqo4-like
家族 Family family	e.18.1.1 — Nickel-iron hydrogenase, large subunit

结构域编号 domain_id	d1yq9i_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.18 — HydB/Nqo4-like
超家族 Superfamily superfamily	e.18.1 — HydB/Nqo4-like
家族 Family family	e.18.1.1 — Nickel-iron hydrogenase, large subunit

CATH v4.4 (6 domains)

结构域编号 domain_id	1yq9A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	700 — NADH:ubiquinone oxidoreductase-like, 20kDa subunit

结构域编号 domain_id	1yq9A02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	480 — Cytochrome-c3 Hydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 hydrogenase, C-terminal domain

结构域编号 domain_id	1yq9B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	700 — NADH:ubiquinone oxidoreductase-like, 20kDa subunit

结构域编号 domain_id	1yq9B02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	480 — Cytochrome-c3 Hydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 hydrogenase, C-terminal domain

结构域编号 domain_id	1yq9H00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	645 — Cytochrome-c3 Hydrogenase; chain B
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 Hydrogenase, chain B

结构域编号 domain_id	1yq9I00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	645 — Cytochrome-c3 Hydrogenase; chain B
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 Hydrogenase, chain B

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	62.750 Å
晶胞边长 b length_b	93.440 Å
晶胞边长 c length_c	69.030 Å
晶胞夹角 α angle_alpha	89.33 °
晶胞夹角 β angle_beta	102.41 °
晶胞夹角 γ angle_gamma	90.95 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.350 Å
最低分辨率 resolution_low	13.000 Å
R 因子 r_factor	0.1350
R_work r_work	0.1320
R_free r_free	0.1830

fit	/app/data/saxs_computation/yq/1yq9/1yq9.fit
pddf	/app/data/pr_computation/yq/1yq9/1yq9.pr.out
profile	/app/data/saxs_computation/yq/1yq9/1yq9.dat
