SAXSdb — 1ys6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulatory protein prrA

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRRA_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–233； UniProt 1–233 Author chain B； PDBConstruct 1–233； UniProt 1–233

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ys6
Deposition date deposition_date	2005-02-07
Structure title title	Crystal structure of the response regulatory protein PrrA from Mycobacterium Tuberculosis
Keywords keywords	;Response regulator protein, Dna binding domain, Mycobacterium Tuberculosis Structural Proteomics Project, XMTB, Structural Genomics, TRANSCRIPTION REGULATOR ;; TRANSCRIPTION REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ys6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ys6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

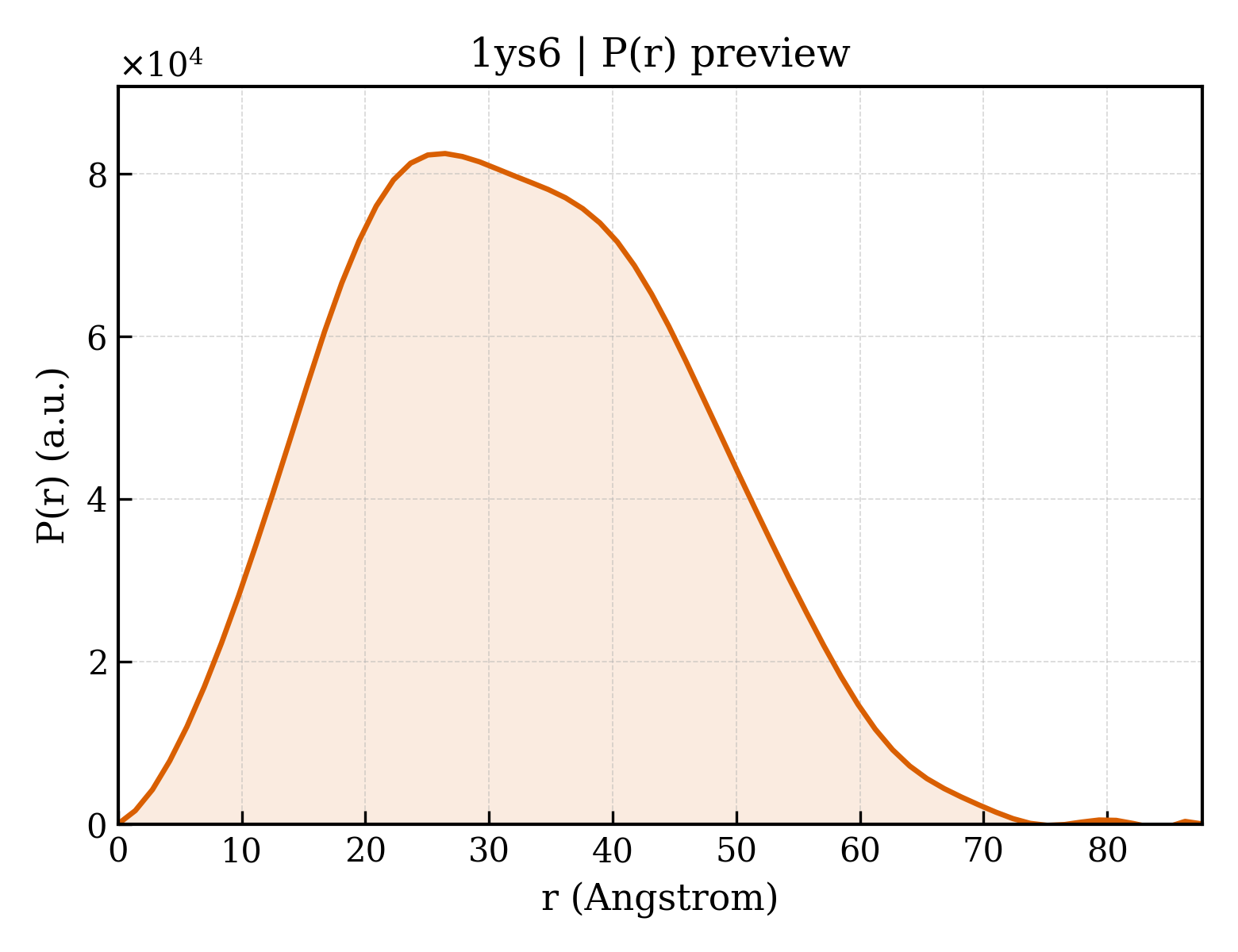

1ys6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.95 Å
Rg (electron density)	24.03 Å
Total Rg	24.88 Å
Atom count	3416
Residues	452
Excluded volume	61034 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ys6__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transcriptional regulatory protein prrA
Molecular weight formula_weight	25037.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3761

MDTGVTSPRVLVVDDDSDVLASLERGLRLSGFEVATAVDGAEALRSATENRPDAIVLDINMPVLDGVSVVTALRAMDNDVPVCVLSARSSVDDRVAGLEAGADDYLVKPFVLAELVARVKALLRRRGSTATSSSETITVGPLEVDIPGRRARVNGVDVDLTKREFDLLAVLAEHKTAVLSRAQLLELVWGYDFAADTNVVDVFIGYLRRKLEAGGGPRLLHTVRGVGFVLRMQ

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	340

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ys6a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
Family Family family	a.4.6.1 — PhoB-like

Domain ID domain_id	d1ys6a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d1ys6b1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
Family Family family	a.4.6.1 — PhoB-like

Domain ID domain_id	d1ys6b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

CATH v4.4 (4 domains)

Domain ID domain_id	1ys6A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1ys6A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ys6B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1ys6B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	37.222 Å
Unit-cell length b length_b	46.538 Å
Unit-cell length c length_c	65.660 Å
Unit-cell angle α angle_alpha	100.29 °
Unit-cell angle β angle_beta	101.68 °
Unit-cell angle γ angle_gamma	92.52 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.770 Å
Low-resolution limit resolution_low	18.630 Å
R factor r_factor	0.1910
R_work r_work	0.1879
R_free r_free	0.2474

Crystal structure of the response regulatory protein PrrA from Mycobacterium Tuberculosis
