1yve

ACETOHYDROXY ACID ISOMEROREDUCTASE COMPLEXED WITH NADPH, MAGNESIUM AND INHIBITOR IPOHA (N-HYDROXY-N-ISOPROPYLOXAMATE)

Method: X-RAY DIFFRACTION D_max: 126.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

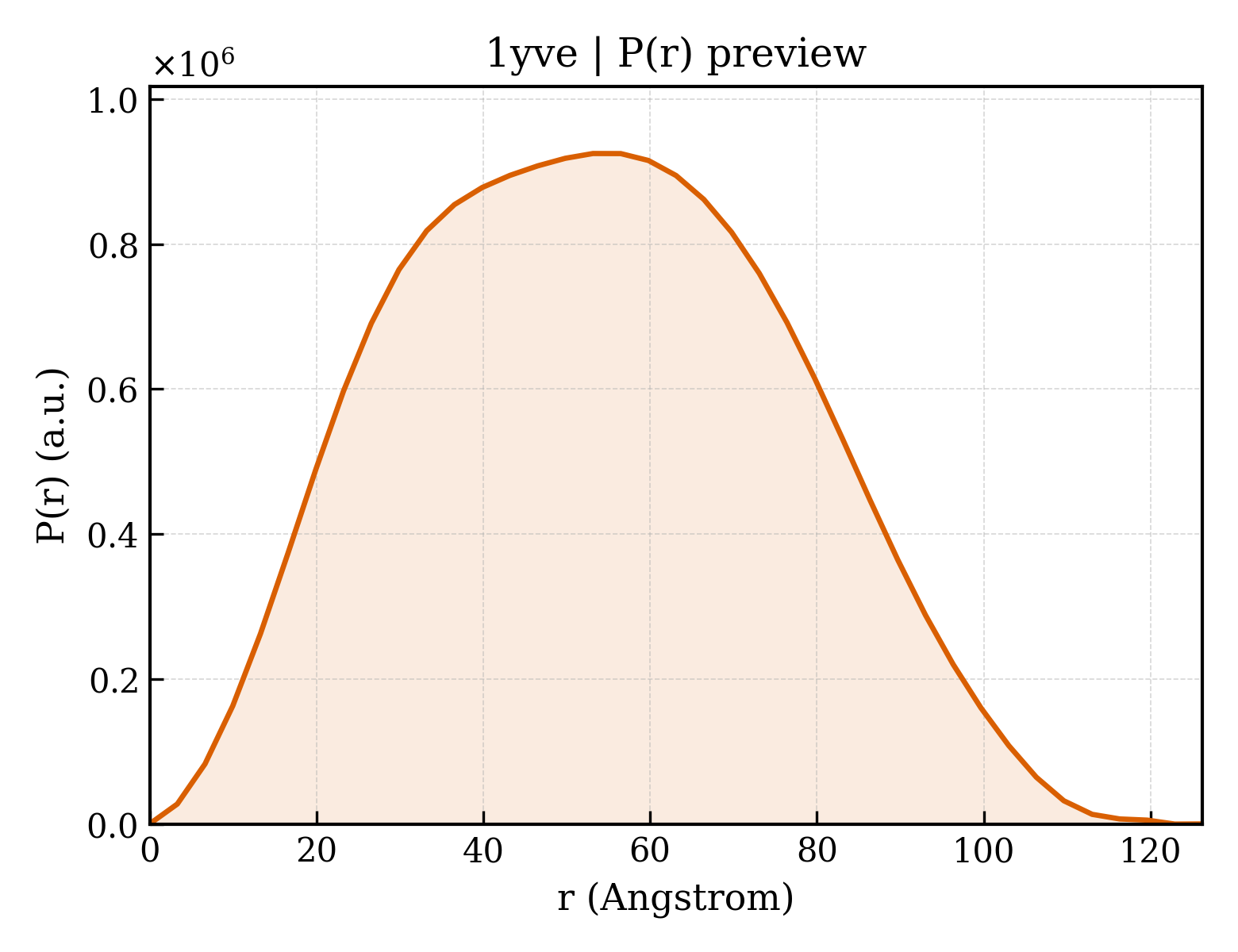

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1yve
沉积日期 deposition_date	1996-10-11
结构标题 title	ACETOHYDROXY ACID ISOMEROREDUCTASE COMPLEXED WITH NADPH, MAGNESIUM AND INHIBITOR IPOHA (N-HYDROXY-N-ISOPROPYLOXAMATE)
关键词 keywords	OXIDOREDUCTASE, BRANCHED-CHAIN AMINO ACID BIOSYNTHESIS, MAGNESIUM, NADP, CHLOROPLAST, TRANSIT PEPTIDE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.24 Å
回转半径 Rg (电子) rg_electron	40.67 Å
零角强度 I(0) i0	766807000.00
分子量 molecular_weight	226870.0 kDa
排除体积 excluded_volume	283010 Å³
包络体积 envelope_volume	353120 Å³
水化壳体积 shell_volume	68177 Å³
包络直径 envelope_diameter	132.3 Å
壳层 Rg shell_rg	49.87 Å
包络 Rg envelope_rg	40.16 Å
形状 Rg shape_rg	40.66 Å
总 Rg total_rg	41.10 Å
总原子数 total_atoms	15940
残基数 n_residues	2046
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.2 Å
Rg (实空间) rg_real	41.10 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	7.6680e+08
I(0) 误差 (实空间) i0_real_error	1.2180e+07
Rg (倒空间) rg_reciprocal	41.24 Å
I(0) (倒空间) i0_reciprocal	766900000.0000
解质量估计 total_estimate	0.6183
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	53.1 Å
偏度 Skewness skewness	0.125
峰度 Kurtosis kurtosis	-0.689
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	608600000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 0.046; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	ACETOHYDROXY ACID ISOMEROREDUCTASE
分子量 formula_weight	57045.5 kDa
EC 编号 ec_number	1.1.1.86
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,J,K,L
原子数 atom_count	17729

MVSAPSIDTPSATTFDFDSSVFKKEKVTLSGHDEYIVRGGRNLFPLLPDAFKGIKQIGVIGWGSQAPAQAQNLKDSLTEAKSDVVVKIGLRKGSNSFAEARAAGFSEENGTLGDMWETISGSDLVLLLISDSAQADNYEKVFSHMKPNSILGLSHGFLLGHLQSLGQDFPKNISVIAVCPKGMGPSVRRLYVQGKEVNGAGINSSFAVHQDVDGRATDVALGWSIALGSPFTFATTLEQEYKSDIFGERGILLGAVHGIVECLFRRYTESGMSEDLAYKNTVECITGVISKTISTKGMLALYNSLSEEGKKDFQAAYSASYYPSMDILYECYEDVASGSEIRSVVLAGRRFYEKEGLPAFPMGKIDQTRMWKVGEKVRSVRPAGDLGPLYPFTAGVYVALMMAQIEILRKKGHSYSEIINESVIEAVDSLNPFMHARGVSFMVDNCSTTARLGSRKWAPRFDYILSQQALVAVDNGAPINQDLISNFLSDPVHEAIGVCAQLRPSVDISVTADADFVRPELRQA

来源 Source

来源生物 organism	Spinacia oleracea
通用名 common_name	spinach
NCBI 分类编号 ncbi_taxonomy_id	3562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	745.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	N-HYDROXY-N-ISOPROPYLOXAMIC ACID
分子量 formula_weight	147.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1789

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1yvei1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

结构域编号 domain_id	d1yvei2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1yvej1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

结构域编号 domain_id	d1yvej2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1yvek1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

结构域编号 domain_id	d1yvek2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d1yvel1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

结构域编号 domain_id	d1yvel2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1yveI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1yveI02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2

结构域编号 domain_id	1yveJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1yveJ02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2

结构域编号 domain_id	1yveK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1yveK02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2

结构域编号 domain_id	1yveL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1yveL02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	111.430 Å
晶胞边长 b length_b	61.940 Å
晶胞边长 c length_c	162.540 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.08 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.650 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.1970
R_work r_work	0.1970
R_free r_free	0.2390
