SAXSdb — 1z2b

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1z2b
沉积日期 deposition_date	2005-03-08
结构标题 title	Tubulin-colchicine-vinblastine: stathmin-like domain complex
关键词 keywords	ALPHA-TUBULIN, BETA-TUBULIN, COLCHICINE, GTPASE, MICROTUBULE, STATHMIN, TUBULIN, VINBLASTINE, CELL CYCLE; CELL CYCLE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.25 Å
回转半径 Rg (电子) rg_electron	52.09 Å
零角强度 I(0) i0	631450000.00
分子量 molecular_weight	201790.0 kDa
排除体积 excluded_volume	249490 Å³
包络体积 envelope_volume	324690 Å³
水化壳体积 shell_volume	58348 Å³
包络直径 envelope_diameter	187.0 Å
壳层 Rg shell_rg	46.53 Å
包络 Rg envelope_rg	52.30 Å
形状 Rg shape_rg	52.09 Å
总 Rg total_rg	51.88 Å
总原子数 total_atoms	14173
残基数 n_residues	1816
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	177.6 Å
Rg (实空间) rg_real	51.96 Å
Rg 误差 (实空间) rg_real_error	2.23 Å
I(0) (实空间) i0_real	6.3140e+08
I(0) 误差 (实空间) i0_real_error	1.2800e+07
Rg (倒空间) rg_reciprocal	50.66 Å
I(0) (倒空间) i0_reciprocal	630300000.0000
解质量估计 total_estimate	0.6609
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	34.4 Å
偏度 Skewness skewness	0.662
峰度 Kurtosis kurtosis	-0.369
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	148800000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.384; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.274; Smooth: 0.160

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Tubulin alpha chain
分子量 formula_weight	49947.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	14173

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLIGQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRSIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGIDSYEDEDEGEE

Entity 2 polymer

描述 description	Tubulin beta chain
分子量 formula_weight	49937.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEATGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYSIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDSKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEEGEDEA

Entity 3 polymer

描述 description	RB3 STATHMIN-LIKE DOMAIN 4
分子量 formula_weight	16713.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

ADMEVIELNKCTSGQSFEVILKPPSFDGVPEFNASLPRRRDPSLEEIQKKLEAAEERRKYQEAELLKHLAEKREHEREVIQKAIEENNNFIKMAKEKLAQKMESNKENREAHLAAMLERLQEKDKHAEEVRKNKELKEEASR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	GUANOSINE-5'-DIPHOSPHATE
分子量 formula_weight	443.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	2-MERCAPTO-N-[1,2,3,10-TETRAMETHOXY-9-OXO-5,6,7,9-TETRAHYDRO-BENZO[A]HEPTALEN-7-YL]ACETAMIDE
分子量 formula_weight	431.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 8 non-polymer

描述 description	(2ALPHA,2'BETA,3BETA,4ALPHA,5BETA)-VINCALEUKOBLASTINE
分子量 formula_weight	811.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1z2ba1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1z2ba2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

结构域编号 domain_id	d1z2bb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1z2bb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

结构域编号 domain_id	d1z2bc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1z2bc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

结构域编号 domain_id	d1z2bd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.32 — Tubulin nucleotide-binding domain-like
超家族 Superfamily superfamily	c.32.1 — Tubulin nucleotide-binding domain-like
家族 Family family	c.32.1.1 — Tubulin, GTPase domain

结构域编号 domain_id	d1z2bd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.79 — Bacillus chorismate mutase-like
超家族 Superfamily superfamily	d.79.2 — Tubulin C-terminal domain-like
家族 Family family	d.79.2.1 — Tubulin, C-terminal domain

结构域编号 domain_id	d1z2be1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
超家族 Superfamily superfamily	a.137.10 — Stathmin
家族 Family family	a.137.10.1 — Stathmin

结构域编号 domain_id	d1z2be2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	324.852 Å
晶胞边长 b length_b	324.852 Å
晶胞边长 c length_c	54.208 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 65
空间群编号 int_tables_number	170
晶系 crystal_system	—

分辨率 resolution	4.100 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2124
R_work r_work	0.2094
R_free r_free	0.2689

fit	/app/data/saxs_computation/z2/1z2b/1z2b.fit
pddf	/app/data/pr_computation/z2/1z2b/1z2b.pr.out
profile	/app/data/saxs_computation/z2/1z2b/1z2b.dat

Tubulin-colchicine-vinblastine: stathmin-like domain complex

SAXS 散射曲线 SAXS Profile

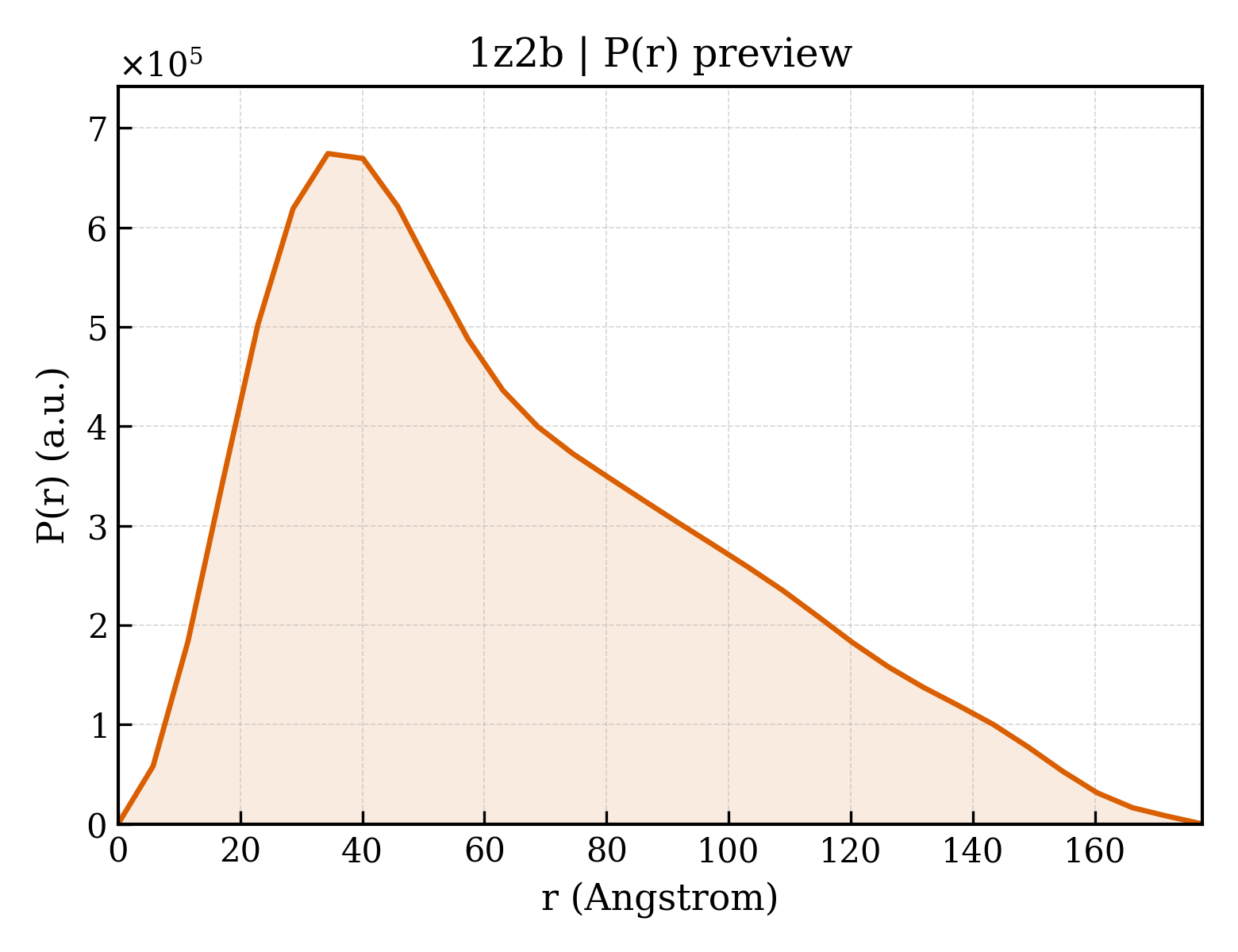

P(r) 距离分布 P(r) Distribution
