1z3g

Crystal structure of complex between Pvs25 and Fab fragment of malaria transmission blocking antibody 2A8

Method: X-RAY DIFFRACTION D_max: 131.2 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

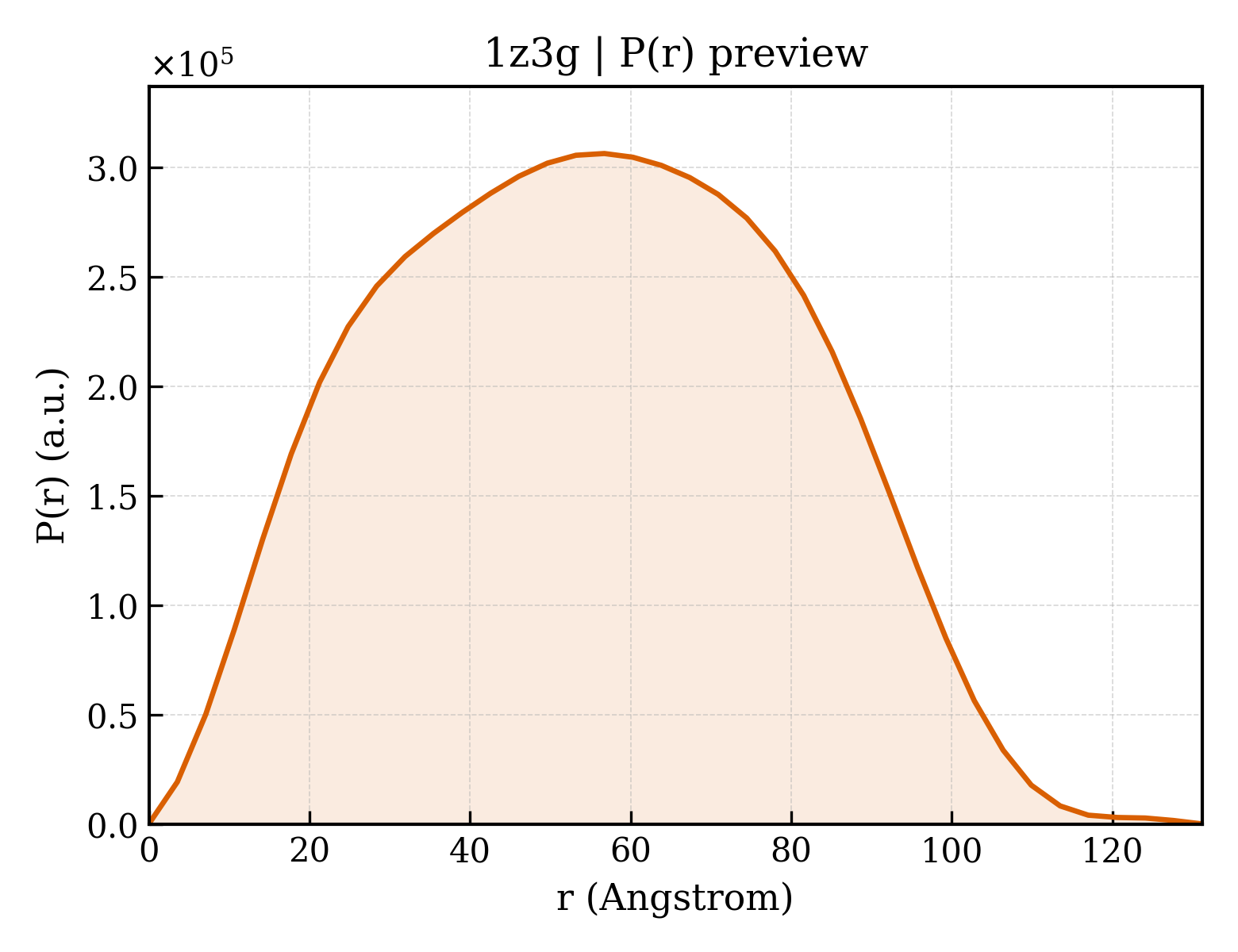

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1z3g
沉积日期 deposition_date	2005-03-12
结构标题 title	Crystal structure of complex between Pvs25 and Fab fragment of malaria transmission blocking antibody 2A8
关键词 keywords	2A8 Fab, Pvs25, IMMUNE SYSTEM-CELL ADHESION COMPLEX; IMMUNE SYSTEM/CELL ADHESION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.71 Å
回转半径 Rg (电子) rg_electron	41.86 Å
零角强度 I(0) i0	280287000.00
分子量 molecular_weight	130580.0 kDa
排除体积 excluded_volume	160940 Å³
包络体积 envelope_volume	252240 Å³
水化壳体积 shell_volume	51425 Å³
包络直径 envelope_diameter	139.8 Å
壳层 Rg shell_rg	46.46 Å
包络 Rg envelope_rg	40.26 Å
形状 Rg shape_rg	41.77 Å
总 Rg total_rg	42.43 Å
总原子数 total_atoms	9120
残基数 n_residues	1200
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.2 Å
Rg (实空间) rg_real	42.60 Å
Rg 误差 (实空间) rg_real_error	1.01 Å
I(0) (实空间) i0_real	2.8030e+08
I(0) 误差 (实空间) i0_real_error	4.9880e+06
Rg (倒空间) rg_reciprocal	42.71 Å
I(0) (倒空间) i0_reciprocal	280300000.0000
解质量估计 total_estimate	0.9106
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.7 Å
偏度 Skewness skewness	0.058
峰度 Kurtosis kurtosis	-0.793
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13200000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.917

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	2A8 Fab Light Chain
分子量 formula_weight	23328.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M
原子数 atom_count	9120

QIVLTQSPAIMSASPGEKVTMTCSASSSVSYMNWYQQKSGTSPKRWIYDTSKLASGVPAHFRGSGSGTSYSLTISGMEAEDAATYYCQQWSSNPPTFGSGTKLEINRADTAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 2 polymer

描述 description	2A8 Fab Heavy Chain
分子量 formula_weight	23229.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I

QVQLQQPGAELVKPGASVKLSCKASGYTFTSYWMHWVKQRPGQGLEWIGMIHPHSGSTNYNEKFKSKATLTVDKSSSTAYMQLSSLTSEDSAVYYCARGWDVAYWGQGTLVTVSAAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 3 polymer

描述 description	ookinete surface protein Pvs25
分子量 formula_weight	20548.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

EAEASAVTVDTICKNGQLVQMSNHFKCMCNEGLVHLSENTCEEKNECKKETLGKACGEFGQCIENPDPAQVNMYKCGCIEGYTLKEDTCVLDVCQYKNCGESGECIVEYLSEIQSAGCSCAIGKVPNPEDEKKCTKTGETACQLKCNTDNEVCKNVEGVYKCQCMEGFTFDKEKNVCLGPHHHHHH

来源 Source

来源生物 organism	Plasmodium vivax SaI-1
NCBI 分类编号 ncbi_taxonomy_id	126793
宿主生物 host_organism	Saccharomyces cerevisiae

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1z3gh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1z3gh2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1z3gi1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1z3gi2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1z3gl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1z3gl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1z3gm1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1z3gm2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (10 domains)

结构域编号 domain_id	1z3gA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	90 — Orthogonal Prism
拓扑 Topology topology	20 — Plasmodium vivax P25 fold
同源超家族 H-superfamily homologous superfamily	10 — Plasmodium vivax P25 domain

结构域编号 domain_id	1z3gB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	90 — Orthogonal Prism
拓扑 Topology topology	20 — Plasmodium vivax P25 fold
同源超家族 H-superfamily homologous superfamily	10 — Plasmodium vivax P25 domain

结构域编号 domain_id	1z3gH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gI01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gI02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gM01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1z3gM02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	86.262 Å
晶胞边长 b length_b	61.649 Å
晶胞边长 c length_c	142.650 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.68 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	49.150 Å
R 因子 r_factor	0.2750
R_work r_work	0.2720
R_free r_free	0.3270
