SAXSdb — 1z3s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiopoietin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 281–496	Fragment：Receptor binding domain (residues 281-496)	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG-4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.35 Å R-free 0.287
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 281–496	Fragment：Receptor binding domain (residues 281-496)	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；PEG-4000, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.35 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1Z3S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Z3U Structure of the Angiopoietin-2 Recptor Binding Domain and Identification of Surfaces Involved in Tie2 Recognition Deposited 2005-03-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 281–496（216 aa） Fragment：Receptor binding domain (residues 281-496)	Mutation：F469A, Y475A, Y476A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；Ammonium Sulfate and PEG-4000, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.25 Å R-free 0.278
1Z3U Structure of the Angiopoietin-2 Recptor Binding Domain and Identification of Surfaces Involved in Tie2 Recognition Deposited 2005-03-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 281–496（216 aa） Fragment：Receptor binding domain (residues 281-496)	Mutation：F469A, Y475A, Y476A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；Ammonium Sulfate and PEG-4000, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.25 Å R-free 0.278
1Z3U Structure of the Angiopoietin-2 Recptor Binding Domain and Identification of Surfaces Involved in Tie2 Recognition Deposited 2005-03-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 281–496（216 aa） Fragment：Receptor binding domain (residues 281-496)	Mutation：F469A, Y475A, Y476A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；Ammonium Sulfate and PEG-4000, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.25 Å R-free 0.278
1Z3U Structure of the Angiopoietin-2 Recptor Binding Domain and Identification of Surfaces Involved in Tie2 Recognition Deposited 2005-03-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 281–496（216 aa） Fragment：Receptor binding domain (residues 281-496)	Mutation：F469A, Y475A, Y476A	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；Ammonium Sulfate and PEG-4000, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.25 Å R-free 0.278
2GY7 Angiopoietin-2/Tie2 Complex Crystal Structure Deposited 2006-05-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 281–495（215 aa） Fragment：Angiopoietin-2 Receptor binding domain (residues 281-495)	Not recorded	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；2.2 M Ammonium Sulfate, 0.1M MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.70 Å R-free 0.317
4JZC Angiopoietin-2 fibrinogen domain TAG mutant Deposited 2013-04-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–496（218 aa） Fragment：fibrinogen-like receptor-binding domain	Mutation：P183T, Q184A, R185G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.0 M Na/K-tartate, 0.1 M Tris, 0.2 M LiSO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.248
4JZC Angiopoietin-2 fibrinogen domain TAG mutant Deposited 2013-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 279–496（218 aa） Fragment：fibrinogen-like receptor-binding domain	Mutation：P183T, Q184A, R185G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.0 M Na/K-tartate, 0.1 M Tris, 0.2 M LiSO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.248
4ZFG Dual-specificity Fab 5A12 in complex with Angiopoietin 2 Deposited 2015-04-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 225–444（220 aa） Fragment：Receptor binding domain, UNP residues 225-444	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；292 K；0.1 M Tris pH 8.5, 0.2 M lithium sulfate, 25% PEG 3350, 3% D(+)-sucrose	Resolution 2.27 Å R-free 0.223
8VGP CryoEM structure of Angiopoietin-2 in complex with engineered conformationally rigid Fab 5A12.6DS Deposited 2023-12-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 225–444（220 aa） Fragment：Receptor binding domain, UNP residues 225-444	Not recorded	CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9HMI Crystal structure of the Calf domains of Integrin Alpha5 in complex with angiopoietin2 peptide Deposited 2024-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 359–366（8 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M ammonium formate; 20% polyethylene glycol 3350 (wt/vol)	Resolution 2.78 Å R-free 0.306

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AGP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–217； UniProt 281–496 Author chain B； PDBConstruct 2–217； UniProt 281–496

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z3s
Deposition date deposition_date	2005-03-14
Structure title title	Angiopoietin-2 Receptor Binding Domain
Keywords keywords	angiogenesis, Tie2 binding, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

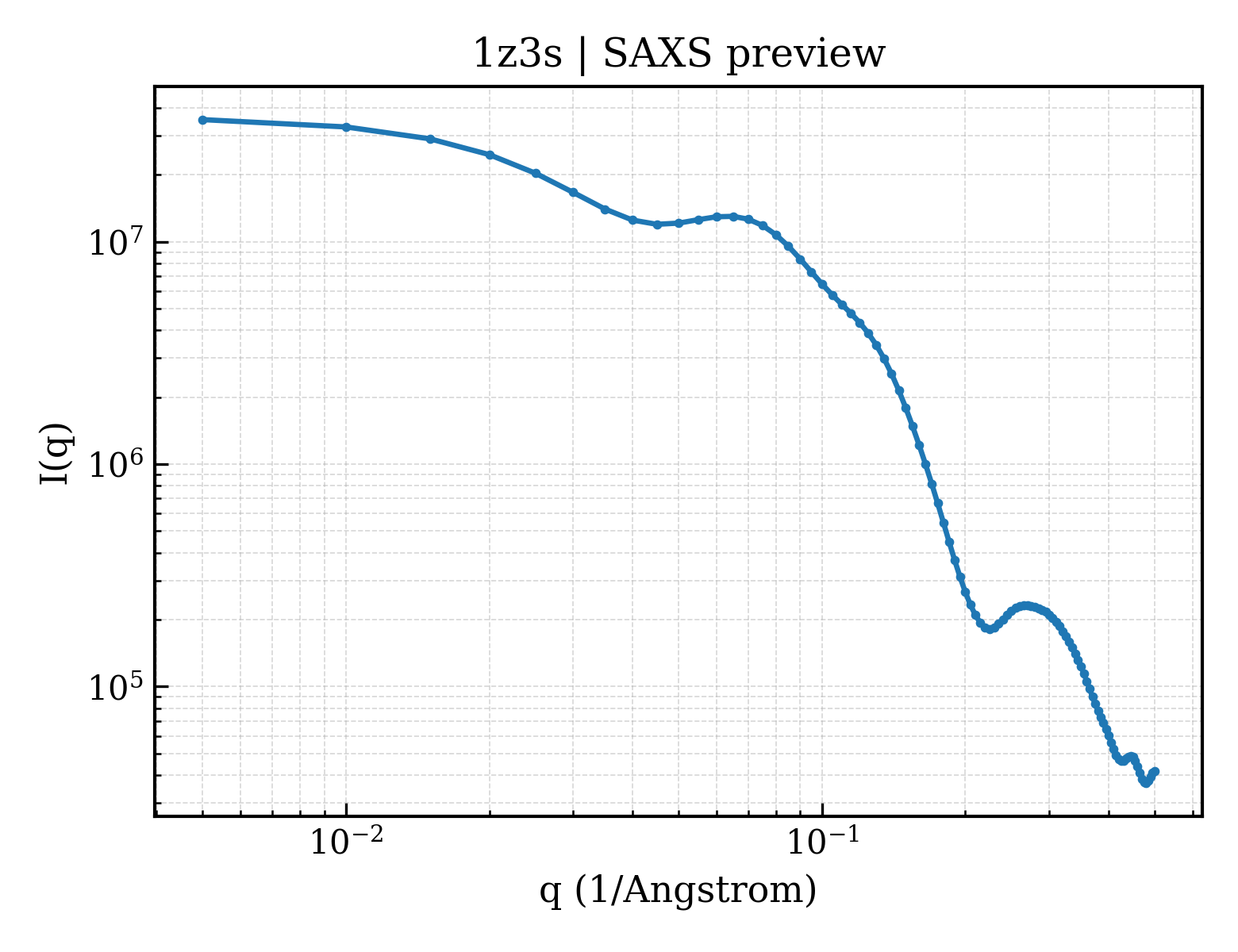

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	54.65 Å
Radius of gyration Rg (electron density) rg_electron	55.15 Å
Forward intensity I(0) i0	36304000.00
Molecular weight molecular_weight	49405.0 kDa
Excluded volume excluded_volume	61127 Å³
Envelope volume envelope_volume	99827 Å³
Hydration-shell volume shell_volume	14753 Å³
Envelope diameter envelope_diameter	157.6 Å
Shell Rg shell_rg	64.60 Å
Envelope Rg envelope_rg	50.70 Å
Shape Rg shape_rg	55.19 Å
Total Rg total_rg	55.26 Å
Total atoms total_atoms	3480
Residues n_residues	432
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

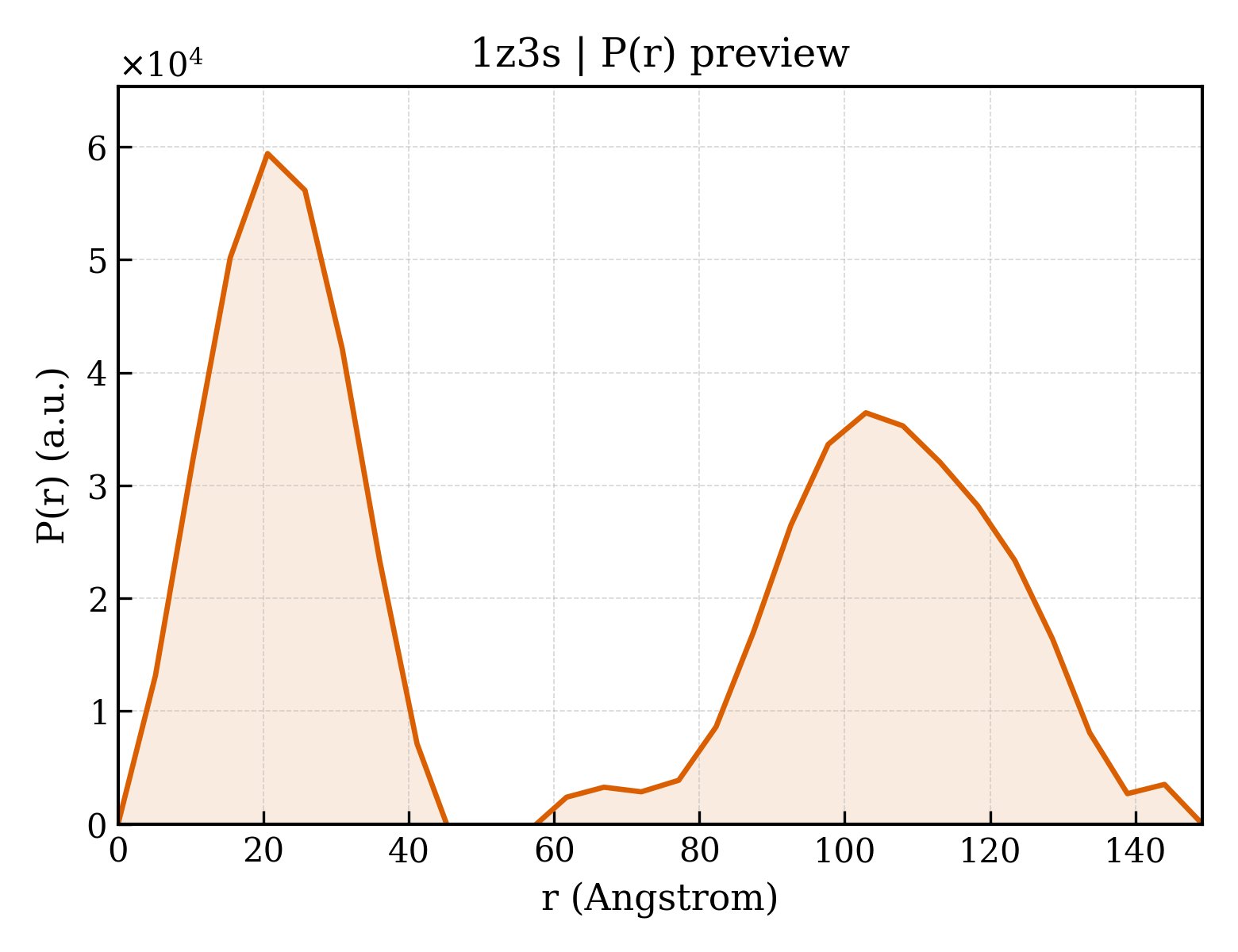

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	149.2 Å
Rg (real space) rg_real	55.34 Å
Rg uncertainty (real space) rg_real_error	2.04 Å
I(0) (real space) i0_real	3.6300e+07
I(0) uncertainty (real space) i0_real_error	6.8440e+05
Rg (reciprocal space) rg_reciprocal	53.96 Å
I(0) (reciprocal space) i0_reciprocal	36230000.0000
Solution quality estimate total_estimate	0.5388
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	20.6 Å
Skewness Skewness skewness	0.110
Kurtosis Kurtosis kurtosis	-1.705
Angular range angular_range	— – 0.1450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	493900.0000
Real-space data points n_real_points	30
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Angiopoietin-2
Molecular weight formula_weight	24899.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3697

EFRDCAEVFKSGHTTNGIYTLTFPNSTEEIKAYCDMEAGGGGWTIIQRREDGSVDFQRTWKEYKVGFGNPSGEYWLGNEFVSQLTNQQRYVLKIHLKDWEGNEAYSLYEHFYLSSEELNYRIHLKGLTGTAGKISSISQPGNDFSTKDGDNDKCICKCSQMLTGGWWFDACGPSNLNGMYYPQRQNTNKFNGIKWYYWKGSGYSLKATTMMIRPADF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	217

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1z3sa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d1z3sa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1z3sb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d1z3sb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1z3sA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1z3sA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	1z3sB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	1z3sB02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.190 Å
Unit-cell length b length_b	136.448 Å
Unit-cell length c length_c	47.732 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.43 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2294
R_work r_work	0.2294
R_free r_free	0.2873

fit	/app/data/saxs_computation/z3/1z3s/1z3s.fit
pddf	/app/data/pr_computation/z3/1z3s/1z3s.pr.out
profile	/app/data/saxs_computation/z3/1z3s/1z3s.dat
