1z5b
Topoisomerase VI-B, ADP AlF4- bound dimer form

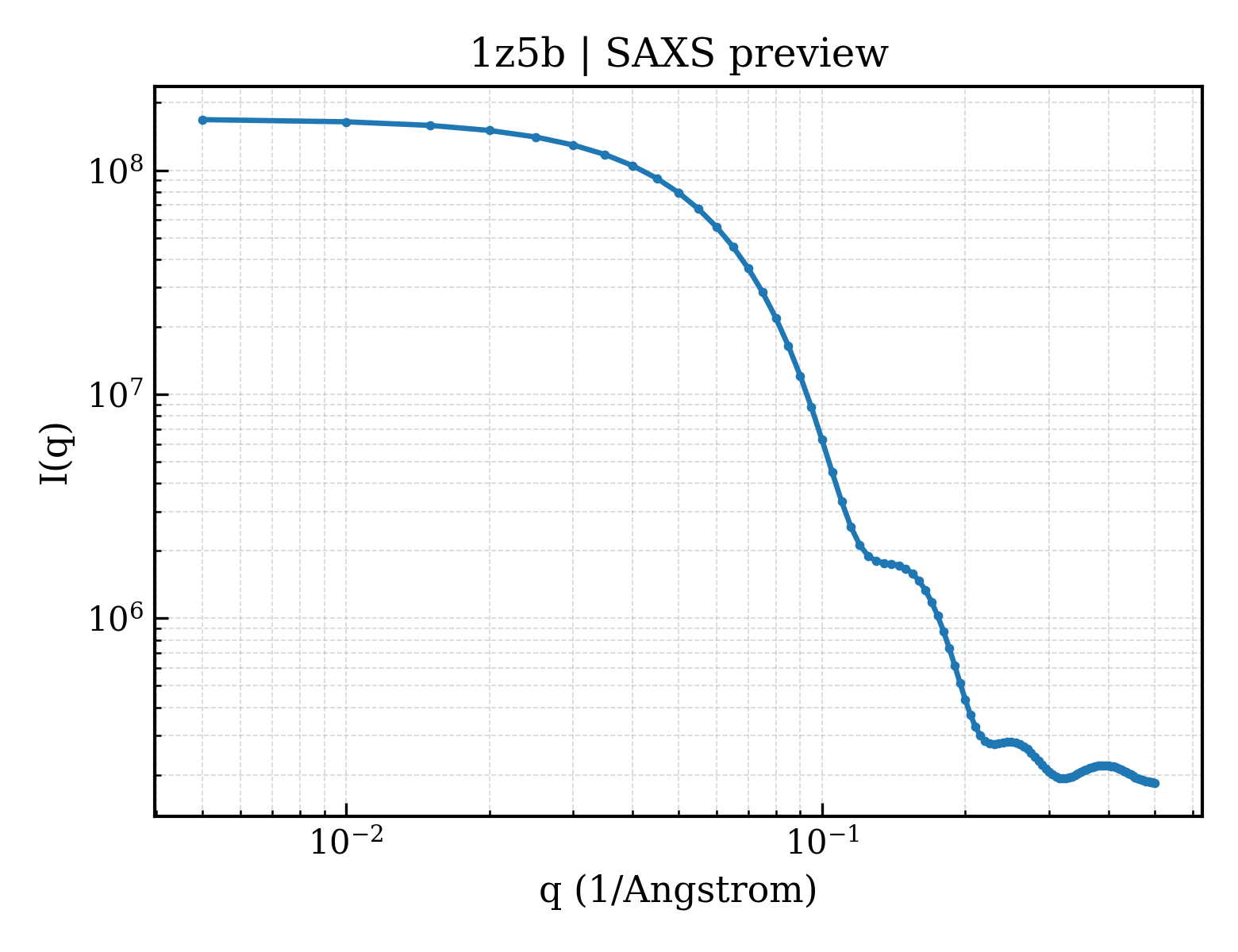

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1z5b |
| 沉积日期 deposition_date | 2005-03-17 |
| 结构标题 title | Topoisomerase VI-B, ADP AlF4- bound dimer form |
| 关键词 keywords | topoisomerase, archaea, ATPase, ISOMERASE; ISOMERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.87 Å |
| 回转半径 Rg (电子) rg_electron | 28.78 Å |
| 零角强度 I(0) i0 | 169340000.00 |
| 分子量 molecular_weight | 106650.0 kDa |
| 排除体积 excluded_volume | 135040 ų |
| 包络体积 envelope_volume | 163000 ų |
| 水化壳体积 shell_volume | 44974 ų |
| 包络直径 envelope_diameter | 102.5 Å |
| 壳层 Rg shell_rg | 37.59 Å |
| 包络 Rg envelope_rg | 29.28 Å |
| 形状 Rg shape_rg | 28.77 Å |
| 总 Rg total_rg | 29.64 Å |
| 总原子数 total_atoms | 7521 |
| 残基数 n_residues | 926 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 96.4 Å |
| Rg (实空间) rg_real | 29.70 Å |
| Rg 误差 (实空间) rg_real_error | 0.51 Å |
| I(0) (实空间) i0_real | 1.6930e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.2320e+06 |
| Rg (倒空间) rg_reciprocal | 29.78 Å |
| I(0) (倒空间) i0_reciprocal | 169300000.0000 |
| 解质量估计 total_estimate | 0.8908 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 38.2 Å |
| 偏度 Skewness skewness | 0.159 |
| 峰度 Kurtosis kurtosis | -0.421 |
| 角度范围 angular_range | — – 0.2650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 63850000.0000 |
| 实空间数据点数 n_real_points | 54 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.995 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1z5ba1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.3 — Topoisomerase VI-B subunit middle domain |
| 结构域编号 domain_id | d1z5ba2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.14 — Ribosomal protein S5 domain 2-like |
| 超家族 Superfamily superfamily | d.14.1 — Ribosomal protein S5 domain 2-like |
| 家族 Family family | d.14.1.3 — DNA gyrase/MutL, second domain |
| 结构域编号 domain_id | d1z5ba3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.122 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase |
| 超家族 Superfamily superfamily | d.122.1 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase |
| 家族 Family family | d.122.1.2 — DNA gyrase/MutL, N-terminal domain |
| 结构域编号 domain_id | d1z5bb1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.3 — Topoisomerase VI-B subunit middle domain |
| 结构域编号 domain_id | d1z5bb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.14 — Ribosomal protein S5 domain 2-like |
| 超家族 Superfamily superfamily | d.14.1 — Ribosomal protein S5 domain 2-like |
| 家族 Family family | d.14.1.3 — DNA gyrase/MutL, second domain |
| 结构域编号 domain_id | d1z5bb3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.122 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase |
| 超家族 Superfamily superfamily | d.122.1 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase |
| 家族 Family family | d.122.1.2 — DNA gyrase/MutL, N-terminal domain |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1z5bA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 565 — Heat Shock Protein 90 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histidine kinase-like ATPase, C-terminal domain |
| 结构域编号 domain_id | 1z5bA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1z5bA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 230 — Ribosomal Protein S5; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
| 结构域编号 domain_id | 1z5bB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 565 — Heat Shock Protein 90 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histidine kinase-like ATPase, C-terminal domain |
| 结构域编号 domain_id | 1z5bB02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1z5bB03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 230 — Ribosomal Protein S5; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
