SAXSdb — 1z9b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor IF-2

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 515–635	Fragment：Bst IF2-C1 subdomain	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.4；307.4 K；Ionic strength (raw mmCIF value) 200 mM KCl；Pressure ambient NMR sample composition：0.5 mM Bst IF2-C1 U-15N & U-13C; 20 mM KPi; 200 mM KCl, protease inhibitor mix, NaN3 \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1Z9B	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D1N SOLUTION STRUCTURE OF THE FMET-TRNAFMET BINDING DOMAIN OF BECILLUS STEAROTHERMOPHILLUS TRANSLATION INITIATION FACTOR IF2 Deposited 1999-09-20	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 643–741（99 aa） Fragment：C2 TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
2LKC Free B.st IF2-G2 Deposited 2011-10-10	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 241–414（174 aa） Fragment：G-domain region residues 241-414	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；315 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 0.4-0.9 mM [U-100% 13C; U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LKD IF2-G2 GDP complex Deposited 2011-10-10	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 241–414（174 aa） Fragment：G-domain region residues 241-414	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1	SOLUTION NMR NMR measurement conditions pH 6.5；315 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 0.4-0.9 mM [U-100% 13C; U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2NBG Structure of the Geobacillus stearothermophilus IF2 G3-subdomain Deposited 2016-02-11	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 394–514（121 aa） Fragment：residues 394-514	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.15 mM [U-100% 13C; U-100% 15N] IF2-G3, 50 mM sodium phosphate, 100 mM potassium chloride, 2 % glycerol, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IF2_BACST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–135； UniProt 515–635

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z9b
Deposition date deposition_date	2005-04-01
Structure title title	Solution structure of the C1-subdomain of Bacillus stearothermophilus translation initiation factor IF2
Keywords keywords	protein synthesis translation intiation IF2 fMet-tRNA NMR structure, TRANSLATION; TRANSLATION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.68 Å
Radius of gyration Rg (electron density) rg_electron	29.22 Å
Forward intensity I(0) i0	1253710000.00
Molecular weight molecular_weight	295180.0 kDa
Excluded volume excluded_volume	369930 Å³
Envelope volume envelope_volume	216730 Å³
Hydration-shell volume shell_volume	46527 Å³
Envelope diameter envelope_diameter	138.3 Å
Shell Rg shell_rg	42.57 Å
Envelope Rg envelope_rg	42.13 Å
Shape Rg shape_rg	29.24 Å
Total Rg total_rg	29.54 Å
Total atoms total_atoms	41760
Residues n_residues	2700
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	125.0 Å
Rg (real space) rg_real	30.45 Å
Rg uncertainty (real space) rg_real_error	2.41 Å
I(0) (real space) i0_real	1.2540e+09
I(0) uncertainty (real space) i0_real_error	2.3750e+07
Rg (reciprocal space) rg_reciprocal	30.12 Å
I(0) (reciprocal space) i0_reciprocal	1253000000.0000
Solution quality estimate total_estimate	0.6251
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.9 Å
Skewness Skewness skewness	0.682
Kurtosis Kurtosis kurtosis	-0.375
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	566400.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.040; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	1z9bA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10050 — Translation initiation factor IF- 2, domain 3

▶

8. Citations (1)

▶

Description description	Translation initiation factor IF-2
Molecular weight formula_weight	14815.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	41760

来源生物 organism	Geobacillus stearothermophilus
NCBI Class编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/z9/1z9b/1z9b.fit
pddf	/app/data/pr_computation/z9/1z9b/1z9b.pr.out
profile	/app/data/saxs_computation/z9/1z9b/1z9b.dat

Solution structure of the C1-subdomain of Bacillus stearothermophilus translation initiation factor IF2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor IF-2

State in the Current Structure

Other States of the Same Protein in the Database

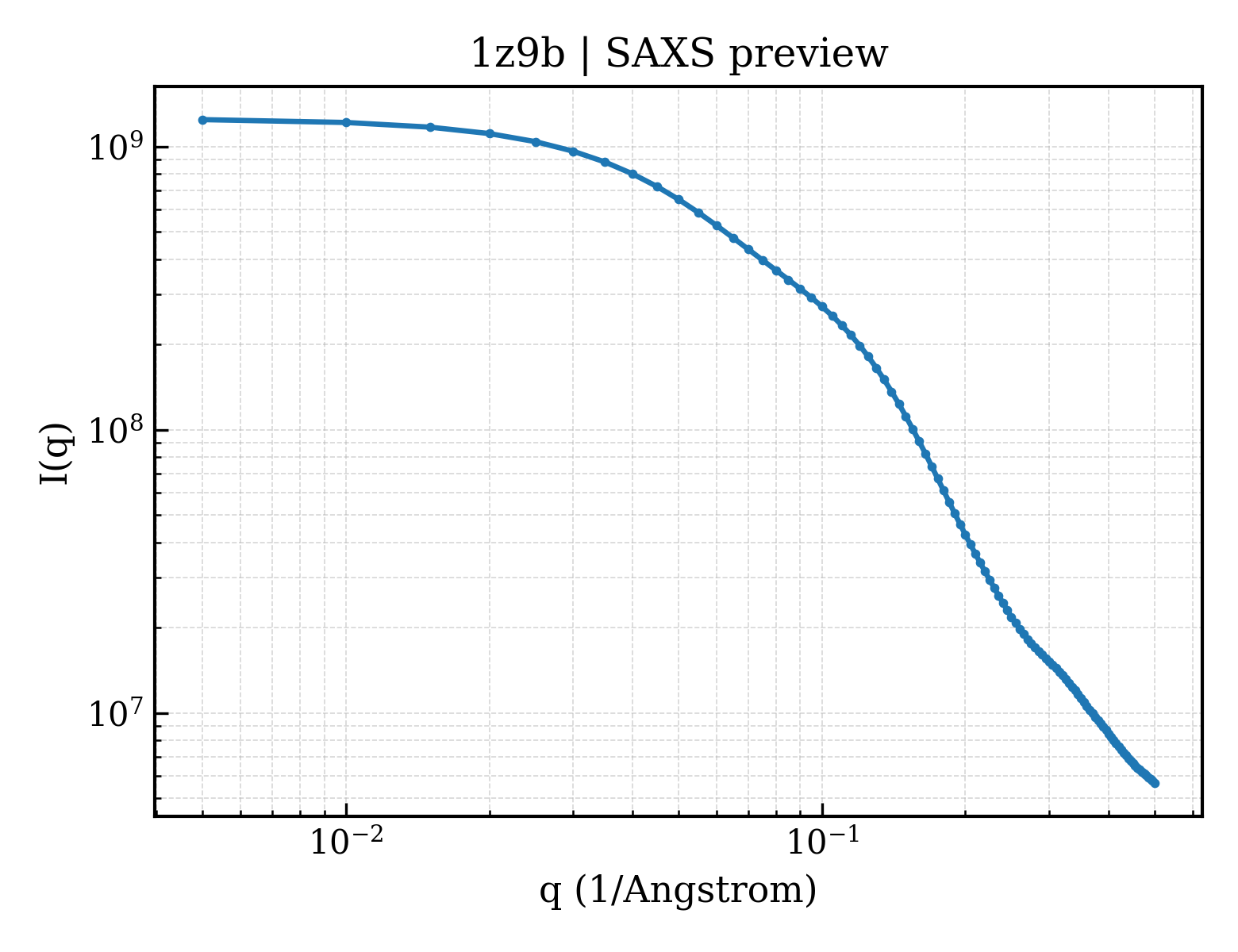

SAXS scattering curve SAXS Profile

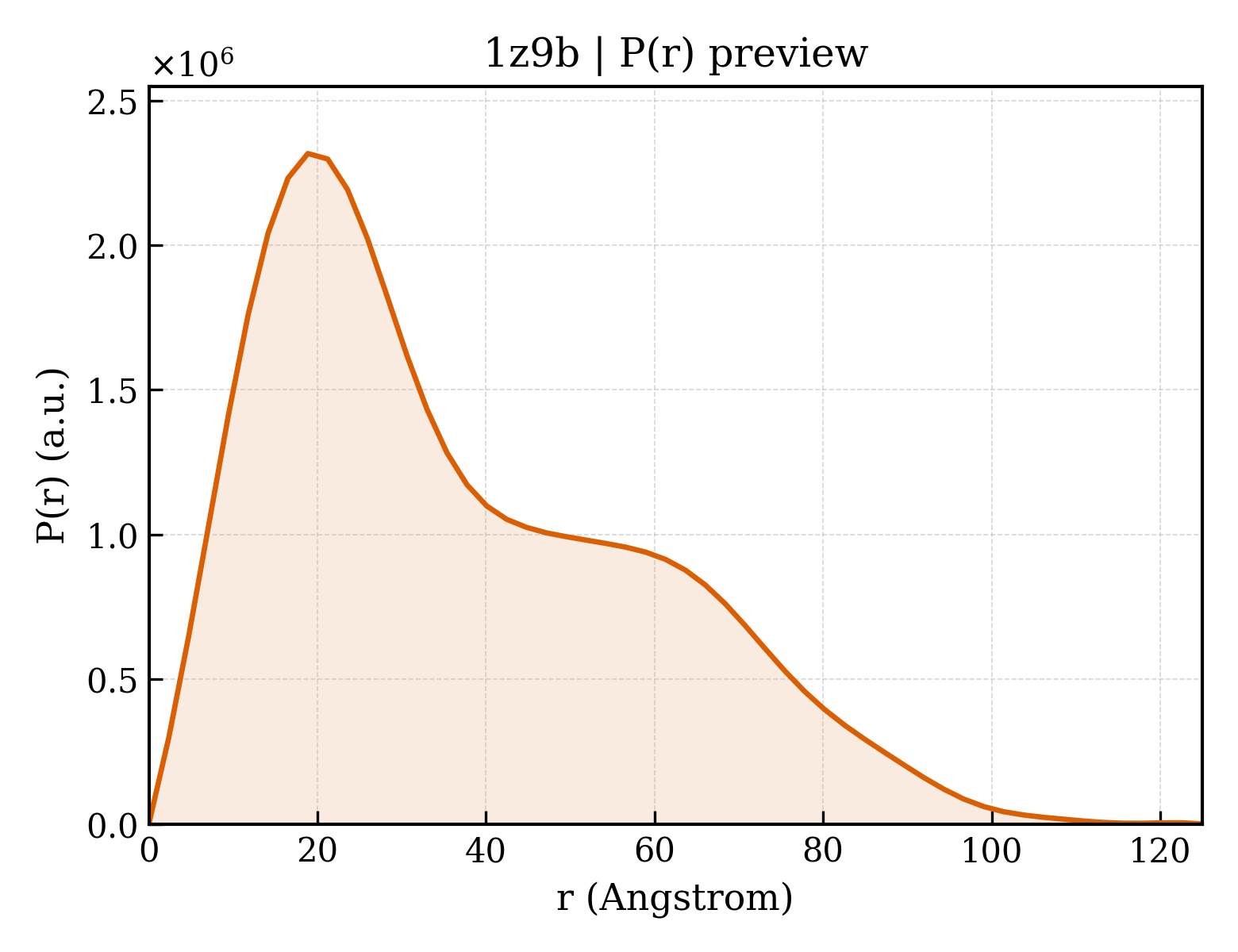

P(r) Distance Distribution P(r) Distribution
