SAXSdb — 1zan

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fab AD11 Light Chain

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Fab AD11 Heavy Chain × 1 （P84751） CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q4KM66_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 1–214； UniProt 21–234

Fab AD11 Heavy Chain

Rattus norvegicus

UniProt P84751

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Fab AD11 Light Chain × 1 （Q4KM66） CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HVCM5_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 2–222； UniProt 2–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zan
Deposition date deposition_date	2005-04-06
Structure title title	Crystal structure of anti-NGF AD11 Fab
Keywords keywords	Immunoglobulin, Fab, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zan__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

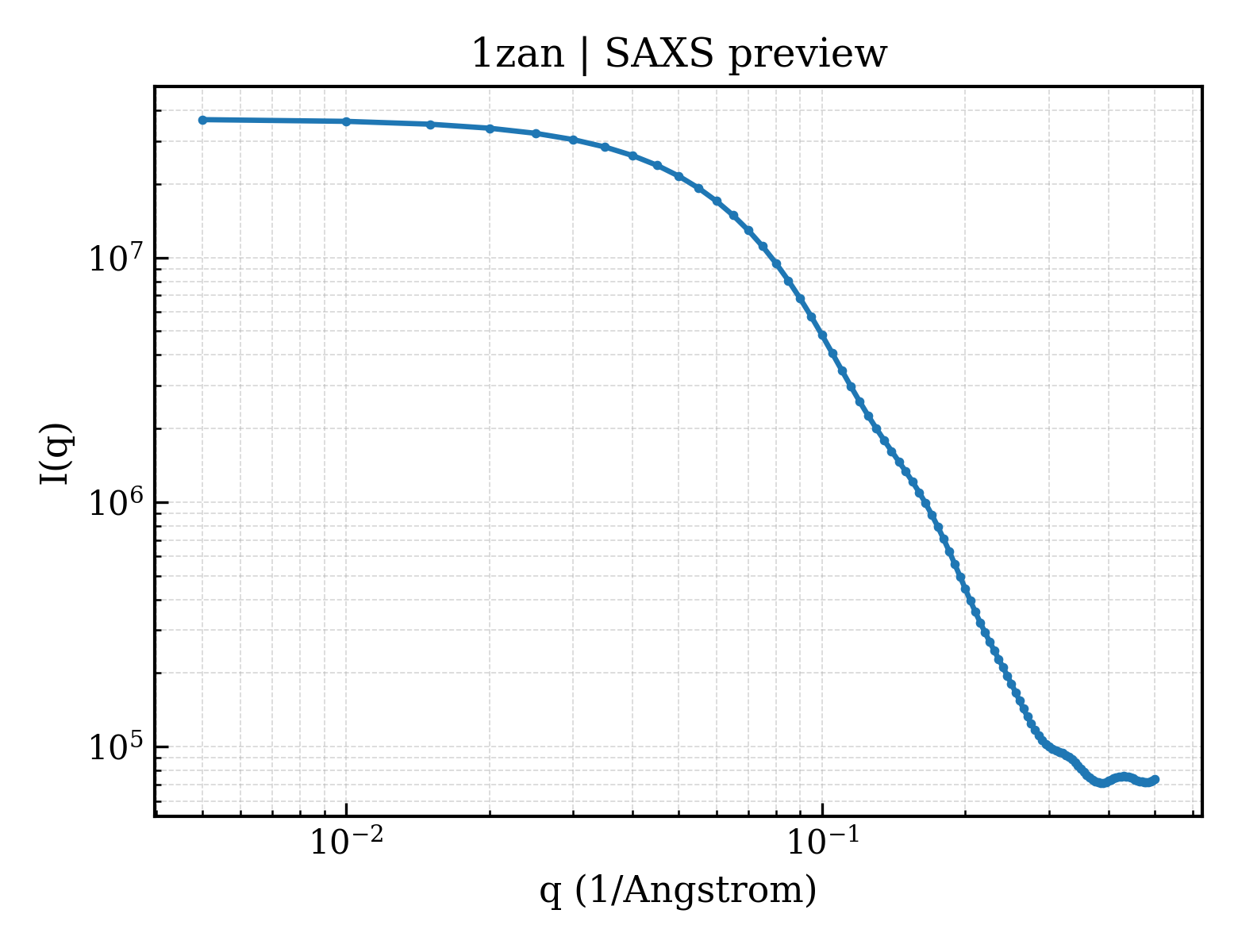

1zan__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

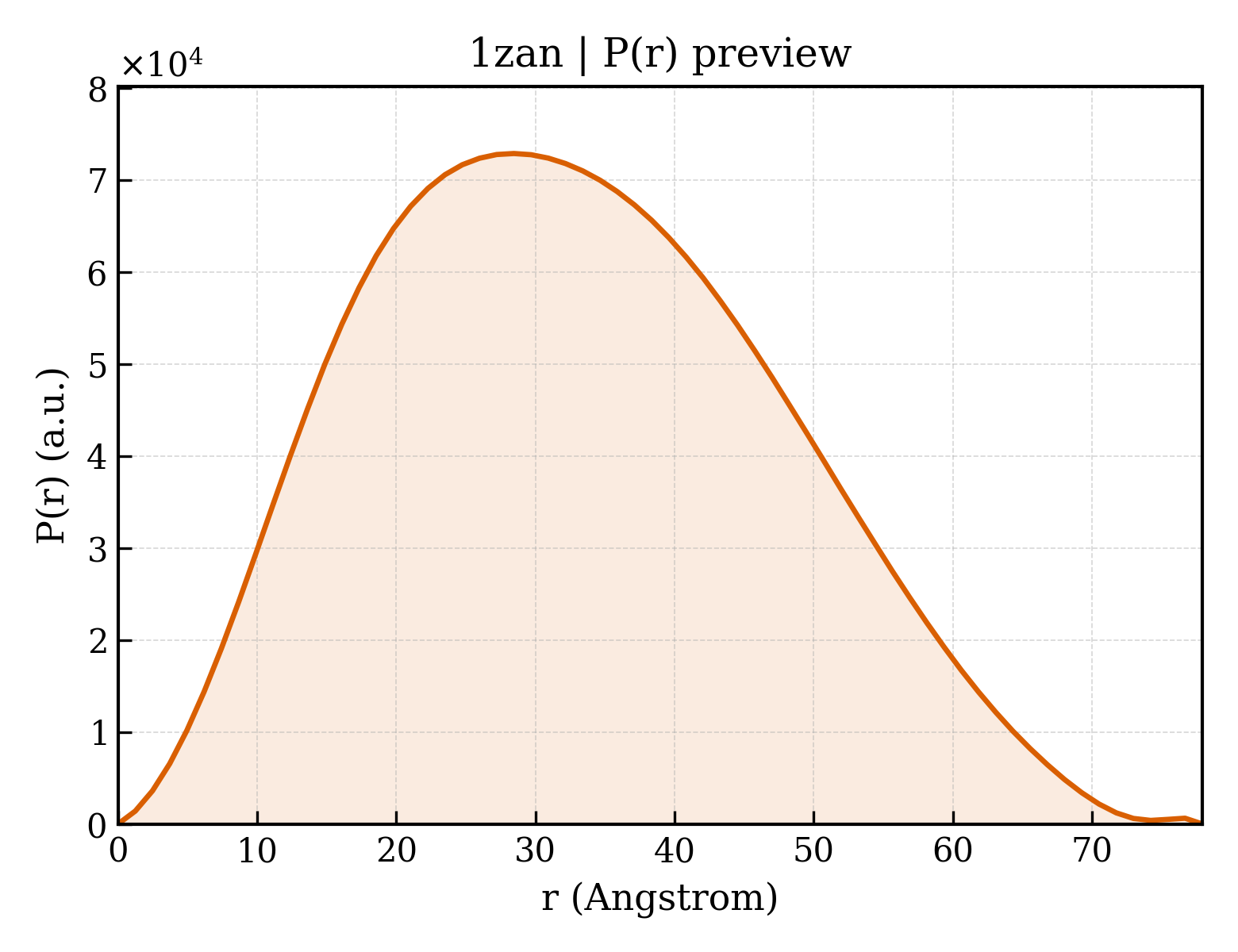

1zan__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.37 Å
Rg (electron density)	24.44 Å
Total Rg	25.21 Å
Atom count	3227
Residues	429
Excluded volume	56980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zan__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fab AD11 Light Chain
Molecular weight formula_weight	23340.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3631

DIQMTQSPASLSASLGETVTIECRASEDIYNALAWYQQKPGKSPQLLIYNTDTLHTGVPSRFSGSGSGTQYSLKINSLQSEDVASYFCQHYFGYPRTFGGGTKLELKRADAAPTVSIFPPSSEQLASGGASVVCLLNNFYPKDISVKWKIDGSERQNGVLDSVTDQDSKDSTYSMSSTLTLTKAEYESHNSYTCEVTHKTSTSPVVKSFNRGEC

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Rattus norvegicus

Entity 2 Entity 2 polymer

Description description	Fab AD11 Heavy Chain
Molecular weight formula_weight	23549.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLKESGPGLVQPSQTLSLTCTVSGFSLTNNNVNWVRQATGRGLEWMGGVWAGGATDYNSALKSRLTITRDTSKSQVFLKMHSLQSEDTATYYCARDGGYSSSTLYAMDAWGQGTTVTVSSASTTAPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLASGVHTFPAVLQSGLYTLSSSVTVPASPWASEAVTCNVAHPASSTKVDKKIVPRDC

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Rattus norvegicus

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	404

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1zanh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d1zanl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d1zanl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	1zanH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1zanH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1zanL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1zanL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	114.801 Å
Unit-cell length b length_b	69.354 Å
Unit-cell length c length_c	64.104 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.02 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	17.000 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2420

Crystal structure of anti-NGF AD11 Fab
