SAXSdb — 1zh7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Orphan nuclear receptor NR5A2

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	nuclear receptor subfamily 0, group B, member 2 × 1 （P97947） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	nuclear receptor subfamily 0, group B, member 2 × 1 （P97947） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NR5A2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–243； UniProt 318–560 Author chain B； PDBConstruct 1–243； UniProt 318–560

nuclear receptor subfamily 0, group B, member 2

OrganismNot specified

UniProt P97947

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Orphan nuclear receptor NR5A2 × 1 （P45448） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Orphan nuclear receptor NR5A2 × 1 （P45448） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P97947_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–11； UniProt 16–26 Author chain D； PDBConstruct 1–11； UniProt 16–26

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zh7
Deposition date deposition_date	2005-04-22
Structure title title	Structural and Biochemical Basis for Selective Repression of the Orphan Nuclear Receptor LRH-1 by SHP
Keywords keywords	protein-peptide complex, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zh7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

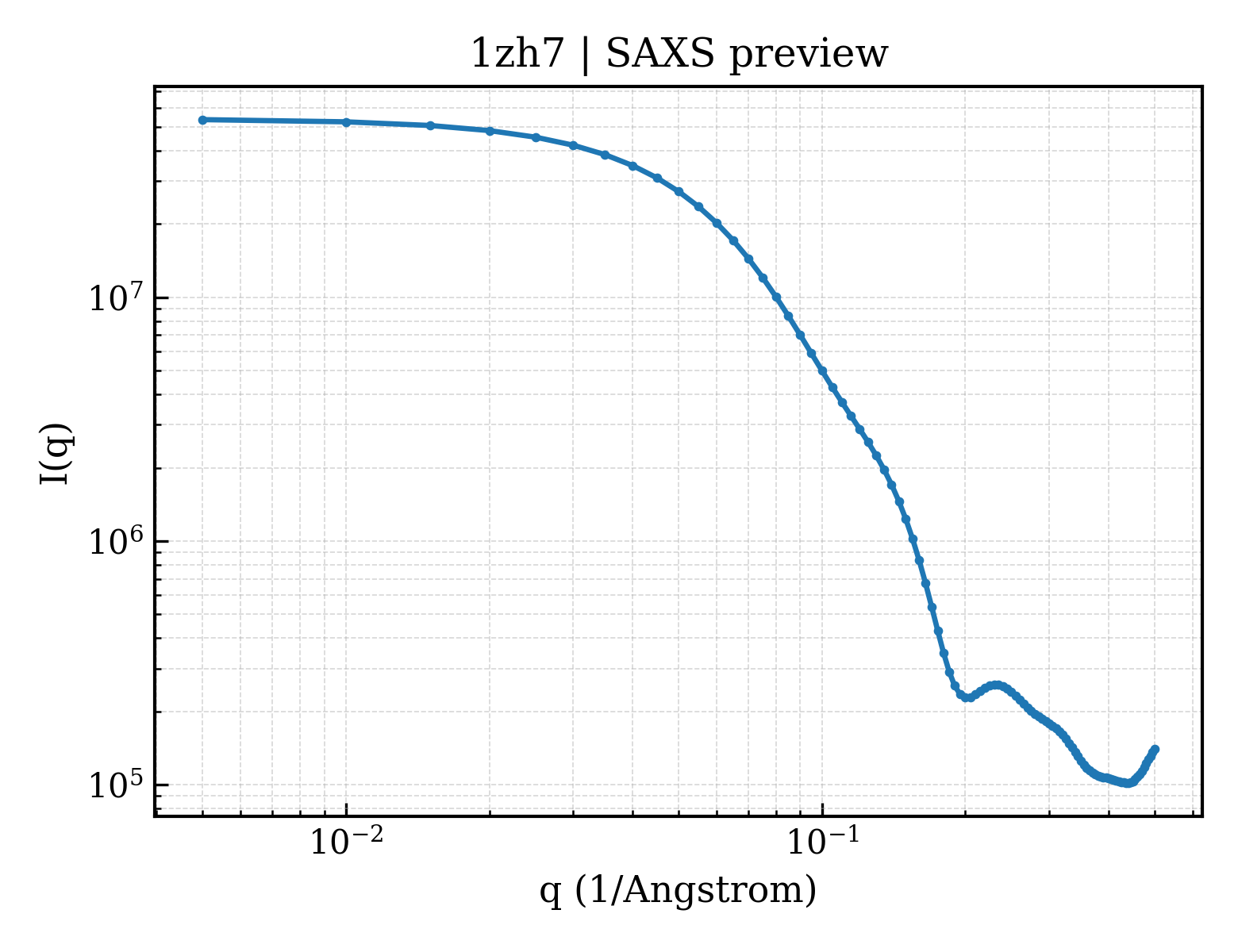

1zh7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

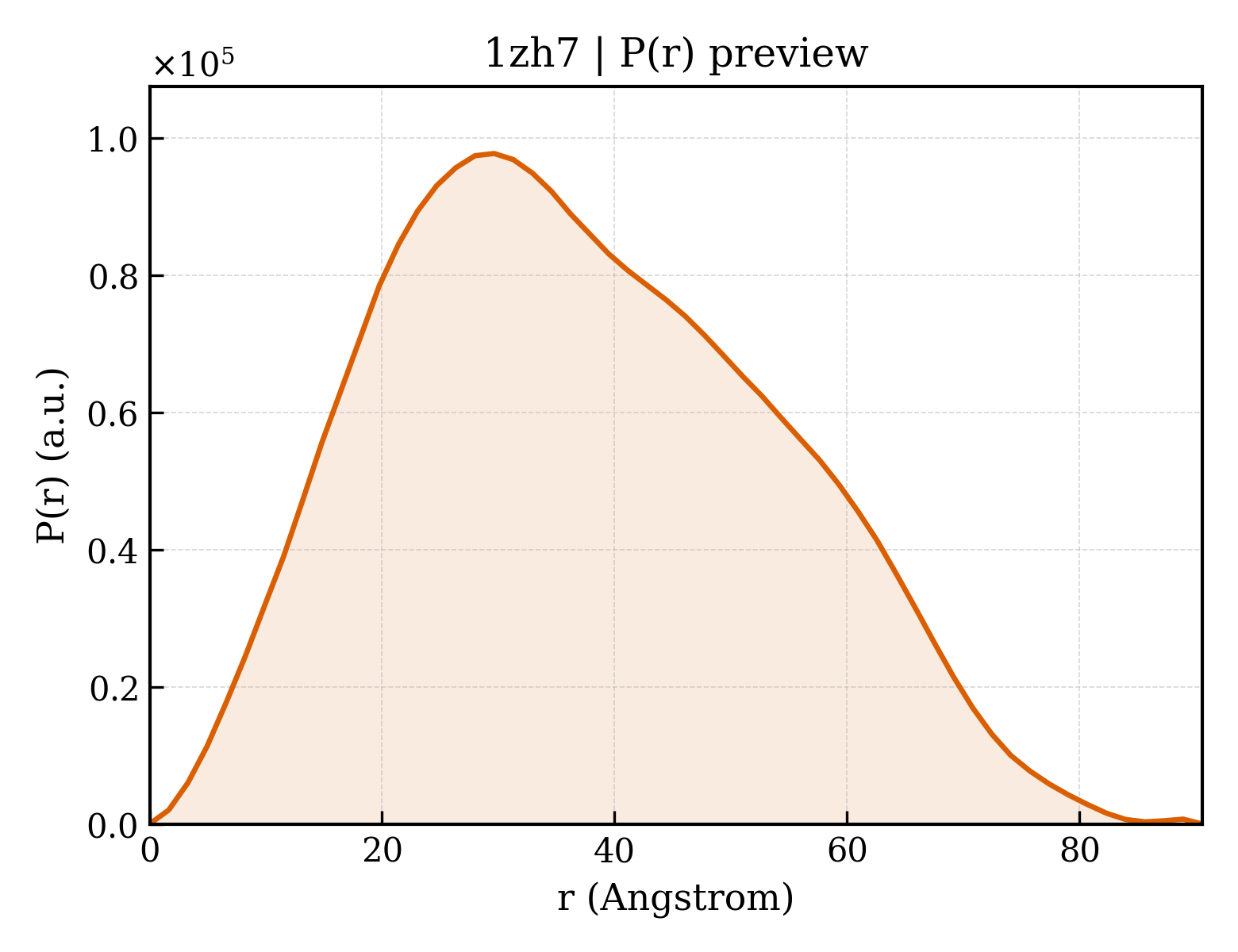

1zh7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.90 Å
Rg (electron density)	18.46 Å
Total Rg	19.42 Å
Atom count	2072
Residues	254
Excluded volume	37210 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zh7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zh7__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Orphan nuclear receptor NR5A2
Molecular weight formula_weight	28204.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4315

ASIPHLILELLKCEPDEPQVQAKIMAYLQQEQSNRNRQEKLSAFGLLCKMADQTLFSIVEWARSSIFFRELKVDDQMKLLQNCWSELLILDHIYRQVAHGKEGTIFLVTGEHVDYSTIISHTEVAFNNLLSLAQELVVRLRSLQFDQREFVCLKFLVLFSSDVKNLENLQLVEGVQEQVNAALLDYTVCNYPQQTEKFGQLLLRLPEIRAISKQAEDYLYYKHVNGDVPYNNLLIEMLHAKRA

Entity 2 Entity 2 polymer

Description description	nuclear receptor subfamily 0, group B, member 2
Molecular weight formula_weight	1245.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

SHPTILYTLLS

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	171

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1zh7a_
Class class	a — All alpha proteins
Fold Fold fold	a.123 — Nuclear receptor ligand-binding domain
Superfamily Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
Family Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

Domain ID domain_id	d1zh7b_
Class class	a — All alpha proteins
Fold Fold fold	a.123 — Nuclear receptor ligand-binding domain
Superfamily Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
Family Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

CATH v4.4 (2 domains)

Domain ID domain_id	1zh7A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

Domain ID domain_id	1zh7B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

▶

Unit-cell length a length_a	113.765 Å
Unit-cell length b length_b	35.126 Å
Unit-cell length c length_c	134.205 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.61 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.200 Å
R factor r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2850
