SAXSdb — 1zl5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

botulinum neurotoxin type E

Clostridium botulinum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 8 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 16 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BXE_CLOBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–420； UniProt 2–421 Author chain B； PDBConstruct 1–420； UniProt 2–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zl5
Deposition date deposition_date	2005-05-05
Structure title title	Crystal structure of Glu335Gln mutant of Clostridium botulinum neurotoxin E catalytic domain
Keywords keywords	botulinum neurotoxin E, catalytic domain, light chain, Glu335Gln mutant, apoenzyme, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zl5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zl5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

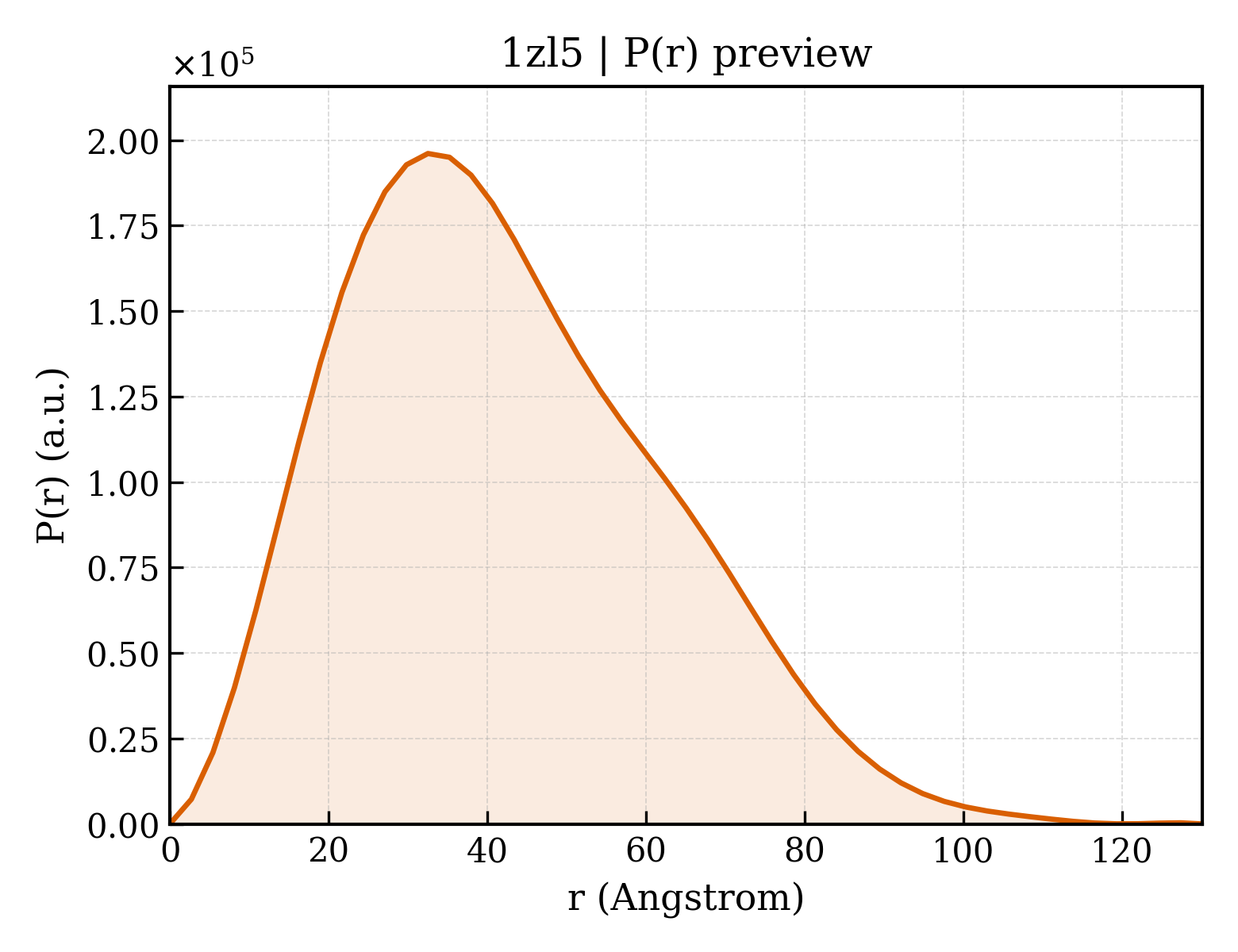

1zl5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.72 Å
Rg (electron density)	32.25 Å
Total Rg	32.86 Å
Atom count	6325
Residues	787
Excluded volume	112770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zl5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zl5__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	botulinum neurotoxin type E
Molecular weight formula_weight	47686.8 kDa
EC 编号 ec_number	3.4.24.69
Mutation mutation	E335Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6575

PKINSFNYNDPVNDRTILYIKPGGCQEFYKSFNIMKNIWIIPERNVIGTTPQDFHPPTSLKNGDSSYYDPNYLQSDEEKDRFLKIVTKIFNRINNNLSGGILLEELSKANPYLGNDNTPDNQFHIGDASAVEIKFSNGSQDILLPNVIIMGAEPDLFETNSSNISLRNNYMPSNHGFGSIAIVTFSPEYSFRFNDNSMNEFIQDPALTLMHELIHSLHGLYGAKGITTKYTITQKQNPLITNIRGTNIEEFLTFGGTDLNIITSAQSNDIYTNLLADYKKIASKLSKVQVSNPLLNPYKDVFEAKYGLDKDASGIYSVNINKFNDIFKKLYSFTQFDLATKFQVKCRQTYIGQYKYFKLSNLLNDSIYNISEGYNINNLKVNFRGQNANLNPRIITPITGRGLVKKIIRFCKNIVSVKGI

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	250

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1zl5a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.7 — Clostridium neurotoxins, catalytic domain

Domain ID domain_id	d1zl5b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.7 — Clostridium neurotoxins, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1zl5A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1240 — Zincin-like
Homologous superfamily homologous superfamily	10 — Metalloproteases ("zincins"), catalytic domain like

Domain ID domain_id	1zl5B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1240 — Zincin-like
Homologous superfamily homologous superfamily	10 — Metalloproteases ("zincins"), catalytic domain like

▶

Unit-cell length a length_a	88.950 Å
Unit-cell length b length_b	144.573 Å
Unit-cell length c length_c	83.429 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	46.550 Å
R factor r_factor	—
R_work r_work	0.2090
R_free r_free	0.2710

Crystal structure of Glu335Gln mutant of Clostridium botulinum neurotoxin E catalytic domain
